90HP TD3S Farm Tractor
  • 90HP TD3S Farm Tractor90HP TD3S Farm Tractor

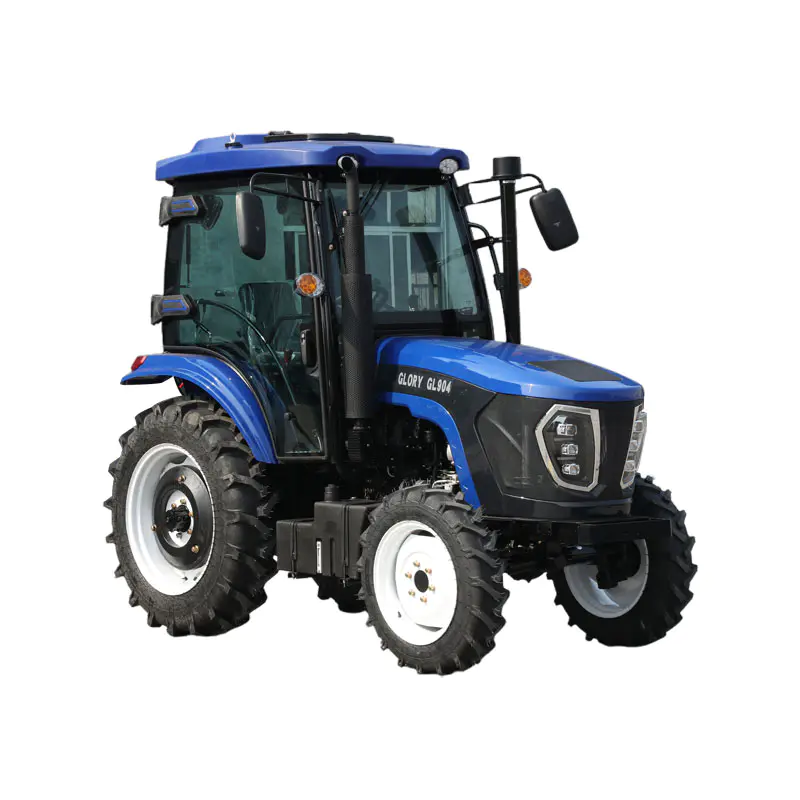

90HP TD3S Farm Tractor

GLORY is the China factory of 90HP TD3S Farm Tractor with attachments. Glory organization provides authentic replacement components and specialized attachment packages with full technical support services.

The 90HP TD3S Farm Tractor , tractor have high horsepower ,can be used for farm,garden ,orchard,dry field ,paddy field .The 90HP TD3S farm tractor have selling for many years and very popular in the market .As one of the leading manufacturers of agricultural machinery, Glory offers a wide range of tractors that will help you master the challenges of everyday life. Whether seeding, tilling or transporting, you will experience a unique driving experience with the 90HP TD3S farm tractor.


Product Advantage

1.Engine : Weichai Huafeng, Laidong, Changchai, Yunnei and other well-known brands.

High horse power, low fuel consumption, reliable performance ,long lasting durability ,comprehensive after sale services.

2.Axle: Patented axle.

Made of high -strength steel ,enhanced chassis with strong load bearing capacity ,key components adopted imported bearings ,which operate smoothly and reliably,adjustable suspension system to enhance driving comfort.

Chassis

3.Independently assemble the chassis to control the quality of the main parts.

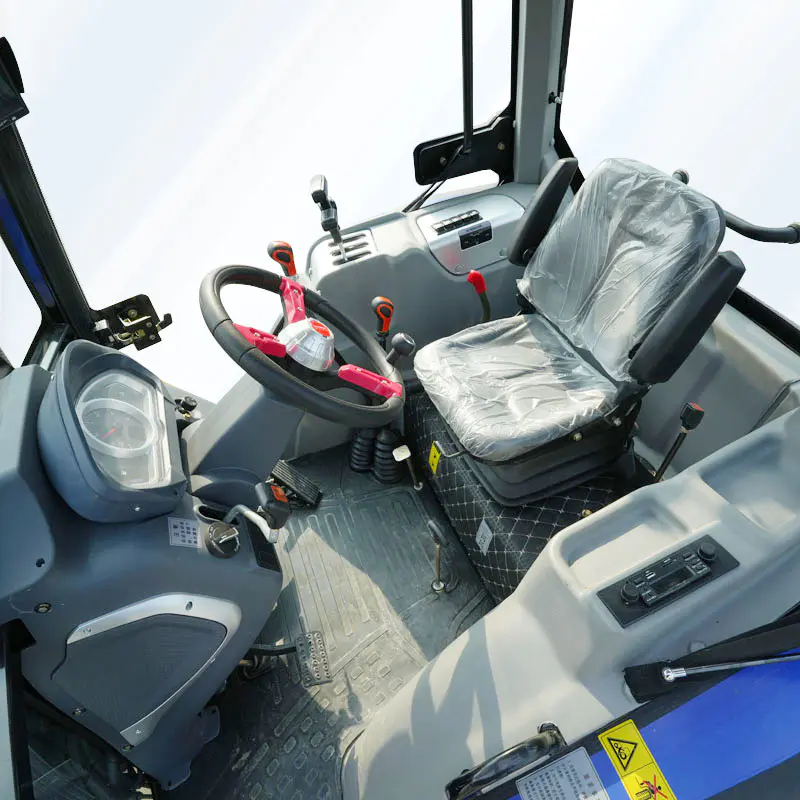

4.Cab: Electrophoretic paint

Rustproof, sturdy and durable.

8+2, 8+8, 12+8, 12+12 are available.

5.Radiator: Large capacity radiator with high heat dissipation efficiency.

6.Tank: Made of high-quality materials, leak proof, large capacity, extending battery life.


Product Parameters

90HP TD3S Farm Tractor
Product model GL904-TD3S
Overall dimensions (mm) 4030×1750×2700
Wheelbase (mm) 2050
Minimum usable mass (kg) 4412(safety rack)/4712(cab)
Minimum ground clearance (mm) 380
Engine emissions National Second Engine
Engine brand Huafeng4105T
Engine type Inline 4 cylinder
Engine calibration power (KW) 66.2
Engine calibration speed (r/min) 2200
Clutch type 12 inch Double acting clutch
Number of gears in the gearbox 12+12
Axle TD3S
Tire specifications 12.4-24/16.9-34
Power output speed (r/min) 760/850
Hydraulic lifting system type Strong pressure dual oil cylinder
Maximum lifting force (KN) ≥15.9
Traction force (KN) ≥21.17


90hp Td3s Farm Tractor90hp Td3s Farm Tractor



Hot Tags: 90HP TD3S farm tractor, China farm machinery, GLORY supplier, heavy cultivation equipment
