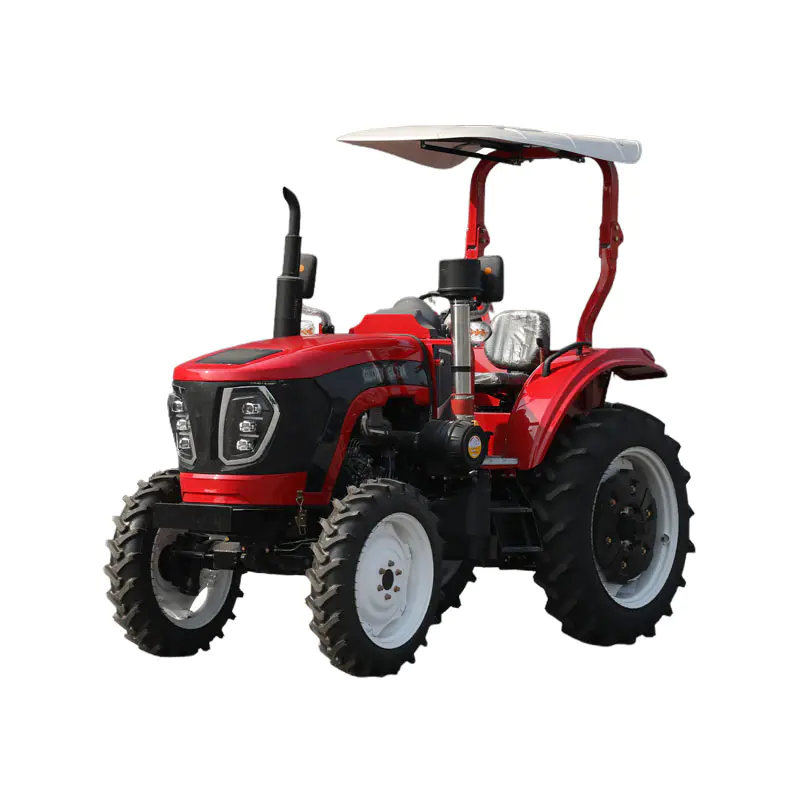

70HP TE Farm Tractor
  • 70HP TE Farm Tractor70HP TE Farm Tractor

70HP TE Farm Tractor

GLORY is the China factory of The 70HP TE Farm Tractor with attachments. With 5 workshops and advanced processing and assembly lines, We have a highly professional team offering you integrated solutions.GLORY also supply spare parts and attachments supports.

The 70HP TE Farm Tractor , tractor is 4wd wheel tractors with high power ,low fuel consumption .We are manufacturer of 50HP 70HP 90 HP 100HP 120HP 160HP 200HP 260HP farm agricultural tractor 4WD wheel tractors, meeting the demands of high-intensity operations.The 70HP TE Farm Tractor can be used in Garden ,Farm,Dry Field ,Paddy Field and so on .A comprehensive after-sales service system ensures that users have no worries.


Product Advantage

1.Engine : Weichai Huafeng, Laidong, Changchai, Yunnei and other well-known brands.

High horse power, low fuel consumption, reliable performance ,long lasting durability ,comprehensive after sale services.

2.Axle: Patented axle.

Made of high -strength steel ,enhanced chassis with strong load bearing capacity ,key components adopted imported bearings ,which operate smoothly and reliably,adjustable suspension system to enhance driving comfort.

Chassis

3.Independently assemble the chassis to control the quality of the main parts.

4.Cab: Electrophoretic paint

Rustproof, sturdy and durable.

8+2, 8+8, 12+8, 12+12 are available.

5.Radiator: Large capacity radiator with high heat dissipation efficiency.

6.Tank: Made of high-quality materials, leak proof, large capacity, extending battery life.


Product Parameters

70HP TE Farm Tractor
Product model GL704
Overall dimensions (mm) 3740×1420×2300
Wheelbase (mm) 1910
Minimum usable mass (kg) 1844(safety rack)/1994(cab)
Minimum ground clearance (mm) 350
Engine emissions National Second Engine
Engine brand Laidong4102
Engine type Inline 4 cylinder
Engine calibration power (KW) 51.5
Engine calibration speed (r/min) 2400
Clutch type 10 inch Single acting clutch, dry clutch
Number of gears in the gearbox 8+8(optional8+2)
Axle TE
Tire specifications 7.50-16/11.2-28
Power output speed (r/min) 540/720
Hydraulic lifting system type Strong pressure dual oil cylinder
Maximum lifting force (KN) ≥12.36
Traction force (KN) ≥14.44


70HP TE Farm Tractor70HP TE Farm Tractor



Hot Tags: 70HP TE Farm tractor manufacturer, agricultural machinery supplier, China tractor factory, GLORY farm equipment
