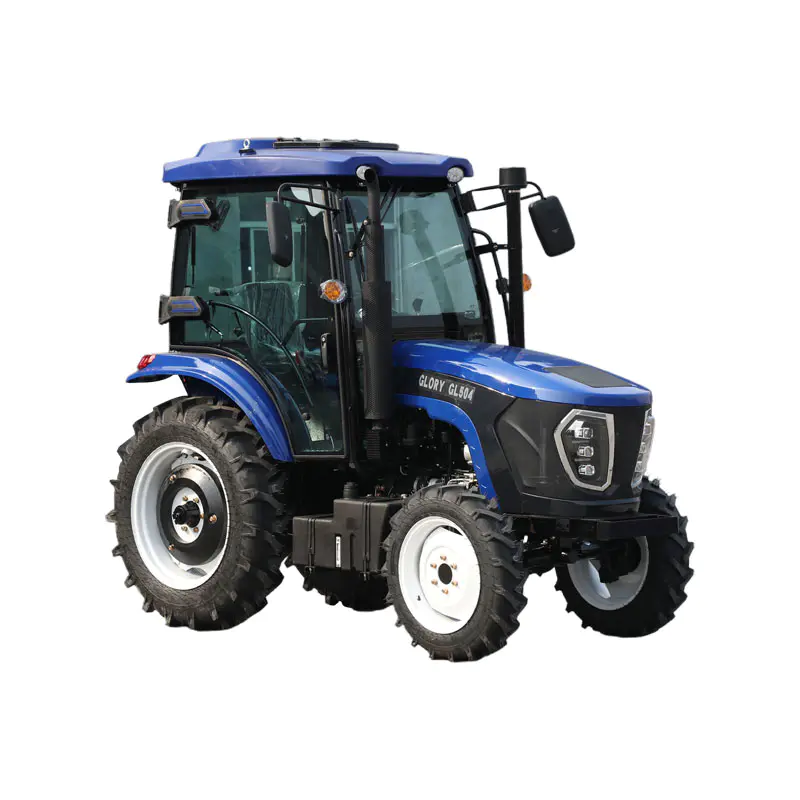

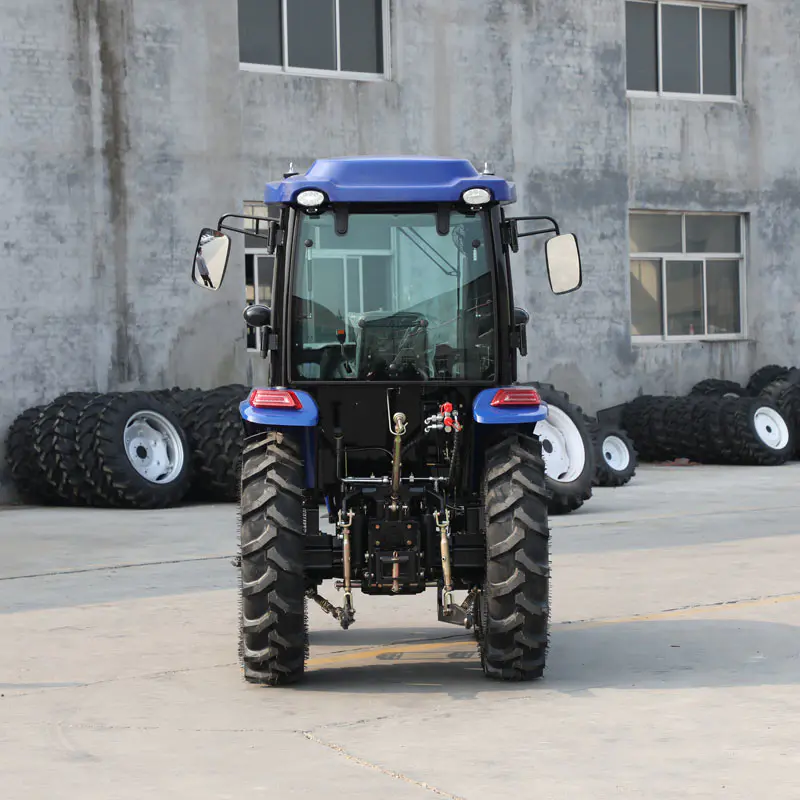

50HP TBS Farm Tractor
  • 50HP TBS Farm Tractor50HP TBS Farm Tractor

50HP TBS Farm Tractor

GLORY is the China tractor factory for the 50HP farm tractor with accessories. This 50HP TBS farm tractor is our hot seller. A variety of horsepower farm tractor can be customized. GLORY has 5 workshops and advanced processing and assembly lines,and GLORY is the provider of integrated farm tractor solutions. GLORY also supply spare parts and attachments supports of small tractor.

Our tractor factory produces small tractor with different horsepower, such as 25HP, 30HP, 40HP, 50HP, 60HP, 70HP, 80HP, 90HP and 100HP small tractor etc.
The farm tractor wheelbase is short. Its structure is small and compact, its work is flexible, it's turning radius is small and its optional wheelbase range is wide. The farm tractor wheelbase can be adjusted in 850-1300mm, which can fit the different rows spacing agricultural work. Standard 8+2 gear with optional 8+8 gear.
The small tractor also can be used as a snow tractor. It's suitable for winter in some cold countries, with snowboard finishing the courtyard and finishing the snow on road. And the snow tractor tire has a certain anti-skid performance and better grip. The snow tractor engine can work normally in winter.
Perfect after-sales service system to ensure that our users have no worries.


Product Advantage

1. Chassis: This small tractor adopts an upgraded TBS chassis to make the overall performance of the vehicle more reliable, having more stable power output and greater traction. The total weight of the vehicle has also reached 2580KG.
2. Engine: It adopts the National II Laidong 495 engine and can be optionally equipped with engines from brands such as Weichai, Huafeng, Yangdong, Yunnei, Changchai, etc.
3. Clutch: It adopts a 10 inch dry double acting clutch. It can independently control the driving speed and power output shaft of the small tractor.
4. Power output shaft: It adopts dual speed power output. There are two gears for regulating 540/720 r/min.
5. Hydraulic cylinder: It adopts a dual hydraulic cylinder configuration of strong lifting and strong lowering. GLORY’s farm tractor has a large lifting force can be used in conjunction with various agricultural machinery.


Product Parameters

50HP TBS Farm Tractor
Product model GL504-TBS
Anti rollover frame size (mm) 3740×1420×2320
Overall dimensions with cab (mm) 3720×1530×2530
Wheelbase (mm) 1870
Minimum usable mass (kg) 2580(safety rack)/2780(cab)
Minimum ground clearance (mm) 350
Engine emissions National Second Engine
Engine brand Laidong495
Engine type Inline 4 cylinder
Engine calibration power (KW) 51.5
Engine calibration speed (r/min) 2400
Clutch type 10 inch Double acting clutch, dry clutch
Number of gears in the gearbox 12+12(optional16+8)
Axle TBS
Tire specifications 8.3-24/11-32
Power output speed (r/min) 540/760
Hydraulic lifting system type Strong pressure dual oil cylinder
Maximum lifting force (KN) ≥8.28
Traction force (KN) ≥12.86


50hp Tbs Farm Tractor50hp Tbs Farm Tractor
