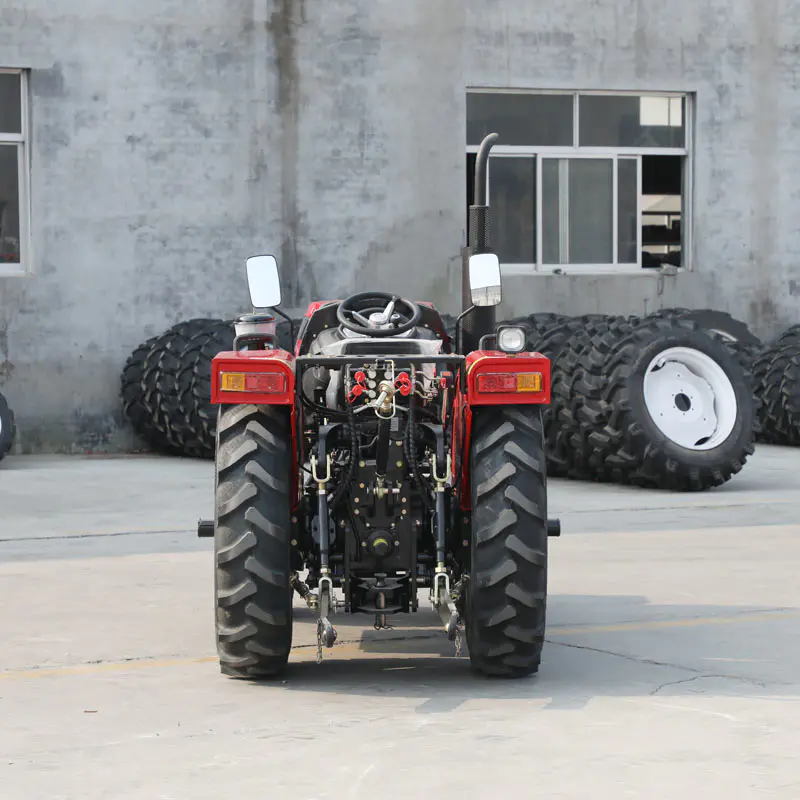

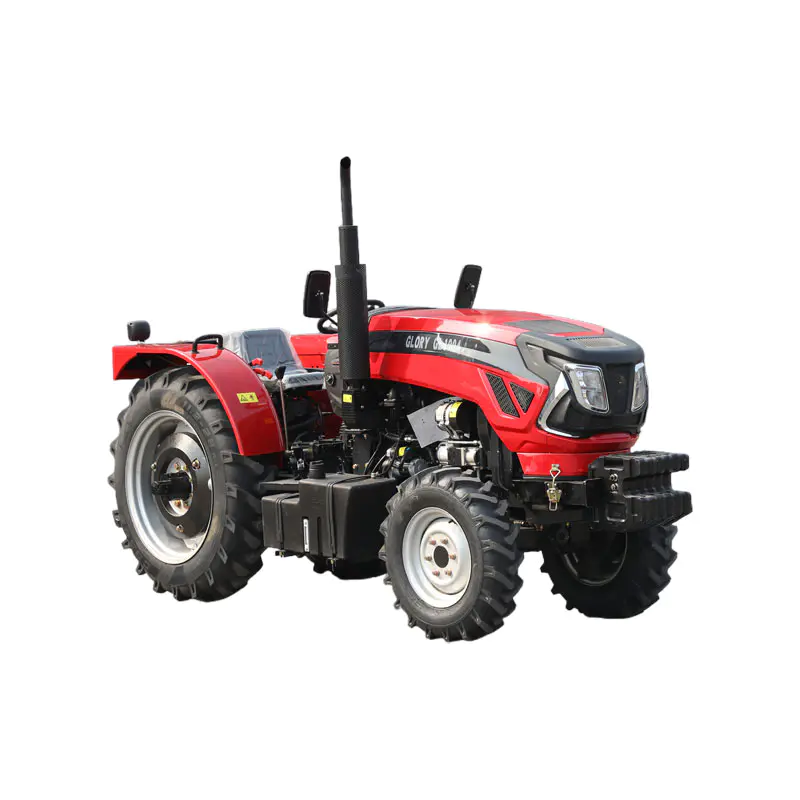

100HP TD Farm Tractor
  • 100HP TD Farm Tractor100HP TD Farm Tractor

100HP TD Farm Tractor

GLORY is the China factory of 100HP TD Farm Tractor with attachments. Glory offer end-to-end agricultural mechanization solutions. Complementary services include original equipment parts distribution and implement technical support packages.

The 100HP TD Farm Tractor is a 4 wheel drive farm tractor,The 100HP TD agricultural tractor uses a 100 hp inline four-cylinder diesel engine with great power,This tractor has the advantages of long battery life, all-weather operation, and all-terrain operation.The tractor features a 14-inch dual-acting clutch for easier and smoother gear changes, and the gearbox is 12+12 gears, so you can get all the speeds you want,Streamlined design, the design is more beautiful,This tractor has a lot of features, you can use it to plow the land, spray, sow seeds, irrigate, harvest.


Product Advantage

1.Engine : Weichai,Huafeng, Laidong, Changchai, Yunnei and other well-known brands.

High horse power, low fuel consumption, reliable performance ,long lasting durability ,comprehensive after sale services.

2.Axle: Patented axle.

Made of high -strength steel ,enhanced chassis with strong load bearing capacity ,key components adopted imported bearings ,which operate smoothly and reliably,adjustable suspension system to enhance driving comfort.

Chassis

3.Independently assemble the chassis to control the quality of the main parts.

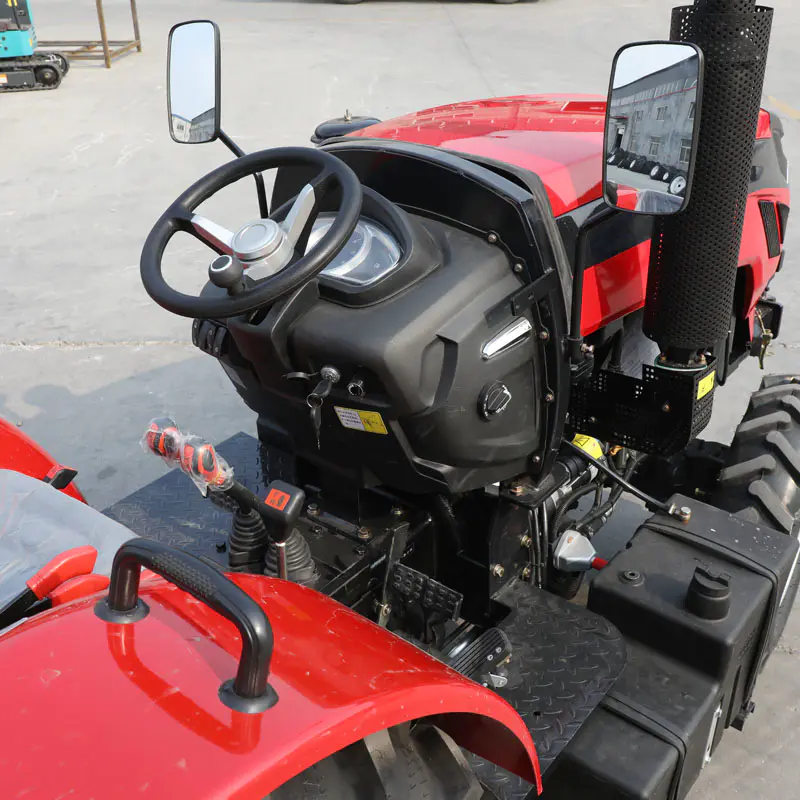

4.Cab: Electrophoretic paint

Rustproof, sturdy and durable.

8+2, 8+8, 12+8, 12+12 are available.

5.Radiator: Large capacity radiator with high heat dissipation efficiency.

6.Tank: Made of high-quality materials, leak proof, large capacity, extending battery life.


Product Parameters

100HP TD Farm tractor
Product model GL1004-TD
Overall dimensions (mm) 4030×1750×2700
Wheelbase (mm) 2050
Minimum usable mass (kg) 4612(safety rack)/4912(cab)
Minimum ground clearance (mm) 380
Engine emissions National Second Engine
Engine brand Huafeng4105T(Lovol Model)
Engine type Inline 4 cylinder
Engine calibration power (KW) 73.5
Engine calibration speed (r/min) 2200
Clutch type 14 inch Double acting clutch
Number of gears in the gearbox 12+12(optional16+8)
Axle TD
Tire specifications 12.4-24/16.9-34
Power output speed (r/min) 760/850
Hydraulic lifting system type Strong pressure dual oil cylinder
Maximum lifting force (KN) ≥17.64
Traction force (KN) ≥22.12


100hp Td Farm Tractor100hp Td Farm Tractor
