70HP TBL Farm Tractor
  • 70HP TBL Farm Tractor70HP TBL Farm Tractor

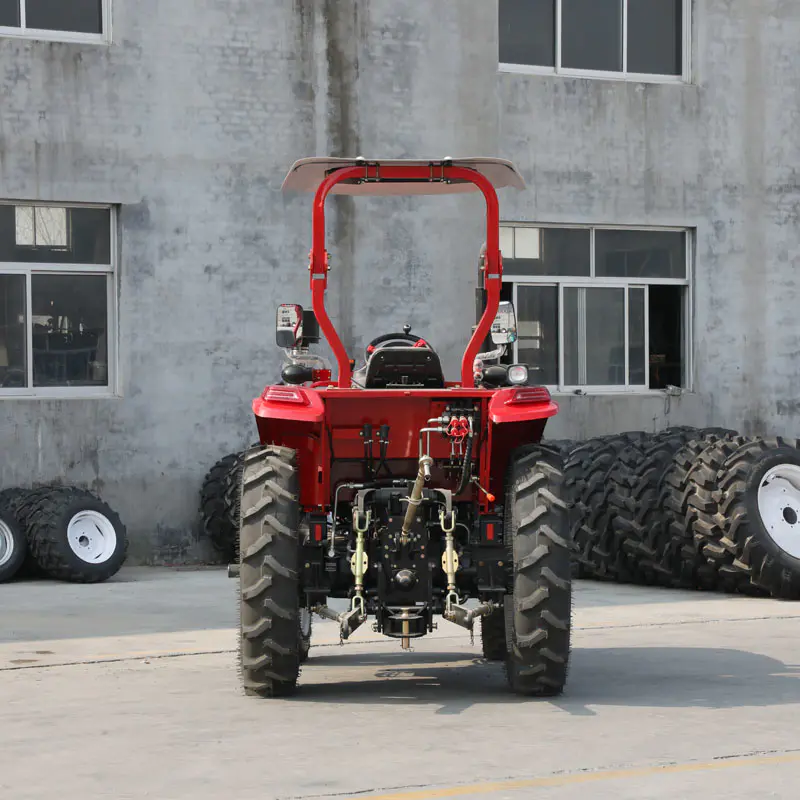

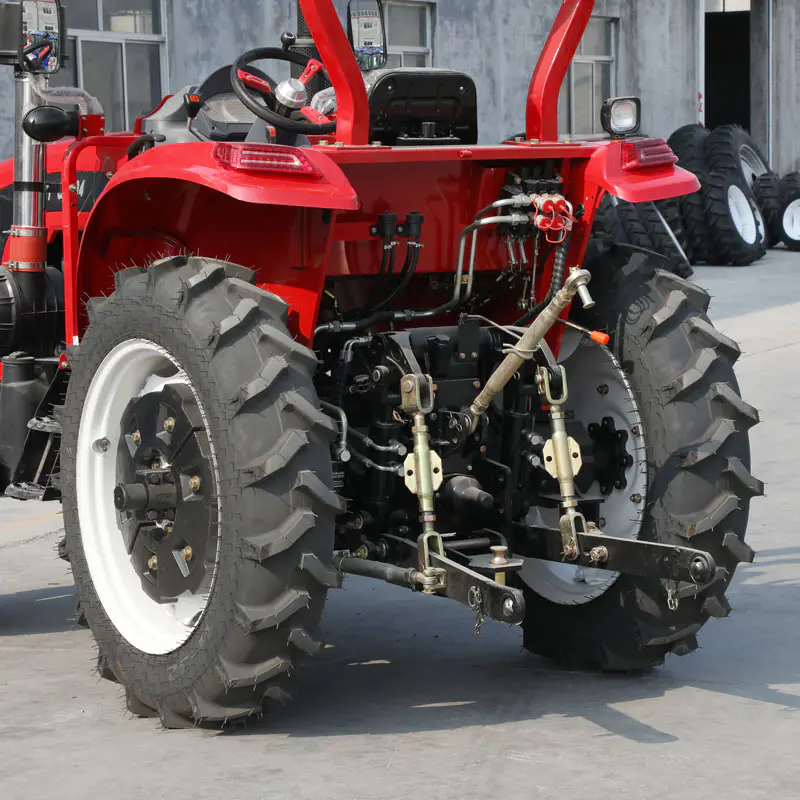

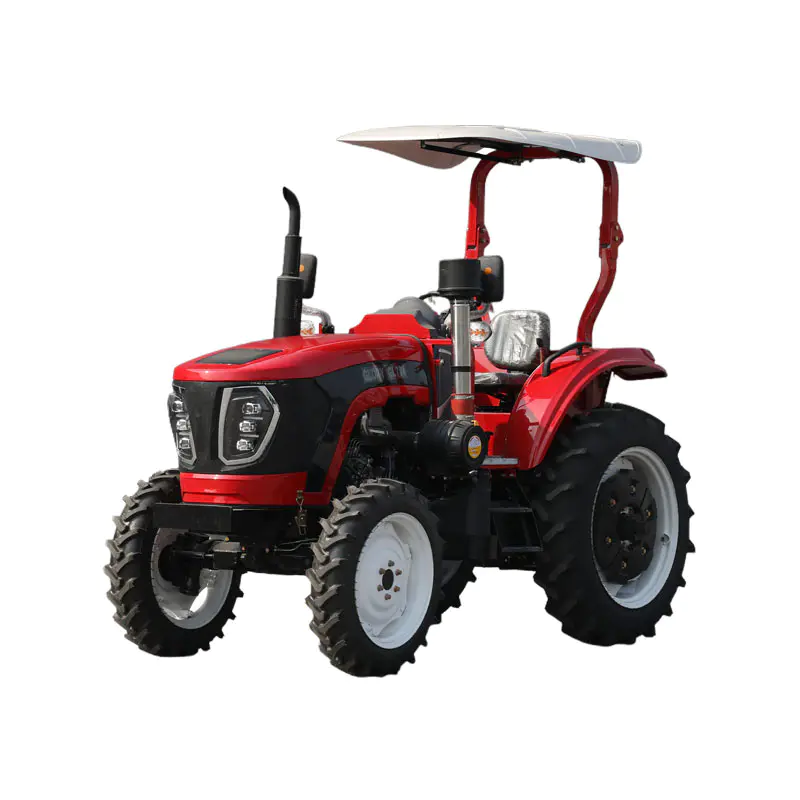

70HP TBL Farm Tractor

GLORY is the China factory of The 70HP TBL Farm Tractor with attachments.We specialize in manufacturing agricultural 4WD tractors ranging from 50 HP to 260 HP. GLORY is the provider of integrated agricultural tractor solutions. GLORY also supply spare parts and attachments supports.

The 70HP TBL Farm Tractor , tractor is feature advanced structure, gearbox transmission smoothly, famous brand engine, strong power, low oil consumption ,full hydraulic system, more comfortable and safe, and easier to drive Streamlined hood.The 70HP TBL Farm Tractor can used in farm ,garden,paddy field and dry field .Tractors have stood for quality, reliability and innovation in agriculture for decades.


Product Advantage

1.Engine : Weichai Huafeng, Laidong, Changchai, Yunnei and other well-known brands.

High horse power, low fuel consumption, reliable performance ,long lasting durability ,comprehensive after sale services.

2.Axle: Patented axle.

Made of high -strength steel ,enhanced chassis with strong load bearing capacity ,key components adopted imported bearings ,which operate smoothly and reliably,adjustable suspension system to enhance driving comfort.

Chassis

3.Independently assemble the chassis to control the quality of the main parts.

4.Cab: Electrophoretic paint

Rustproof, sturdy and durable.

8+2, 8+8, 12+8, 12+12 are available.

5.Radiator: Large capacity radiator with high heat dissipation efficiency.

6.Tank: Made of high-quality materials, leak proof, large capacity, extending battery life.


Product Parameters

70HP TBL Farm Tractor
Product model GL704-TBL
Overall dimensions (mm) 4030×1750×2700
Wheelbase (mm) 2050
Minimum usable mass (kg) 2960(safety rack)/3160(cab)
Minimum ground clearance (mm) 380
Engine emissions National Second Engine
Engine brand Laidong4102
Engine type Inline 4 cylinder
Engine calibration power (KW) 51.5
Engine calibration speed (r/min) 2400
Clutch type 11 inch Double acting clutch, dry clutch
Number of gears in the gearbox 12+12(optional16+8)
Axle TBL
Tire specifications 9.5-24/14.9-30
Power output speed (r/min) 540/760
Hydraulic lifting system type Strong pressure dual oil cylinder
Maximum lifting force (KN) ≥12.36
Traction force (KN) ≥18.96


70hp Tbl Farm Tractor70hp Tbl Farm Tractor



Hot Tags: 70HP TBL Farm Tractor
