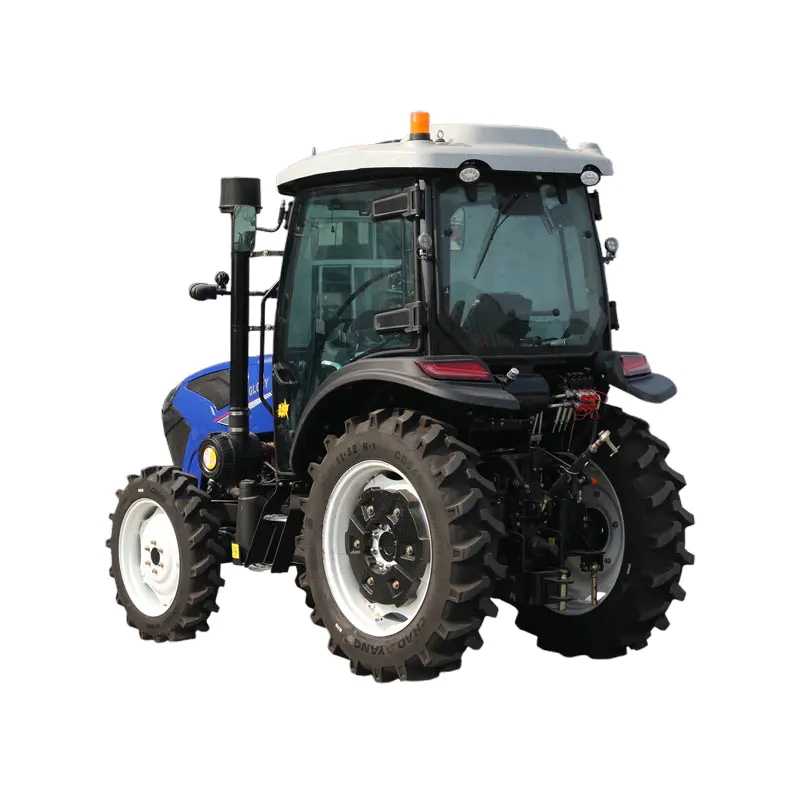

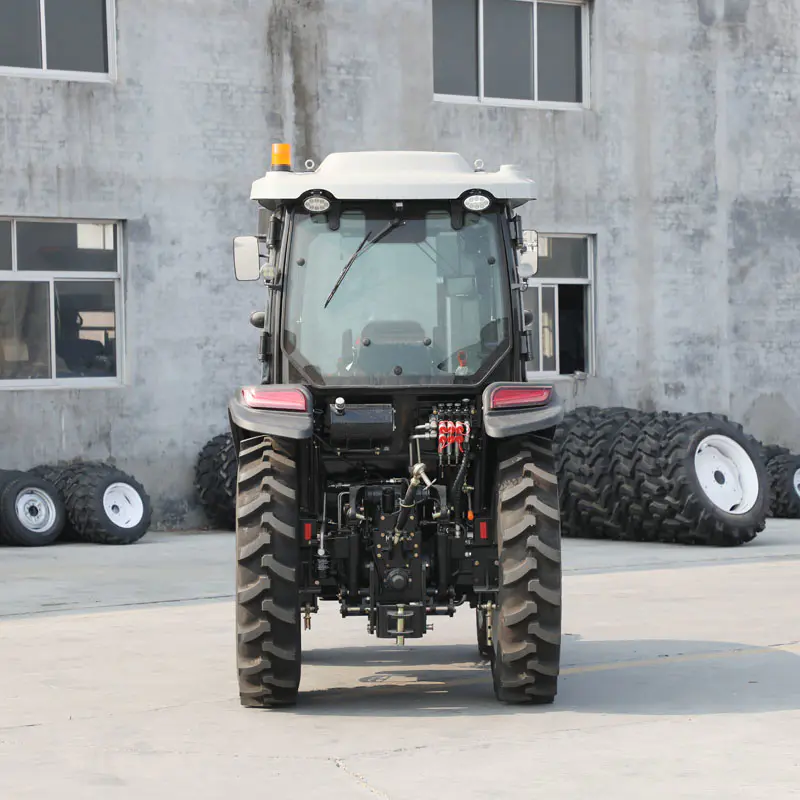

100HP TBL farm tractor is powered by a diesel inline-four engine of the Lai Dong4102T,This agricultural diesel tractor is more fuel-efficient.The minimum ground clearance is 380mm, so the passing performance of this tractor is very superior.100HP TBL farm tractor is a small 4x4 tractor for agricultural use.So it can be adapted to all terrains.With the advantages of high efficiency, multi-function, economy and fuel saving, 100HP TBL farm tractor is a very best-selling agricultural four-wheel drive tractor.
Product Advantage
1.Engine : Weichai,Huafeng, Laidong, Changchai, Yunnei and other well-known brands.
High horse power, low fuel consumption, reliable performance ,long lasting durability ,comprehensive after sale services.
2.Axle: Patented axle.
Made of high -strength steel ,enhanced chassis with strong load bearing capacity ,key components adopted imported bearings ,which operate smoothly and reliably,adjustable suspension system to enhance driving comfort.
Chassis
3.Independently assemble the chassis to control the quality of the main parts.

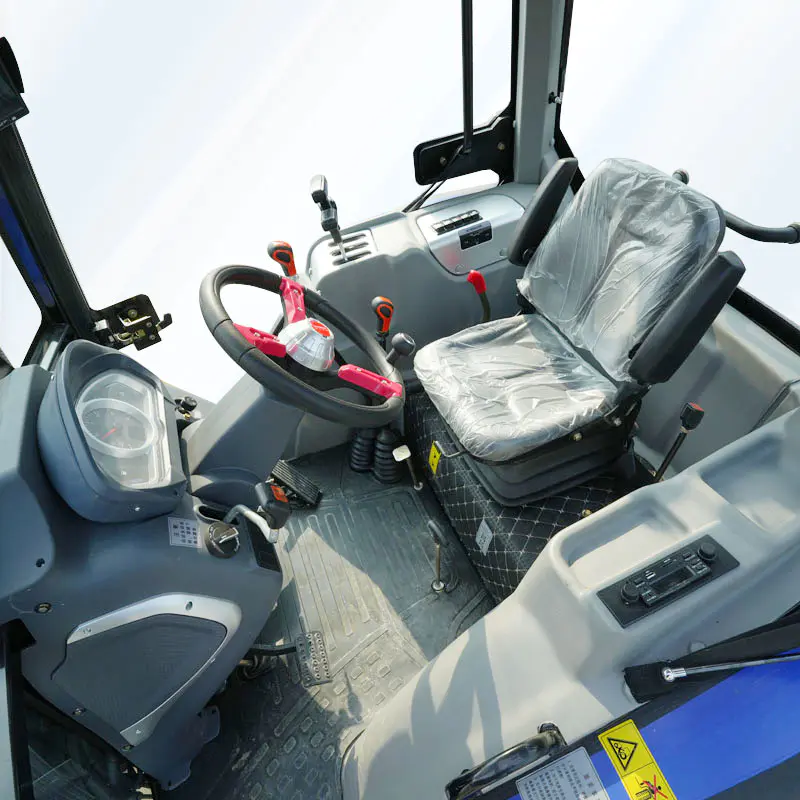

4.Cab: Electrophoretic paint
Rustproof, sturdy and durable.
8+2, 8+8, 12+8, 12+12 are available.
5.Radiator: Large capacity radiator with high heat dissipation efficiency.
6.Tank: Made of high-quality materials, leak proof, large capacity, extending battery life.
Product Parameters
| 100HP TBL Farm tractor | |
| Product model | GL1004-TBL |
| Overall dimensions (mm) | 4030×1750×2700 |
| Wheelbase (mm) | 2050 |
| Minimum usable mass (kg) | 2960(safety rack)/3160(cab) |
| Minimum ground clearance (mm) | 380 |
| Engine emissions | National Second Engine |
| Engine brand | Laidong4102T |
| Engine type | Inline 4 cylinder |
| Engine calibration power (KW) | 73.5 |
| Engine calibration speed (r/min) | 2400 |
| Clutch type | 11 inch Double acting clutch, dry clutch |
| Number of gears in the gearbox | 12+12/(optional16+8) |
| Axle | TBL |
| Tire specifications | 9.5-24/14.9-30 |
| Power output speed (r/min) | 540/760 |
| Hydraulic lifting system type | Strong pressure dual oil cylinder |
| Maximum lifting force (KN) | ≥17.64 |
| Traction force (KN) | ≥22.12 |
