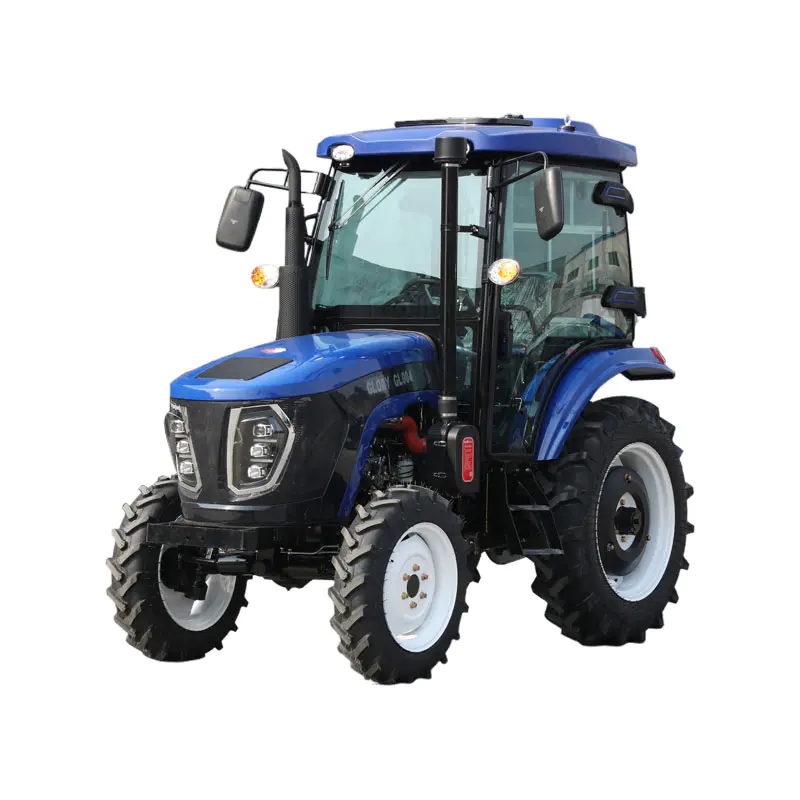

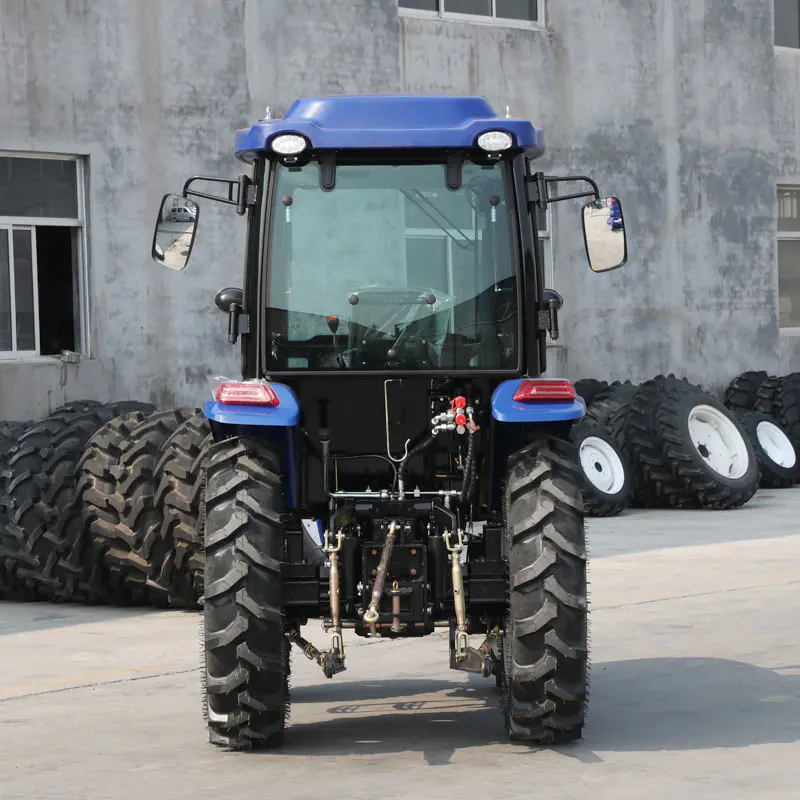

The 90HP TBL Farm Tractor , can be used in farm ,garden,paddy field and dry field ,orchard .Tractors have stood for quality, reliability and innovation in agriculture for decades.The 90 HP TBL tractor is feature advanced structure, gearbox transmission smoothly, famous brand engine, strong power, low oil consumption ,full hydraulic system, more comfortable and safe, and easier to drive Streamlined hood.
Product Advantage
1.Engine : Weichai Huafeng, Laidong, Changchai, Yunnei and other well-known brands.
High horse power, low fuel consumption, reliable performance ,long lasting durability ,comprehensive after sale services.
2.Axle: Patented axle.
Made of high -strength steel ,enhanced chassis with strong load bearing capacity ,key components adopted imported bearings ,which operate smoothly and reliably,adjustable suspension system to enhance driving comfort.
Chassis
3.Independently assemble the chassis to control the quality of the main parts.

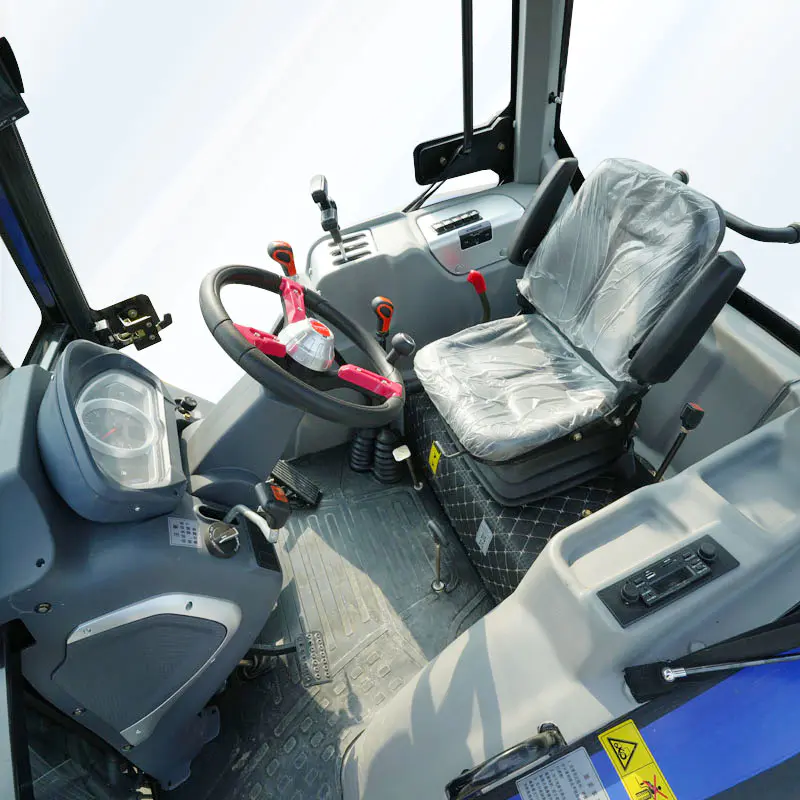

4.Cab: Electrophoretic paint
Rustproof, sturdy and durable.
8+2, 8+8, 12+8, 12+12 are available.
5.Radiator: Large capacity radiator with high heat dissipation efficiency.
6.Tank: Made of high-quality materials, leak proof, large capacity, extending battery life.
Product Parameters
| 90HP TBL Farm Tractor | |
| Product model | GL904-TBL |
| Overall dimensions (mm) | 4030×1750×2700 |
| Wheelbase (mm) | 2050 |
| Minimum usable mass (kg) | 2960(safety rack)/3160(cab) |
| Minimum ground clearance (mm) | 380 |
| Engine emissions | National Second Engine |
| Engine brand | Laidong4102T |
| Engine type | Inline 4 cylinder |
| Engine calibration power (KW) | 66.2 |
| Engine calibration speed (r/min) | 2400 |
| Clutch type | 11 inch Double acting clutch, dry clutch |
| Number of gears in the gearbox | 12+12(optional16+8) |
| Axle | TBL |
| Tire specifications | 9.5-24/14.9-30 |
| Power output speed (r/min) | 540/760 |
| Hydraulic lifting system type | Strong pressure dual oil cylinder |
| Maximum lifting force (KN) | ≥15.9 |
| Traction force (KN) | ≥21.17 |
