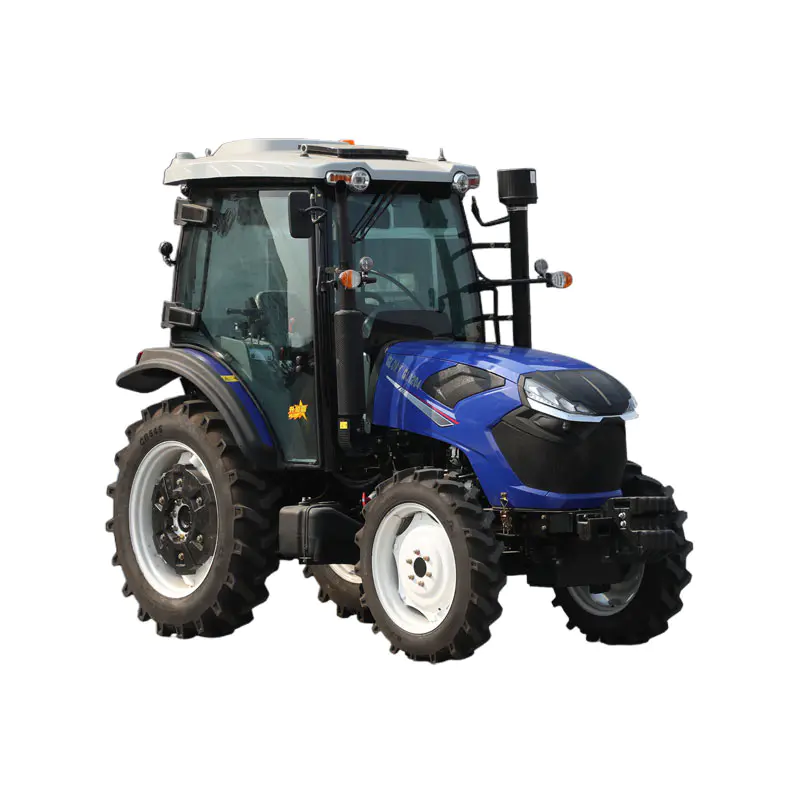

The 120HP TD3S Farm Tractor is a four-wheel drive tractor for agricultural use with a Huafeng 4105T diesel inline four-cylinder engine, which we have developed, designed and manufactured ourselves.The 120HP TD3S is equipped with a TD3S axle, which is more adaptable,Thanks to its excellent power and all-wheel drive system, this tractor can adapt to more terrain.The 120HP TD3S can be adapted to a variety of agricultural operations by installing different tractor farm tools.
Product Advantage
1.Engine : Weichai,Huafeng, Laidong, Changchai, Yunnei and other well-known brands.
High horse power, low fuel consumption, reliable performance ,long lasting durability ,comprehensive after sale services.
2.Axle: Patented axle.
Made of high -strength steel ,enhanced chassis with strong load bearing capacity ,key components adopted imported bearings ,which operate smoothly and reliably,adjustable suspension system to enhance driving comfort.
Chassis
3.Independently assemble the chassis to control the quality of the main parts.

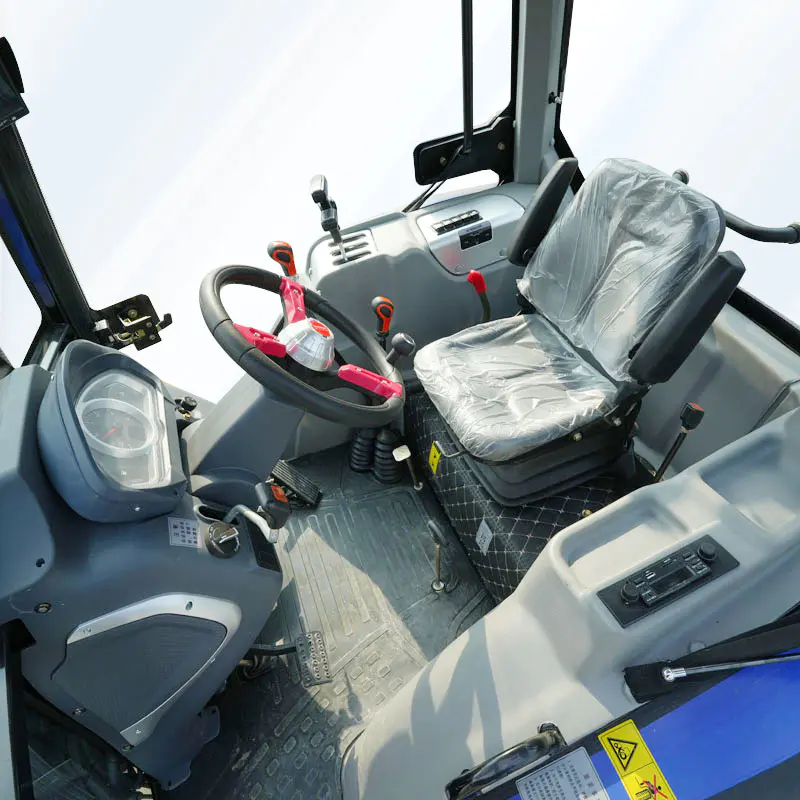

4.Cab: Electrophoretic paint
Rustproof, sturdy and durable.
8+2, 8+8, 12+8, 12+12 are available.
5.Radiator: Large capacity radiator with high heat dissipation efficiency.
6.Tank: Made of high-quality materials, leak proof, large capacity, extending battery life.
Product Parameters
| 120HP TD3S Farm tractor | |
| Product model | GL1204-TD3S |
| Overall dimensions (mm) | 4920×2210×3030 |
| Wheelbase (mm) | 2550 |
| Minimum usable mass (kg) | 4412(safety rack)/4712(cab) |
| Minimum ground clearance (mm) | 490 |
| Engine emissions | National Second Engine |
| Engine brand | Huafeng4105T |
| Engine type | Inline 4 cylinder |
| Engine calibration power (KW) | 88.2 |
| Engine calibration speed (r/min) | 2200 |
| Clutch type | 12 inch Double acting clutch |
| Number of gears in the gearbox | 12+12 |
| Axle | TD3S |
| Tire specifications | 12.4-24/16.9-34 |
| Power output speed (r/min) | 760/850 |
| Hydraulic lifting system type | Double Cylinder Forced Pressure |
| Maximum lifting force (KN) | ≥28.22 |
| Traction force (KN) | ≥37.63 |
