Development history of wheel loader
Three technological revolutions from steel behemoths to intelligent engineers
Origin and Foundation: Three Breakthroughs in the 1929-1950s.

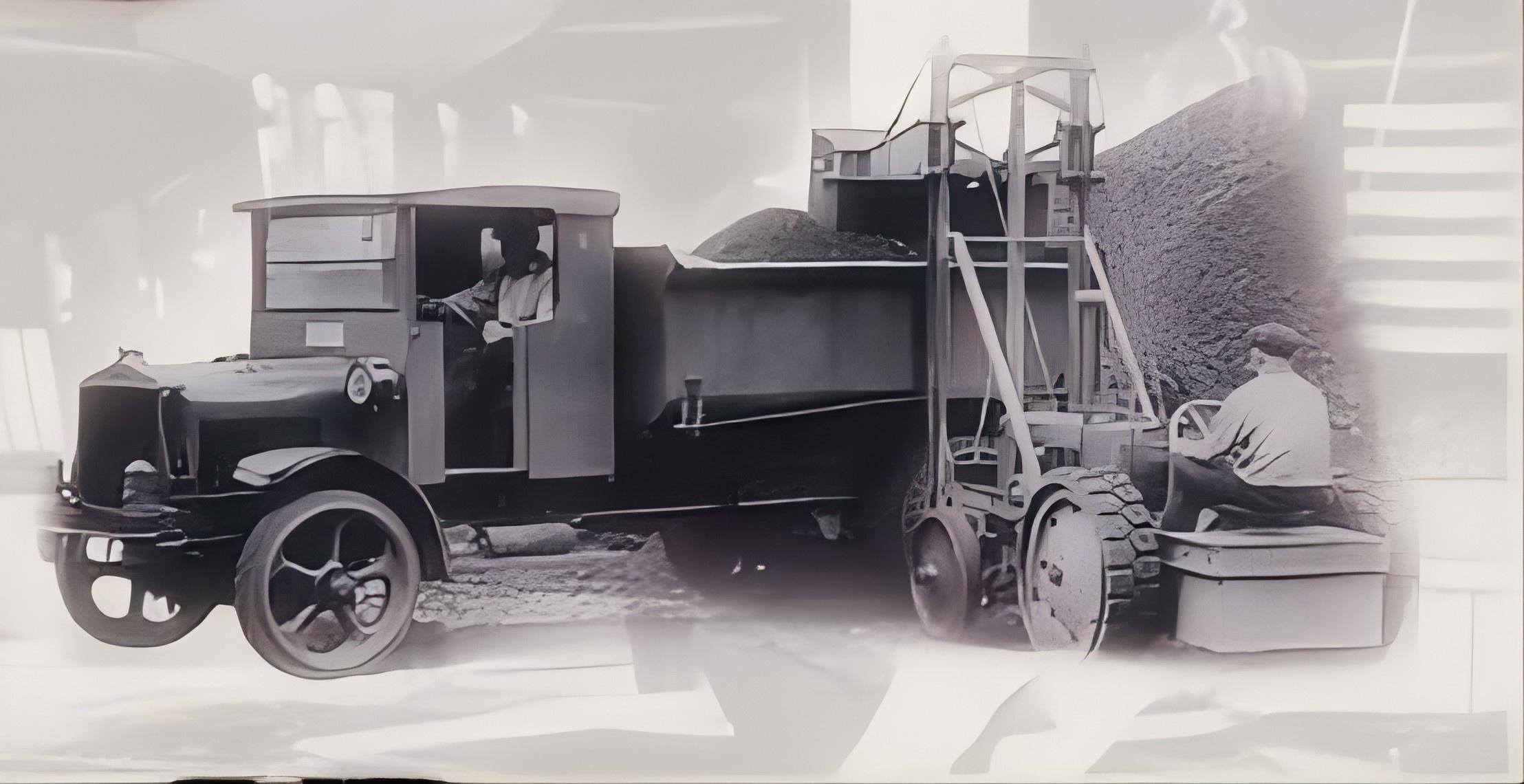

In 1929, the world's first wheel loader was born. This equipment, based on a modified tractor chassis, adopts a gantry structure and a steel rope bucket design, with a bucket capacity of only 0.753 cubic meters and a load capacity of 680 kilograms. The structure of front engine, front wheel steering, and single axle drive, although low traction and operational efficiency, laid the foundation for the basic form of loaders.
The real revolution occurred in 1947. Clark Corporation in the United States replaced the gantry structure with a hydraulic linkage mechanism and adopted a dedicated chassis, giving the equipment the appearance of a modern loader for the first time. This breakthrough significantly improved the lifting speed, unloading height, and excavation force, enabling loaders to effectively handle loose soil and rock, becoming the first major leap in development history.
In the 1950s, the application of hydraulic mechanical transmission technology gave birth to the second breakthrough. The transmission structure of diesel engine hydraulic torque converter power shift gearbox dual axle drive has been formed, which greatly improves the transmission efficiency, traction and equipment life, and promotes the series of specialized production.
Articulation Revolution and China's Beginning: The Road to Autonomy in the 1960s and 1970s
In the 1960s, the application of articulated frame technology marked the third breakthrough. Articulated steering allows the bucket to rotate with the front frame, achieving stationary steering. Compared with rigid frames, it reduces the average driving distance by more than 50% within one operating cycle, increases production efficiency by 50%, and has a smaller turning radius and better maneuverability.

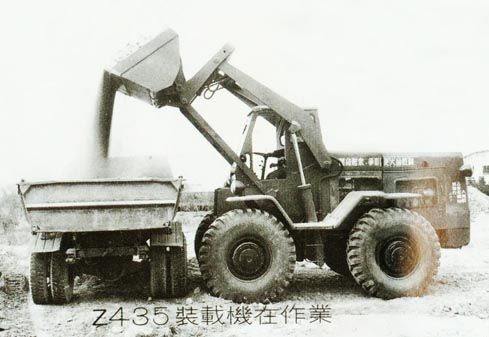

The Chinese loader industry started during this period. In the late 1960s, China began to imitate and explore, initially producing Z14 tracked rear dump loaders (Chengdu Construction Machinery Factory), Red Star 1 cubic meter loaders (Shanghai Port Machinery Factory), and so on. In 1966, Liuzhou Construction Machinery Factory manufactured China's first wheel loader Z435 (3.5 tons) after surveying Japanese prototypes.
On December 18, 1971, China's first articulated wheel loader Z450 (later known as ZL50) passed the appraisal. The machine adopts modern structures such as hydraulic mechanical transmission, power shifting, dual axle drive, and articulated power steering, with a power of 162KW, representing the world's advanced level at that time. In 1978, Tiangong Institute formulated the Chinese wheel loader series standard based on Z450, changed Z450 to ZL50, and formed an industry pattern dominated by four backbone enterprises: Liugong, Xiagong, Chenggong, and Yigong.
Tonne level differentiation and market evolution: specialized segmentation from 1980 to 2000
After the 1980s, the Chinese loader industry entered a stage of technology introduction, joint venture cooperation, and self-development. The product tonnage is gradually differentiated, forming a market pattern dominated by 3ton, 5ton, etc
The 3 ton wheel loader (such as ZL30 type) has a long-term stable market share of around 30% due to its flexibility and adaptability, and is widely used in urban construction and small and medium-sized projects.
The 5 ton wheel loader (such as ZL50 model) became the absolute mainstay, with a market share of up to 60% by 2005.
Wheel loaders with a tonnage of 6 tons or more have relatively few mature products in China, and the market is mainly dominated by imported or joint venture products.
During this period, loaders developed towards safety, effortless operation, convenient maintenance, reduced pollution, and comfort in terms of structure:
The caliper disc brake replaces the shoe brake, with good water recovery and heat dissipation.
Roll over and fall proof cab has become standard and equipped with air conditioning.
Pilot control operation significantly reduces the driver's labor intensity.
At the end of the 20th century, the development of loaders entered the era of electronicization, placing greater emphasis on environmental protection, safety, and simplified operation
The noise around the driver's ear decreased from 85 decibels to below 76 decibels.
The lubrication cycle is extended to over 2000 hours, making maintenance easier.
Energy saving technologies such as automatic gear shifting controlled by microprocessors, variable systems, and dual pump merging systems have been applied.
Technology Fusion and Future Prospects: A New Era of Intelligence and Green
Entering the 21st century, the development of wheel loaders has deeply integrated electronic technology, intelligence, and environmental protection concepts:
Mechatronics: The variable speed control has been changed from mechanical hydraulic control to computer integrated control system (EST17T) electro-hydraulic control, and electronic monitoring systems are widely used.
Energy saving and environmental protection: Low emission diesel engines are used, and the hydraulic system pressure is in line with international standards, increasing from 16MPa to over 20MPa.
Comfort and safety: The streamlined exterior design, air-conditioned cab (front and rear glass integrated), fully sealed wet multi disc brake system, and fully hydraulic brake system have become prominent features of the third-generation product.
The 3 ton wheel loader incorporates human centered considerations into its compact design to meet the operational needs of narrow urban spaces. As the backbone force, the 5 ton wheel loader continues to make breakthroughs in power matching and energy consumption optimization. The 6 ton wheel loader is designed for heavy-duty working conditions such as mines, continuously improving reliability and operational efficiency.
After decades of development, the Chinese loader industry has grown from initial imitation and exploration to a world production and sales powerhouse. In the future, with the deepening application of electrification and intelligent technology, wheel loaders will continue to evolve towards higher efficiency, environmental friendliness, and intelligence, contributing Chinese strength to global engineering construction.
-
