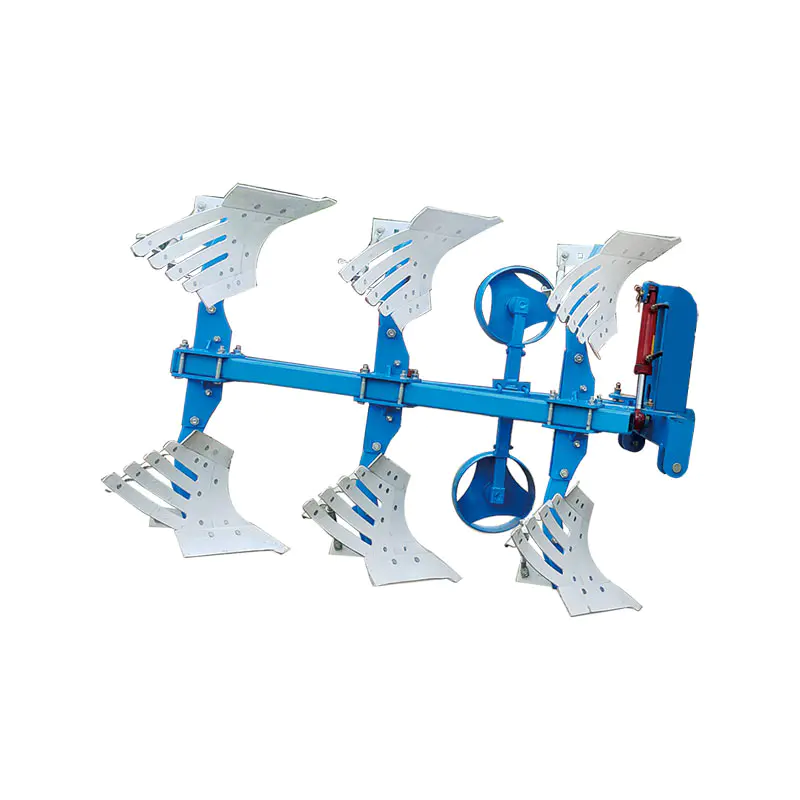

The Flip plow can be used with all kinds of tractors ,farm tractor ,lawn tractor ,agricultural tractor ,easily operate and can make the field soft .The plow made of high quality materials with long service life .
Product Parameters
| Flip Plow | ||||
| Project | Unit | Design value | ||
| Model name | / | 1LF-327A Plow | 1LF-327 Plow | 1LF-325 Plow |
| Structural style | / | Suspension type | ||
| Overall dimensions of the machine (length x width x height) | mm | 2100×1300×1400 | 2100×1280×1370 | 2100×1250×1300 |
| Calibration power of supporting tractor | kW | 44.1～73.5 | ||
| Flip mechanism type | / | Hydraulic, fully flip type | ||
| Plow type | / | Basic (universal) type | ||
| Number of plows | pcs | 3+3 | ||
| Plow width | mm | 270 | 270 | 250 |
| Plow type | / | Universal type (chisel type) | ||
| Plow wall type | / | Combination type, grid type | ||
| Total working width | mm | 810 | 810 | 750 |
| Longitudinal distance of plow body | mm | 630 | 620 | 610 |
| Plow wheel type | / | Limited depth wheel | ||
| Number of plow wheels | pcs | 2 | ||
| Adjustment range of limited depth wheel | mm | 100～280 | ||
| Oil cylinder specifications | / | YD50-200 | ||
| Number of oil cylinders | pcs | 1 | ||
