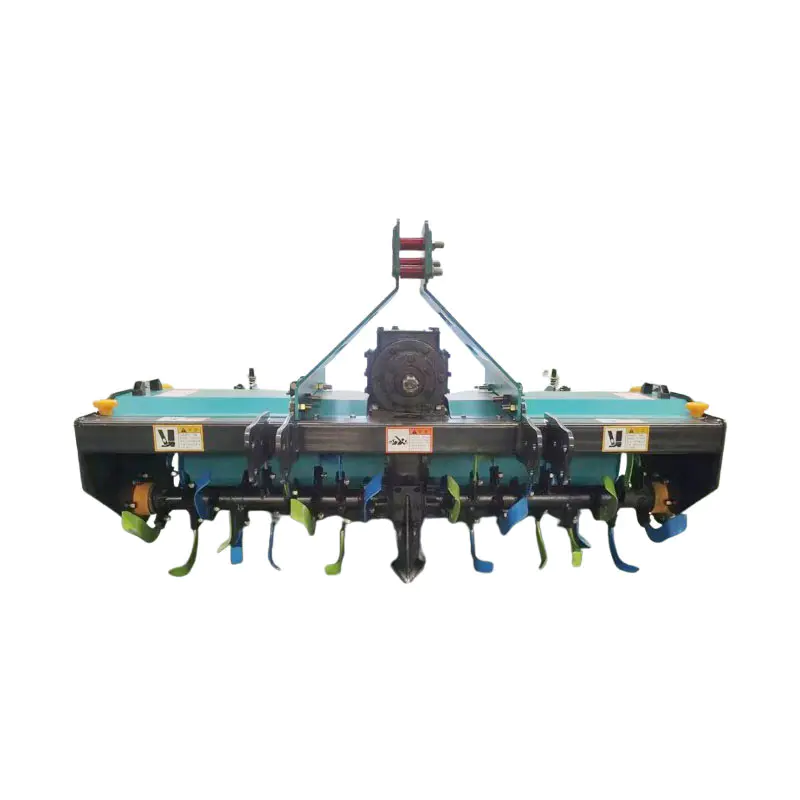

Rotary Tiller

GLORY is the China factory of high-quality farm tractor with Rotary Tiller attachments. Glory have 5 specialized production workshops and 3 production lines, along with a team of professional service personnel, offering integrated solutions.

Our Rotary tiller is an efficient and durable agricultural machine designed for modern farming. The advanced blade rotation technology can easily break up the soil, mix fertilizer, achieve deep tillage and surface leveling, and significantly improve soil permeability and crop root development.


Product Parameters

Rotary Tiller
Project Unit Design value
Model name / 1GKN-150 Rotary Tiller 1GKN-180 Rotary Tiller 1GKN-230 Rotary Tiller
Structural style / Framework type
Overall dimensions of the machine (length x width x height) mm 850×1650×1000 950×2100×1080 1050×2590×1150
Range of homework speed m/s 0.5~1.1 0.5~1.1 0.5~1.1
Working breadth cm 150 180 230
Deep plowing cm ≥12
Knife shaft type / Single shaft type
Knife shaft connection type / Spline type
Drive system / Intermediate transmission
Type of shipping / Ordinary type
Number of gears in the gearbox (variable speed rotary tiller) pcs /
Design speed of knife roller r/min 291/387/409 223/297/314 223/297/314
Maximum turning radius of the knife roller mm 225 245 245
Total number of blades installed on the knife roller pcs 36 52 68
Rotary tiller model / IT225 IT245 IT245
Type of depth limiting device / Limited depth board
Suppression type / Pallet
Calibration power range of supporting tractor kW 29.5~51.5 44.1~73.5 73.5~132.5
Power output shaft speed r/min 540/720/760

Rotary Tiller
