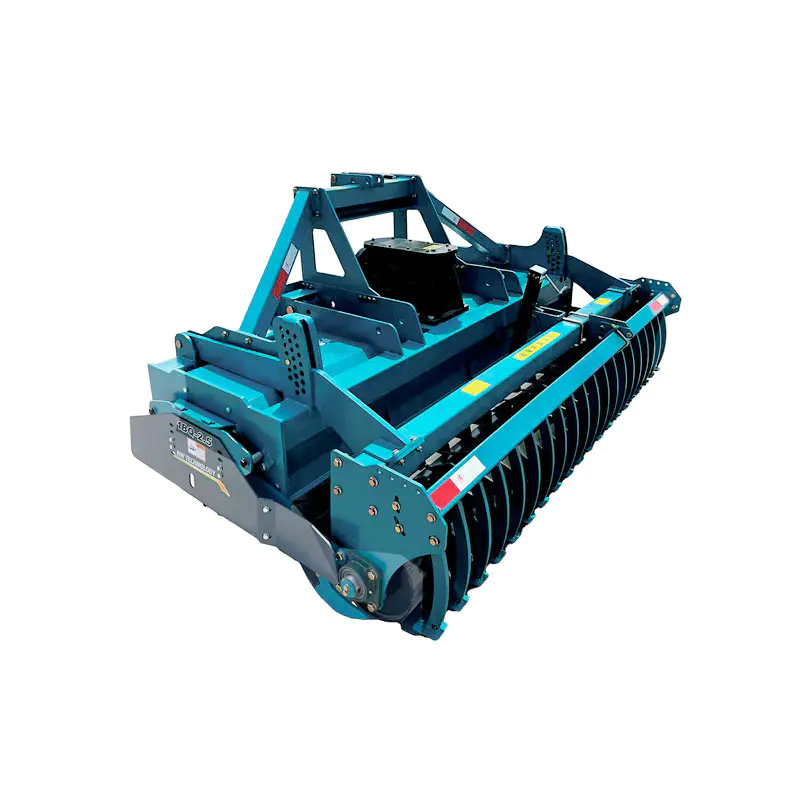

Rotary Harrow

GLORY is a Chinese factory producing high-quality farm tractors and Rotary Harrow attachments. Equipped with 5 workshops and advanced processing and assembly lines, GLORY offers integrated agricultural tractor solutions along with spare parts and attachment support.

Send Inquiry

Product Description

The Rotary Harrow made of high quality materials with long service life .The drive rake can be used with all kinds of tractors ,farm tractor ,lawn tractor ,agricultural tractor ,easily operate and can make the field soft .

Product Parameters

1BQ Series Rotary Harrow
Model name	1BQ-2.5 type Rotary Harrow	1BQ-3.0 type Rotary Harrow
Connection method with matching tractor	Three point suspension	Three point suspension
Working width (mm)	2500	3000
Supporting power (kw)	90-147	110.3-176
Harrow depth (mm)	100～260	100～260
Number of harrow teeth	20 pcs	24 pcs
Number of drive shafts	10 groups	12 groups
Homework speed (km/h)	3～6	3～6
Dimensions (mm)	1450×2600×1200	1450×3100×1200
Harrow tooth spacing (mm)	245	245
Output spindle speed (r/min)	346	346

Rotary Tiller
