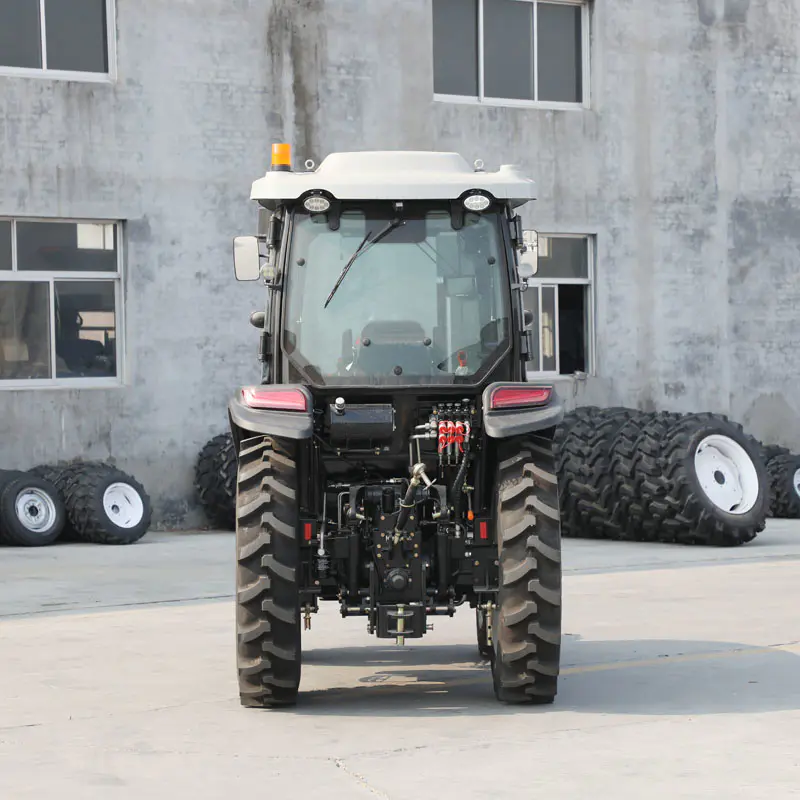

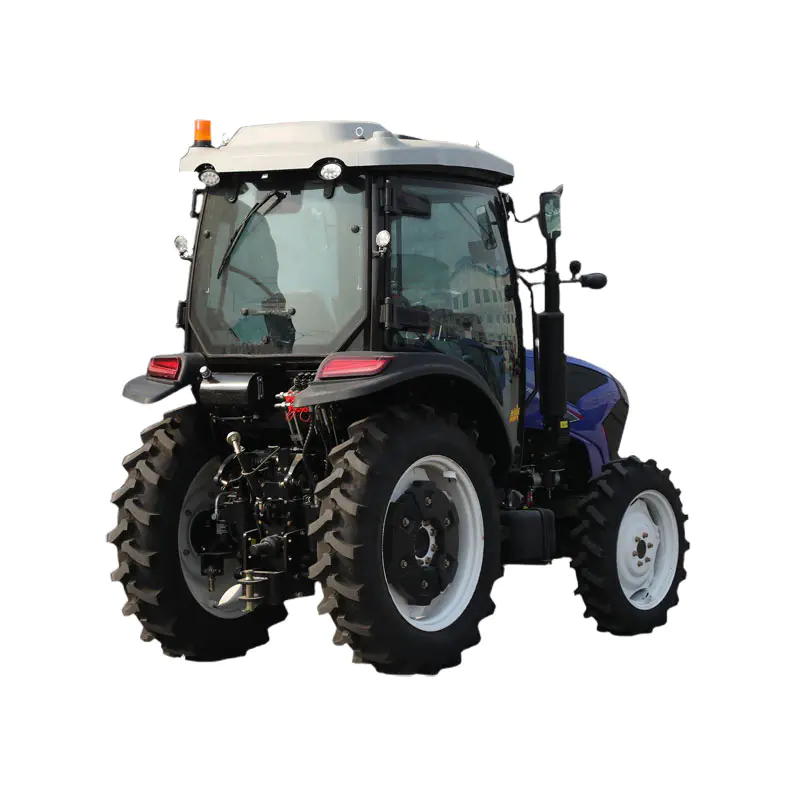

The 180HP TD Farm Tractor is a new 4WD large agricultural model launched by Glory Tractor Factory. This 180HP TD Farm Tractor integrates state-of-the-art technologies and offers customizable configurations adapted to various terrains and climatic conditions, ensuring comprehensive fulfillment of operational requirements. Whether for dry fields or paddy fields, mountainous regions or plains, this 180HP TD Farm Tractor delivers optimal performance as your ideal agricultural machinery solution.
Product Advantage
1.Engine : Weichai,Huafeng, Laidong, Changchai, Yunnei and other well-known brands.
High horse power, low fuel consumption, reliable performance ,long lasting durability ,comprehensive after sale services.
2.Axle: Patented axle.
Made of high -strength steel ,enhanced chassis with strong load bearing capacity ,key components adopted imported bearings ,which operate smoothly and reliably,adjustable suspension system to enhance driving comfort.
Chassis
3.Independently assemble the chassis to control the quality of the main parts.

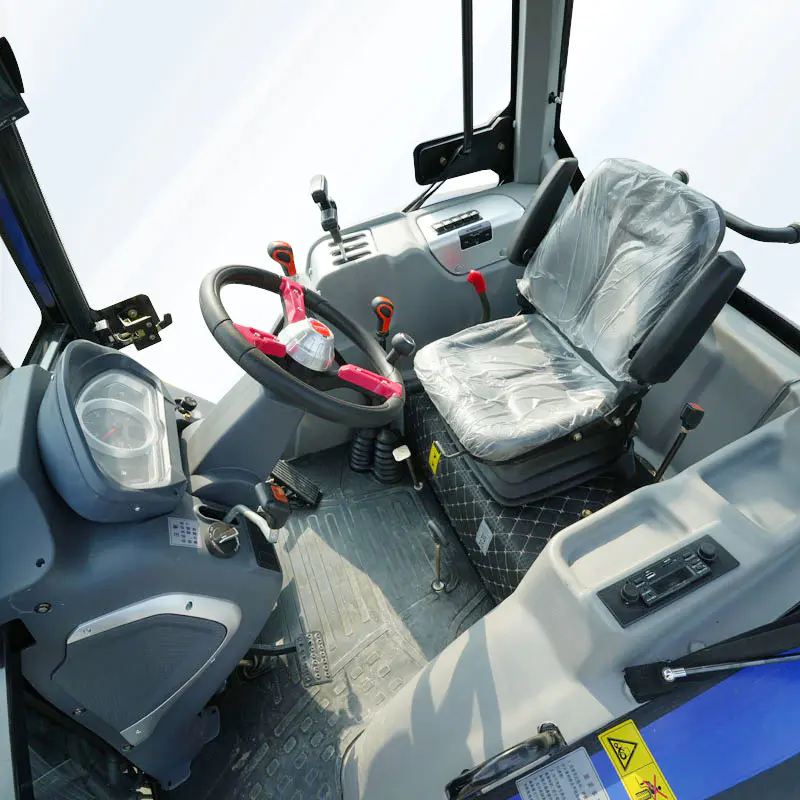

4.Cab: Electrophoretic paint
Rustproof, sturdy and durable.
8+2, 8+8, 12+8, 12+12 are available.
5.Radiator: Large capacity radiator with high heat dissipation efficiency.
6.Tank: Made of high-quality materials, leak proof, large capacity, extending battery life.
Product Parameters
| 180HP TD Farm Tractor | |
| Product model | GL1804-TD |
| Overall dimensions (mm) | 5050×2400×3000 |
| Wheelbase (mm) | 2630 |
| Minimum usable mass (kg) | 5780 |
| Minimum ground clearance (mm) | 470 |
| Engine emissions | National Second Engine |
| Engine brand | LaiDong |
| Engine type | Inline 4 cylinder |
| Engine calibration power (KW) | 132.4 |
| Engine calibration speed (r/min) | 2200 |
| Clutch type | Double acting clutch, dry clutch |
| Number of gears in the gearbox | 16+8 (optional 24+8) |
| Axle | TD |
| Tire specifications | 14.9-28/18.4-38 |
| Power output speed (r/min) | 760/850 |
| Hydraulic lifting system type | Strong pressure dual oil cylinder |
| Maximum lifting force (KN) | ≥31.7 |
| Traction force (KN) | ≥42.48 |
