120HP TF Farm Tractor

GLORY is the China factory of The 120HP TF farm tractor with attachments. Operating through 5 specialized workshops equipped with precision-engineered processing systems and automated assembly lines, Glory deliver comprehensive agricultural mechanization solutions encompassing complete tractor packages.

The 120HP TF farm tractor is a four-wheel drive agricultural tractor, equipped with Huafeng 4105T In-line four-cylinder diesel engine, with 16+8 gears, and can also be equipped with 24+8 gearboxes to flexibly adjust the speed.The 120HP TF agricultural four-wheel drive tractor is matched with a TF axle with a high ground clearance, which can be operated without being hindered by environmental factors.


Product Advantage

1.Engine : Weichai,Huafeng, Laidong, Changchai, Yunnei and other well-known brands.

High horse power, low fuel consumption, reliable performance ,long lasting durability ,comprehensive after sale services.

2.Axle: Patented axle.

Made of high -strength steel ,enhanced chassis with strong load bearing capacity ,key components adopted imported bearings ,which operate smoothly and reliably,adjustable suspension system to enhance driving comfort.

Chassis

3.Independently assemble the chassis to control the quality of the main parts.

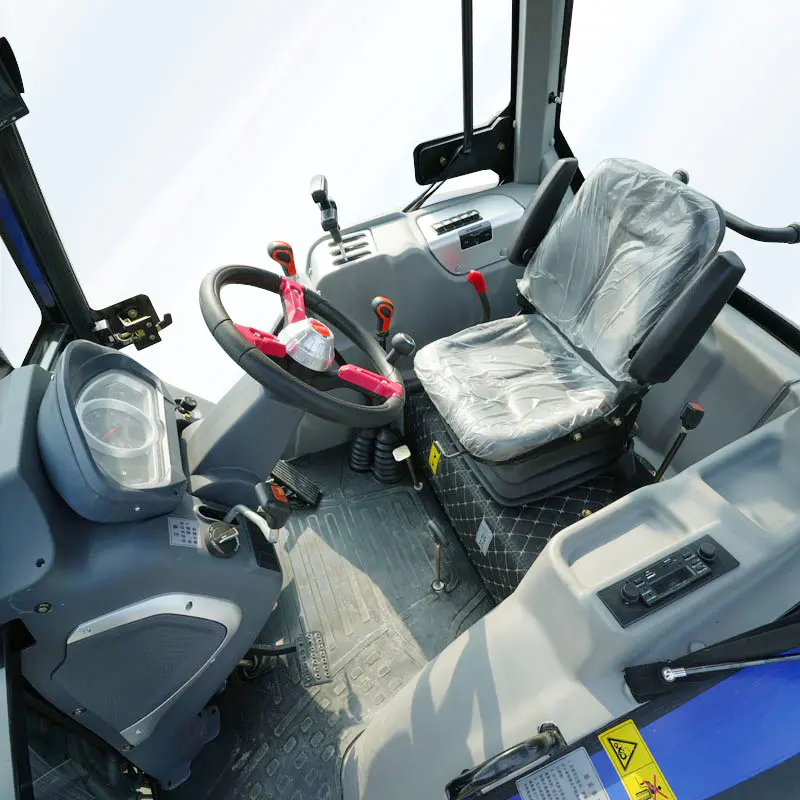

4.Cab: Electrophoretic paint

Rustproof, sturdy and durable.

8+2, 8+8, 12+8, 12+12 are available.

5.Radiator: Large capacity radiator with high heat dissipation efficiency.

6.Tank: Made of high-quality materials, leak proof, large capacity, extending battery life.


Product Parameters

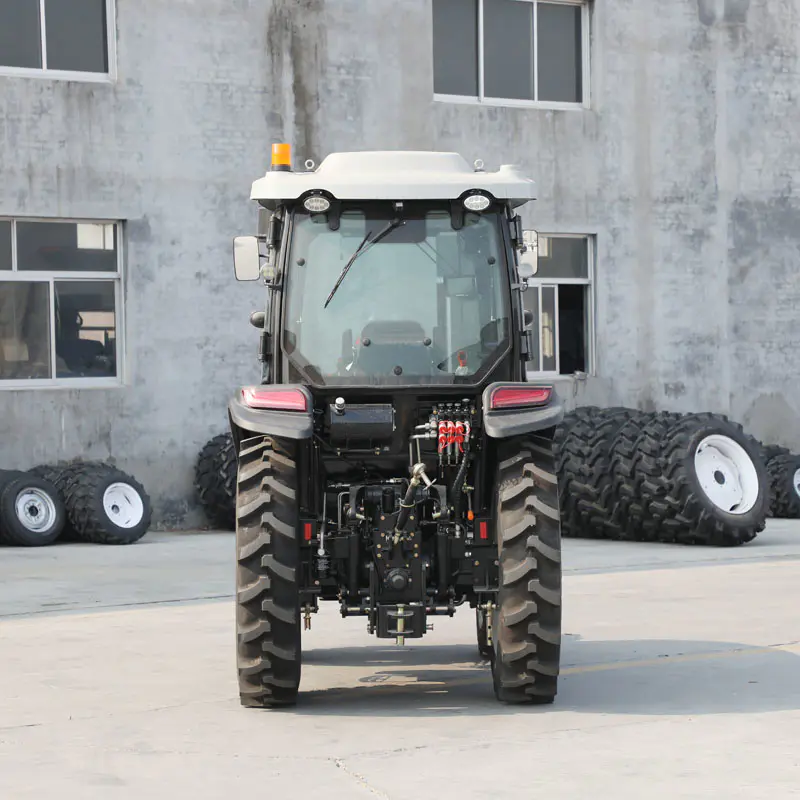

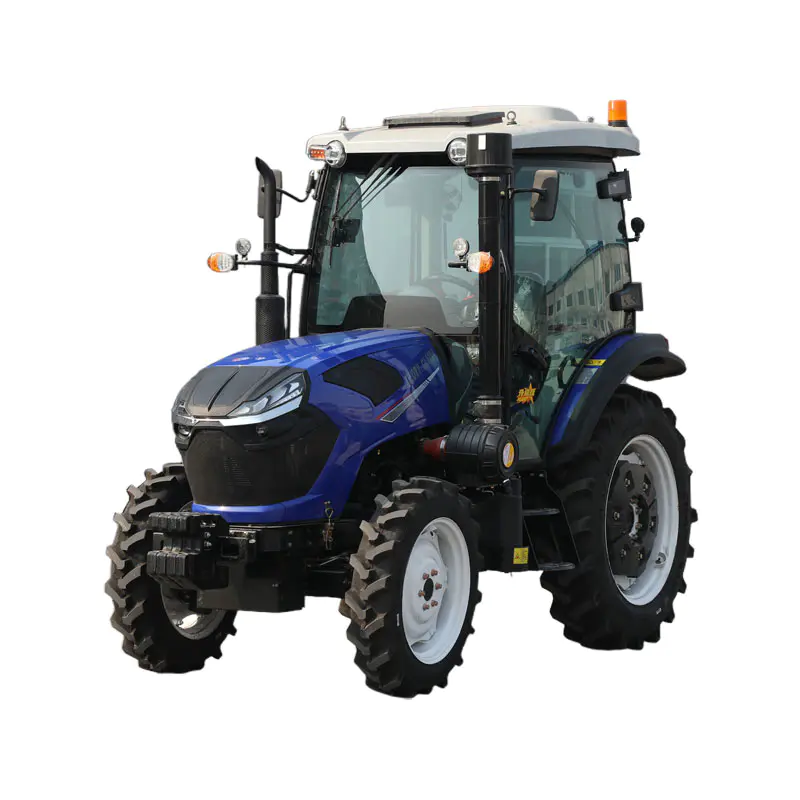

120HP TF Farm tractor
Product model GL1204-TF
Overall dimensions (mm) 5050×2400×3000
Wheelbase (mm) 2630
Minimum usable mass (kg) 4912(safety rack)/5212(cab)
Minimum ground clearance (mm) 470
Engine emissions National Second Engine
Engine brand Huafeng4105T(Lovol Model)
Engine type Inline 4 cylinder
Engine calibration power (KW) 88.2
Engine calibration speed (r/min) 2200
Clutch type 14 inch Double acting clutch
Number of gears in the gearbox 16+8(optional24+8)
Axle TF
Tire specifications 13.6-24/18.4-34
Power output speed (r/min) 760/850
Hydraulic lifting system type
Maximum lifting force (KN) ≥31.7
Traction force (KN) ≥42.48


120hp Tf Farm Tractor120hp Tf Farm Tractor



Hot Tags: 120HP TF farm tractor, China farm machinery, Tractor supplier Asia, GLORY TF series, High-power cultivation equipment
