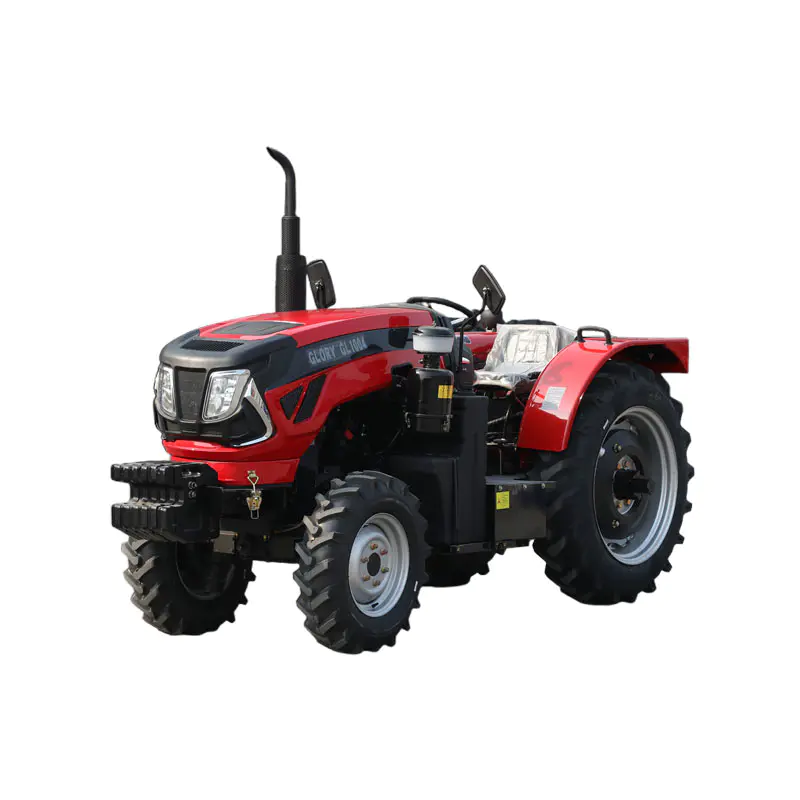

The 100HP TD3S farm tractor is a 4x4 compact tractor produced by our factory and sold directly, because we are factory direct sales, so we have a more complete quality assurance system, This tractor features a 12-inch double-acting clutch for added power,100HP TD3S farm tractor uses a 100 horsepower in-line four-cylinder engine, with strong power, we increase the range of the tractor by increasing the fuel tank, so that it can work all day.
Product Advantage
1.Engine : Weichai,Huafeng, Laidong, Changchai, Yunnei and other well-known brands.
High horse power, low fuel consumption, reliable performance ,long lasting durability ,comprehensive after sale services.
2.Axle: Patented axle.
Made of high -strength steel ,enhanced chassis with strong load bearing capacity ,key components adopted imported bearings ,which operate smoothly and reliably,adjustable suspension system to enhance driving comfort.
Chassis
3.Independently assemble the chassis to control the quality of the main parts.
4.Cab: Electrophoretic paint
Rustproof, sturdy and durable.
8+2, 8+8, 12+8, 12+12 are available.
5.Radiator: Large capacity radiator with high heat dissipation efficiency.
6.Tank: Made of high-quality materials, leak proof, large capacity, extending battery life.
Product Parameters
| 100HP TD3S farm tractor | |
| Product model | GL1004-TD3S |
| Overall dimensions (mm) | 4030×1750×2700 |
| Wheelbase (mm) | 2050 |
| Minimum usable mass (kg) | 4412(safety rack)/4712(cab) |
| Minimum ground clearance (mm) | 380 |
| Engine emissions | National Second Engine |
| Engine brand | Huafeng4105T |
| Engine type | Inline 4 cylinder |
| Engine calibration power (KW) | 73.5 |
| Engine calibration speed (r/min) | 2200 |
| Clutch type | 12 inch Double acting clutch |
| Number of gears in the gearbox | 12+12 |
| Axle | TD3S |
| Tire specifications | 12.4-24/16.9-34 |
| Power output speed (r/min) | 760/850 |
| Hydraulic lifting system type | Strong pressure dual oil cylinder |
| Maximum lifting force (KN) | ≥17.64 |
| Traction force (KN) | ≥22.12 |
