Product Description

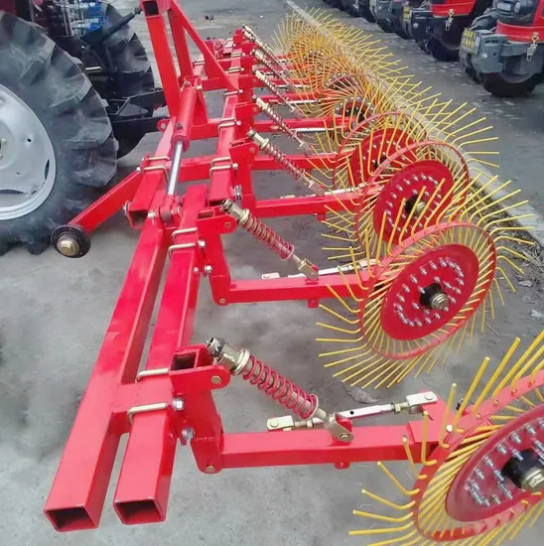

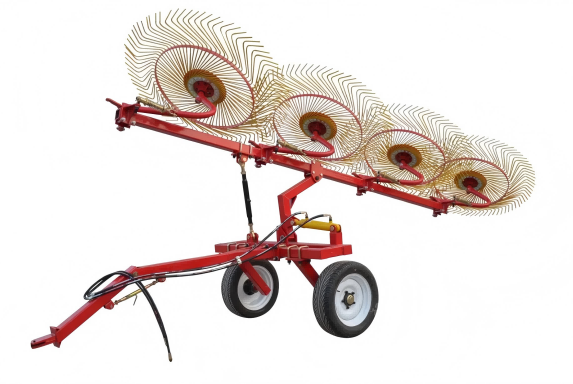

This series of tractor hay rake is matched with four-wheel tractor.The working part is a couple of tine discs with raked teeth.The machine passes the grass from one tine disc to the next in sequence until rakes the grasses to a loose and ventilated strips.
Product Advantages

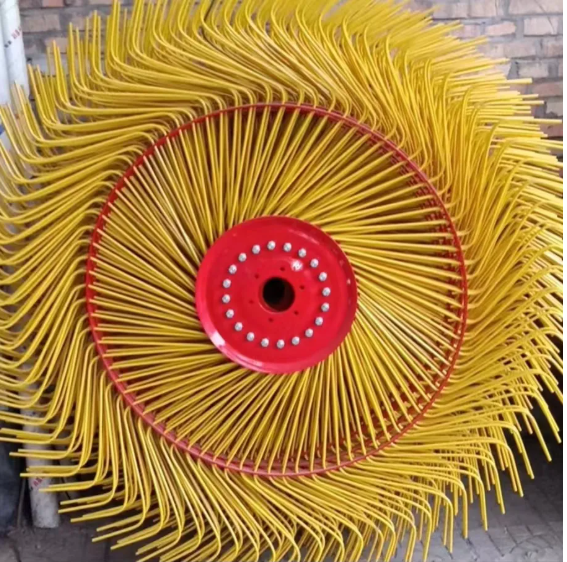

GLORY hay rake tines is 65Mn spring steel to keep durable and it has good combing effect and strong contouring performance.

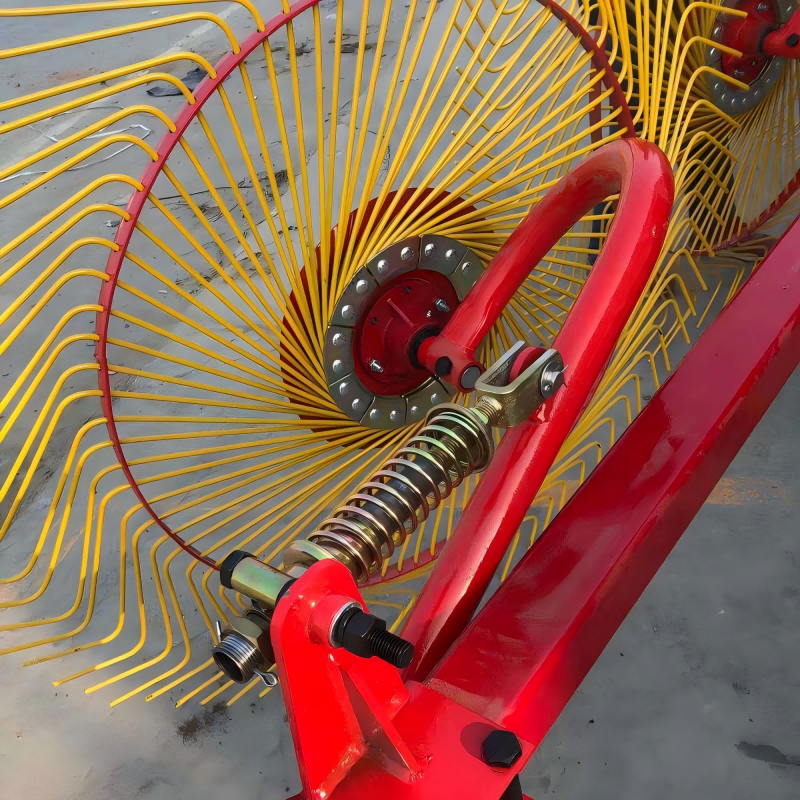

The tines are radiated,can eliminate the influence of wind and facilitate the passage of dust.The tension spring is used to control the pressure of the tine disc on the ground, and the pressure can be adjusted by stretching the adjustment plate according to the conditions of the crop and the ground.
GLORY hay rake not only can rake but also can turn the grasses(the grass strips can be spread out again).
Product Parameters
| Model | 3.0 | 4.0 | 4.8 | 6.0 | 7.0 |
| Working width | 3 m | 4m | 4.8m | 6m | 7m |
| Number of tine discs | 4 | 6 | 8 | 8 | 10 |
| Number of tines for each disc | 40 | 40 | 40 | 80 | 80 |
| Collect grass width | 0.8-1.5m | 0.8-1.5m | 0.8-1.5m | 0.8-2m | 0.8-2m |
| Working efficiency | 1-3 ha/h | 2-5ha/h | 4-6ha/h | 7-14ha/h | 8-15ha/h |
| Approx.weight | 200kg | 295kg | 345kg | 920kg | 1000kg |
| Matched power | 20-30hp | 30-40hp | 40-50hp | 60-100hp | 80-120hp |
| Linkage | Tractor 3-point mounted | Tractor trailed | |||
FAQS
Q: Why choose us?
A: This tractor hay rake could be used together with our tractor flair mower; it can rake the three grass swath which cut to be a even one that is helpful for the subsequent bundling work.
Q: What's your payment terms?
A: Normally we use T/T, also we accept other payment terms, such as L/C.
