Construction and maintenance of mini excavators
Mini excavator construction innovation and intelligent maintenance: small body carrying large projects

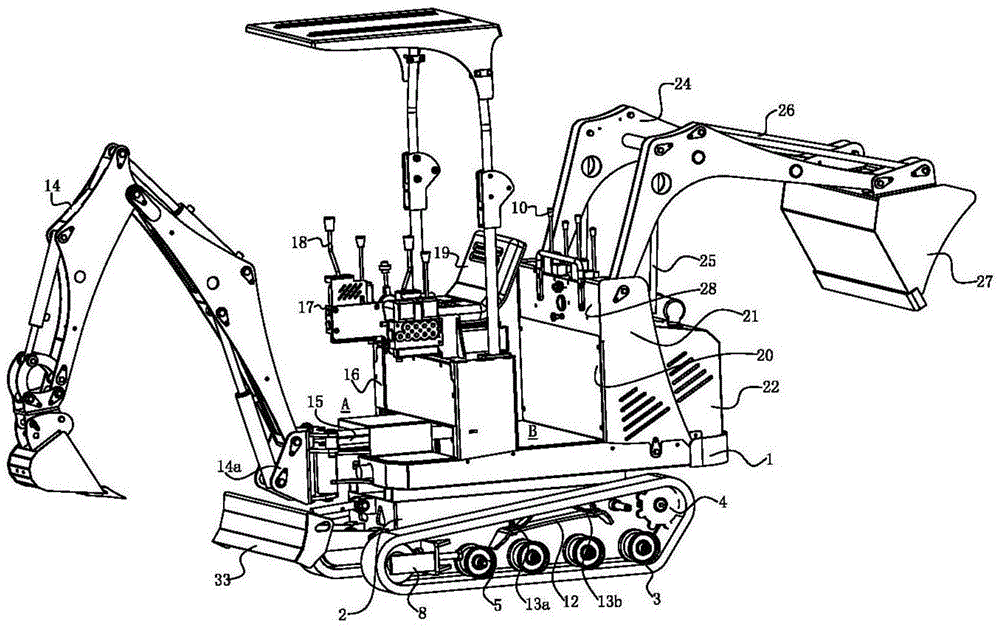

1、 Analysis of the Construction of Mini Excavators: Four Dimensional Technology Reshaping the 'Space Magician'
Chassis and walking system:

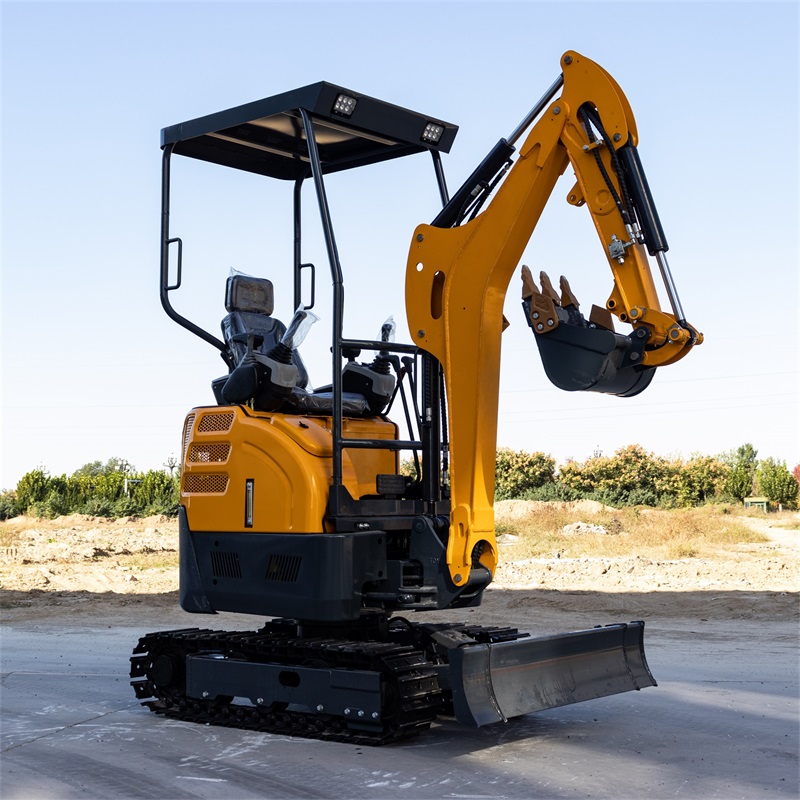

Tailless turning design: Models such as Sany SY18U adopt a "zero tail protrusion" structure, with a tail turning radius of only 0.86 meters, allowing for 360 ° free rotation in narrow tunnels without colliding with walls. At the same time, our 0.8ton mini excavator can also achieve a turning radius of 1.1m, allowing for free and flexible operation in narrow spaces.
Adjustable track frame: The track gauge can be freely adjusted (such as SY16C supporting 980-1350mm expansion and contraction), making it easy to cross narrow alleys of 1 meter. The rubber track grounding pressure is as low as 25kPa, protecting the paved ground.
Self lubricating bearings: The Yanmar chassis uses iglidur G series plastic bearings instead of traditional ball bearings, which are anti fouling, anti rust, and maintenance free, increasing the service life by three times.

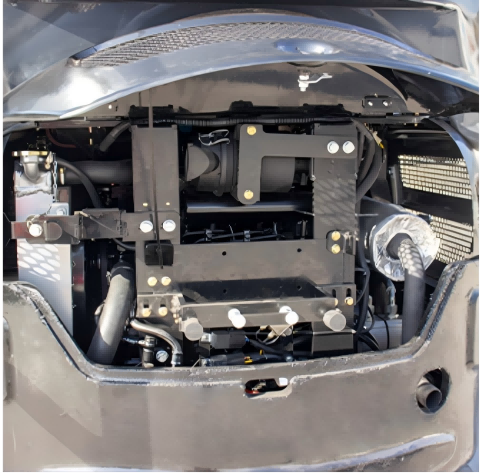

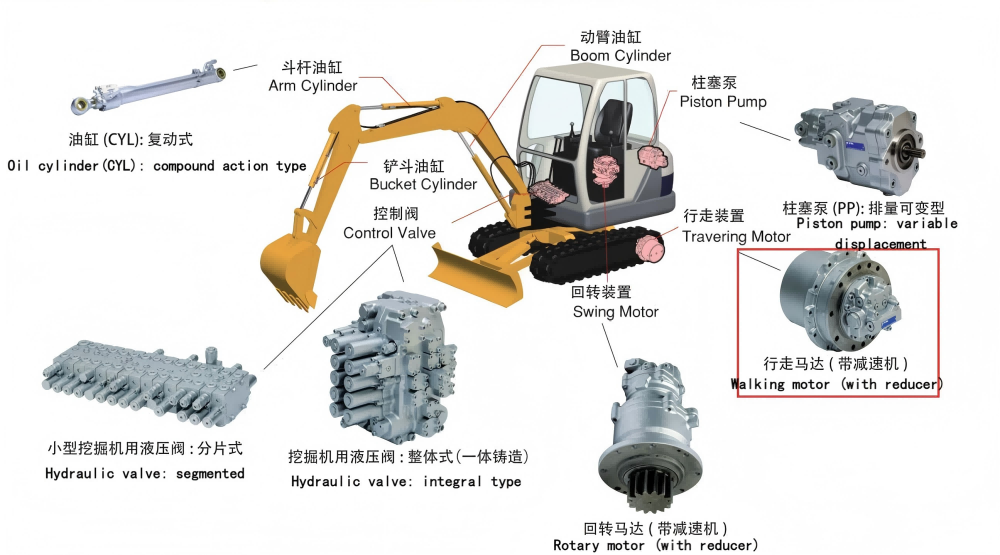

Power and Hydraulic System:
Dual mode power revolution: The small excavator adopts Kubota KX019, which supports diesel/electric one click switching, a 20kWh battery pack provides 8-hour range, and indoor operation noise is as low as 66 decibels.
Intelligent hydraulic control: Load sensitive technology (such as Shengang SK35SR-6) achieves flow distribution accuracy of ± 1.8%, composite action response speed of 0.7 seconds, and energy consumption reduction of 22%.
Enhancement of working equipment:
Wear resistant structure: The articulated joint of the compact excavator's boom has undergone carburizing heat treatment (hardness HRC55+), and the bucket is welded with Hardox500 wear-resistant plate (hardness HB500), extending its service life by 30%.
Side moving arm patent: Kubota U-15-3s achieves left deviation of 595mm/right deviation of 350mm, and wall mounted excavation does not require moving the body.
Rotary device, 360 ° all-round operation, flexible to adapt to various working environments.
Human computer interaction upgrade
Roll over resistant cab: certified by ROPS/FOPS (resistant to 16 tons of static pressure), equipped with floating seats, LCD touch screen, and AI surround view monitoring, reducing blind spots by 40%.
2、 Maintenance and Daily Maintenance:
The Golden Rule of Daily Maintenance
Hydraulic oil management: Use anti-wear hydraulic oil No. 68 in summer and low viscosity oil No. 32 in winter. Regularly check the cleanliness of NAS (≤ level 8) to prevent pump and valve wear.
Butter filling cycle: Inject grease every 10 days for the rotary bearing, and inject high-pressure grease every 4-8 hours for the hinge point of the working device to avoid the pin shaft getting stuck.
Key component life extension technique:
Track system: Adjust the tension to avoid being too loose (jumping teeth) or too tight (accelerating wear); Regularly clean the gravel to prevent the sealing failure of the supporting wheel.
Maintenance of the "Wear Iron Triangle":
Track shoe inspection for cracks/500h
Drive sprocket teeth are ground flat and replaced immediately
Inert wheel seal oil leakage needs to be repaired
According to Stowers CAT statistics, 80% of chassis failures are caused by these three types of components.
Guidelines for handling extreme working conditions:
High altitude operation: The turbocharged engine of the mini excavator has a power compensation of 15%, and the hydraulic system is equipped with a pressure compensation valve to prevent flow loss.
Water wading operation: In the Italian flood rescue, the modern HX35Az achieved a wading depth of 0.8 meters through a sealed circuit module.
Long term storage standards:
Park in a dry room, support the tracks to reduce grounding pressure;
Fill the fuel tank to prevent condensation, retract all hydraulic cylinders to prevent seal aging;
Start once every 3 months to prevent the circuit board from getting damp.
3、 Technological Frontier: Electrification and Intelligent Restructuring of Industrial Ecology
Power Revolution:
Modular battery: Hitachi ZX55U-6EB supports dual drive of commercial power and battery, with 2-hour fast charging to meet 10 hours of operation in 6 hours.
Hydrogen energy test: HD Hyundai has developed a hydrogen fuel engine (HX12) to achieve zero carbon construction.
Predictive maintenance:
IoT remote diagnosis: Sany SY35U is equipped with Hi MATE system, which analyzes oil temperature and vibration data in real time, with a fault warning accuracy rate of 92%.
AR Maintenance Assistance: Kaise Micro Excavator provides VR operation training for small excavators, simulating 30 fault scenarios and improving maintenance efficiency by 40%.
4、 Practical Witness: From Ancient House Restoration to Mining Tackle
Restoration of the residence of a Ming and Qing Dynasty scholar in Taizhou: Kubota U-15-3s small excavator completed the excavation of an underground pipe trench through a 0.85 meter arch, and the lateral movement function of the boom protected the ancient wall with a 95% intact rate.
Underground operations at a Chilean copper mine: A compact excavator with a modified reinforced cab operated continuously for 300 hours without any malfunctions, resulting in a 23% reduction in loading costs.
Tokyo nighttime municipal construction: The pure electric version of the Sany SY19E mini excavator operates silently at 66 decibels, solving the problem of the city's "construction time window".
Conclusion: A small body carries a big future
From the 0.8-ton ultra-thin model to the 4-ton heavy-duty warrior, small excavators are undergoing a triple evolution of precision construction, diversified energy sources, and intelligent maintenance, reshaping the global construction paradigm. With annual sales exceeding 3100 units in the Indian market and an estimated penetration rate of 40% for electric motors by 2025, this technological revolution of "using small to gain big" is destined to uncover a golden opportunity in the trillion dollar market.
Industry maintenance experience:
For compact excavators, precision design is the backbone, while intelligent maintenance is the lifeblood, saving maintenance costs by 1 yuan and reducing repair expenses by 10 yuan.
-
