50HP Farm Tractor Diesel
  • 50HP Farm Tractor Diesel50HP Farm Tractor Diesel

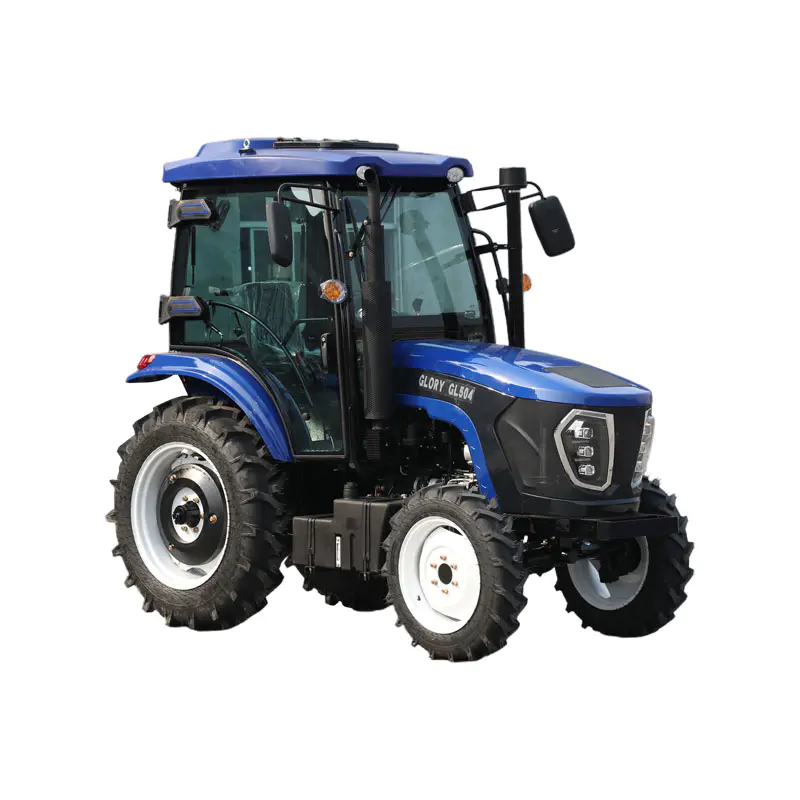

50HP Farm Tractor Diesel

GLORY is the China tractor factory for the 50HP mini tractor with accessories.This 50HP farm tractor diesel is our hot seller. A variety of horsepower mini tractor can be customized. GLORY has 5 workshops and advanced processing and assembly lines, and GLORY is the provider of integrated compact tractor solutions. GLORY also supply spare parts and attachments supports of compact tractor.

Our tractor factory produces 50HP farm tractor diesel with different horsepower, such as 25HP, 30HP, 40HP, 50HP, 60HP, 70HP, 80HP, 90HP and 100HP mini tractor etc.
First, the mini tractor has been upgraded on the chassis. And this mini tractor can be selected with anti-rollover frame, sunshade and cab to meet the different customized requirements of customers. The mini tractor has the characteristics of compact structure, flexible working and easy handling.
The compact tractor also can be used as a yard tractor, and it can be matched with a yard mower for you to trim and take care of the yard. To achieve a multi-purpose, it has been the customer's first choice for yard tractor.
Perfect after-sales service system will ensure our users have no worries.


Product Advantages

50hp Farm Tractor Diesel

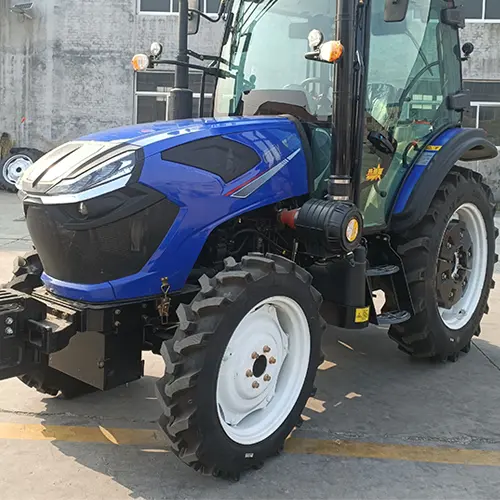

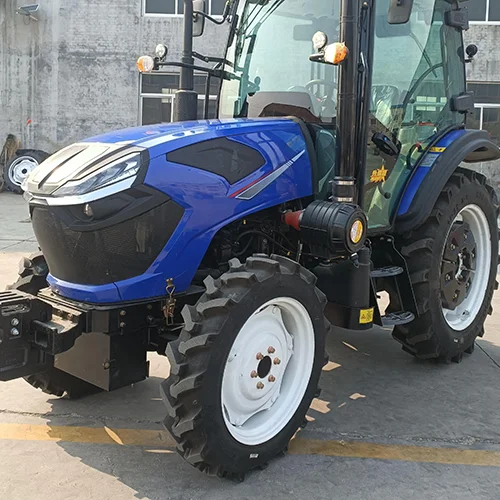

Car Hood

First class streamlined exterior car hood design. This design provides a significant benefit: it expands the field of view. This enhanced feature enables safer operation, precise on-site work, and smoother navigation on different terrains. Overall, it looks clean and atmospheric.

50hp Farm Tractor Diesel

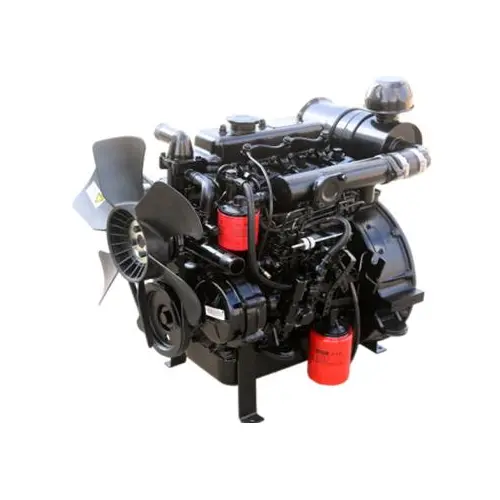

Engine

Standard configuration of Laidong diesel engine. It has good cooling and heat dissipation functions and can work continuously for a long time. At the same time, different brands of engines such as Yunnei, Yangdong, Changchai, Sida, etc. can be selected according to customer needs.

50hp Farm Tractor Diesel

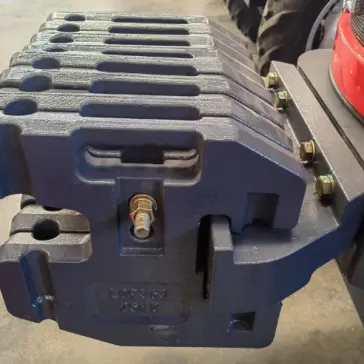

Counterweight

At GLORY, our 50 horsepower mini tractor has scientifically calculated and verified the suitable front to rear weight ratio for the vehicle through long-term industry validation. These counterweights ensure optimized mini tractor traction and stability. This advantage is particularly evident in challenging terrains and when using heavy agricultural machinery.

50hp Farm Tractor Diesel

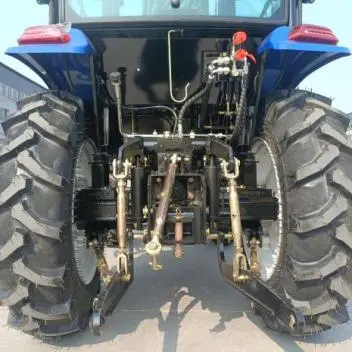

Hydraulic System

The whole vehicle adopts hydraulic steering and hydraulic lifting system functions. The hydraulic lifting system adopts dual hydraulic cylinders for external strong lifting and strong lowering. Has strong lifting power to match various agricultural machinery operations. Achieve more powerful and precise ground joints in tasks such as cultivation and plowing.

50hp Farm Tractor Diesel

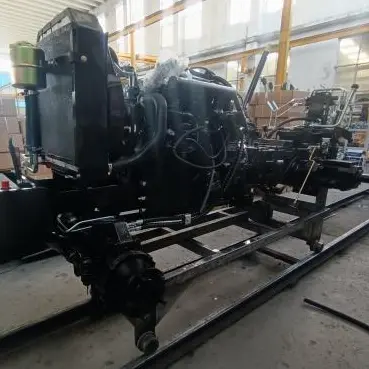

Axle

Our 50 HP compact tractor front axle adopts precision mechanical manufacturing technology, which not only has excellent tensile and torsional material properties in terms of structural strength, but also can meet the common challenges of compact tractor: prevent external contaminants such as water and air particles from entering.

50hp Farm Tractor Diesel

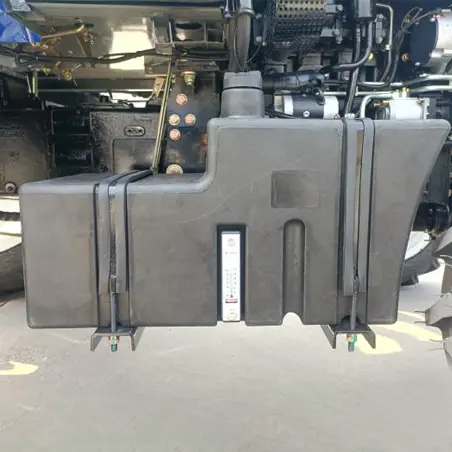

Fuel Tank

This 50 horsepower mini tractor is equipped with a 100L ultra large capacity fuel tank. Can meet the workload demand of one day's agricultural work. The fuel tank adopts electrophoretic paint coating technology. The paint surface has a bright color.


50hp Farm Tractor Diesel


Product Parameters

GL504-TE
Model GL504
Dimensions with frame (mm) 3740×1530×2330
Dimensions with cab (mm) 3740×1530×2530
Wheelbase (mm) 1870
Min operating weight (kg) 1750(Without cab)/1900(With cab)
Min ground clearance (mm) 350
Emission standand National II
Engine standard LaiDong KM495Z
Optional engines Laidong 490T, Yunnei YN25Z, Yangdong 490Z, Changchai 490Z, Sida 490Z
Pattern Inline 4 cylinder
Rated power (KW) 36.8
Rated speed (r/min) 2400
Clutch 10inch ; Dry ; Single disc
Gearbox 8+8(Optional8+2)
Axle TE
Tire 7.50-16/11.2-28
PTO speed (r/min) 540/720
Hydraulic lifting system type Strong pressure double cylinder
Balance weight Front11KG×4/Rear25KG×2


FAQS

Q: Are you a factory or a trading company?

A: We are a professional manufacturer of compact tractors. It has more than 20 years of experience.


Q: How is your quality of your tractor?

A: GLORY uses the patented axle, so we assemble the chassis and axle independently.


Q: What about the tractor spare parts?

A: GLORY will suggest you the tractor spare parts list such as four sets for engine, filter, brake block and so on.
