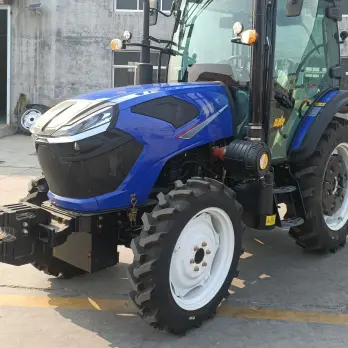

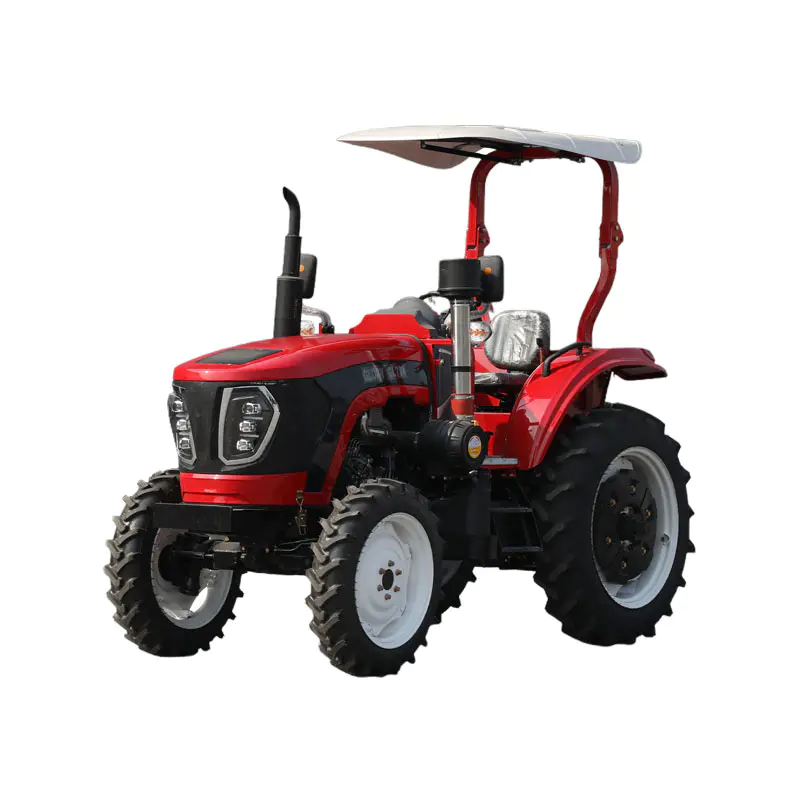

Our tractor factory produces 70HP farm tractor diesel with different horsepower, such as 25HP, 30HP, 40HP, 50HP, 60HP, 70HP, 80HP, 90HP and 100HP mini tractor etc.
This mini tractor features an upgraded streamlined hood. It has beautiful appearance and our clients can choose colors according to one's own needs. The gearbox uses engagement sleeves for shifting. The characteristic of smooth gear shifting without gear jamming increases the service life of the gearbox gears. The matching is a shuttle shift with 12+12 gears. The front and rear types of mini tractor can change direction conveniently and quickly, which is convenient for field operations. And this compact tractor has a small turning radius, making it particularly suitable for working on small farmland plots. Flexible operation and reliable performance.
The compact tractor also can be used as garden tractor, which can be paired with a mower for you to trim and tidy up the garden. To achieve a multi-purpose, a garden tractor is also very popular with our customers.
Perfect after-sales service system ensures that users have no worries.
Product Advantages
Made of high-strength steel 40CrNiMo material. This material has higher strength, better toughness, and superior yield strength compared to other suppliers. Thus ensuring the smooth operation of the vehicle. Ensure that there will be no shaft jamming or breakage even in different work environments and harsh weather conditions.

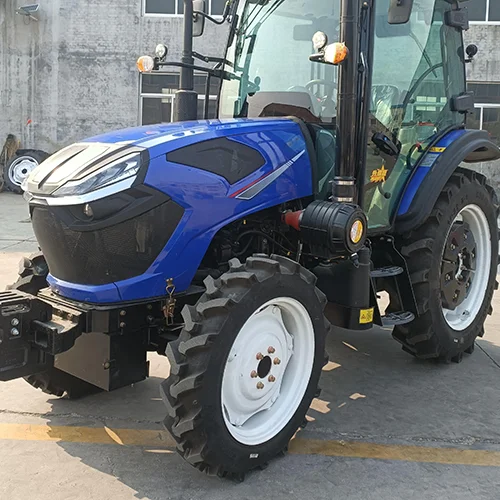

At GLORY, our 70 horsepower mini tractor has scientifically calculated and verified the suitable front to rear weight ratio for the vehicle through long-term industry validation. And our counterweight blocks are matched with high-quality bolts to ensure the stability of the counterweight. And it has good rust and corrosion resistance. Can be used with peace of mind for a long time.
The electrophoretic paint of the product has a bright color. The process uses one coat of paint and two coats of baking paint to make the paint surface more wear-resistant, corrosion-resistant, and less prone to peeling. And it is possible to customize colors, neutral products, or brand customization.

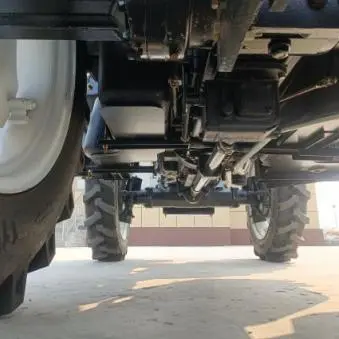

Our 70 horsepower compact tractor front axle has excellent tensile and torsional material properties in terms of structural strength. And by ensuring a sealed environment, the possibility of internal gear bearing wear and premature damage is reduced. To ensure that the axle bearings and joints can operate under optimal conditions.

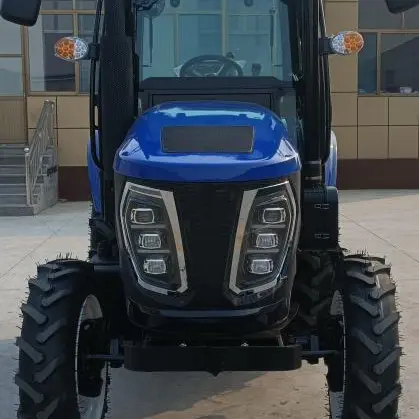

The lighting system has been comprehensively upgraded. The entire vehicle is equipped with LED lights, which provide bright illumination, are economical and energy-saving, have strong penetration and a long service life. LED lights are installed on the hood and cab, facilitating night work just like during the day.

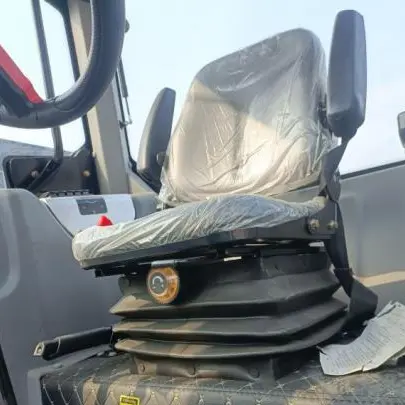

Adopting ergonomic shock-absorbing seats. It can effectively protect the waist in harsh road conditions and bumpy working environments. The seat can be adjusted back and forth, up and down to achieve the most comfortable state for the driver. The softness and hardness of the seat can also be adjusted.
Product Parameters
| GL704-TBS | |
| Model | GL704 |
| Dimensions with frame (mm) | 4030×1750×2500 |
| Dimensions with cab (mm) | 4030×1750×2700 |
| Wheelbase (mm) | 2050 |
| Min operating weight (kg) | 2380(Without cab)/2580(With cab) |
| Min ground clearance (mm) | 380 |
| Emission standand | National II |
| Engine standard | LaiDong KM4102Z |
| Optional engines | YTO 4108Z, Yunnei YN38T, Yangdong 4100T, Changchai 495T, Sida 4102Z |
| Pattern | Inline 4 cylinder |
| Rated power (KW) | 51.5 |
| Rated speed (r/min) | 2400 |
| Clutch | 10inch ; Dry ; Double disc |
| Gearbox | 12+12(Optional16+8) |
| Axle | TBS |
| Tire | 8.3-24/11-32 |
| PTO speed (r/min) | 540/760 |
| Hydraulic lifting system type | Strong pressure double cylinder |
| Balance weight | Front25KG×6/Rear25KG×2 |
FAQS
Q: How is your quality of your tractor?
A: GLORY uses the patented axle, so we assemble the chassis and axle independently.
Q: Do you need distributors in the local for your tractor?
A: Yes, we are quite interested in this business cooperation.
We'd like to cooperate with some local distributor of tractor or agricultural machinery to sell more.
Q: What about the tractor spare parts?
A: GLORY will suggest you the mini tractor spare parts list such as four sets for engine, filter, brake block and so on.
