Our tractor factory produces 90HP farm tractor diesel with different horsepower, such as 50HP, 60HP, 70HP, 80HP, 900HP, 100HP, 110HP, 120HP , 130HP, 140HPand 150HP mini tractor etc.
The farm tractor wheelbase is short. Its structure is small and compact, its work is flexible, it's turning radius is small and its optional wheelbase range is wide. The farm tractor wheelbase can be adjusted to fit the different rows spacing agricultural work. Standard 12+12 gear with optional 16+8 gear.
The small tractor also can be used as a snow tractor. It's suitable for winter in some cold countries, with snowboard finishing the courtyard and finishing the snow on road. And the snow tractor tire has a certain anti-skid performance and better grip. The snow tractor engine can work normally in winter.
Perfect after-sales service system to ensure that our users have no worries.
Product Advantages

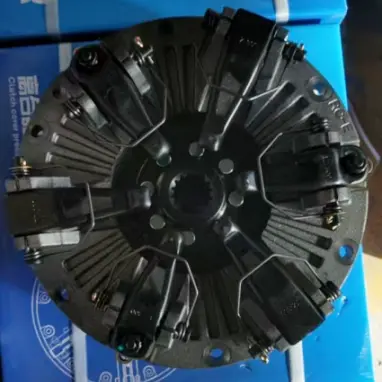

This farm tractor adopts a double acting clutch. It can independently control the small tractor's driving speed and power output. Step on the clutch halfway, the speed and power input are interrupted, and the power output remains working; Stepping on the clutch to the bottom cuts off all power sources for speed and power output.
The electrophoretic paint of this product is bright in color. This process uses one layer of paint and two layers of baking varnish to make the paint surface more wear-resistant, corrosion-resistant and less prone to peeling. And customized colors, neutral products or brand customization are available.

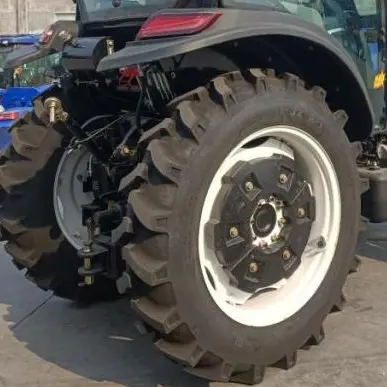

This 90 farm tractor uses front and rear matching tires with strict speed ratios to achieve more stable and efficient speed transmission during operation. And choose well-known domestic brand tires. Having good grip and stability provides better traction for farm tractor.

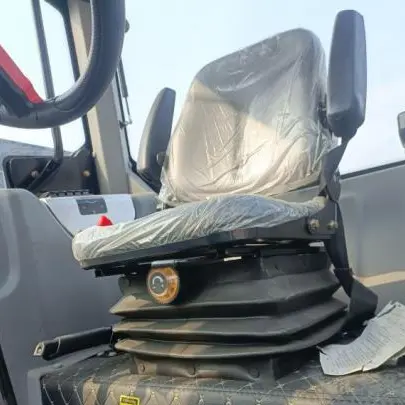

This driver's seat is made of soft and comfortable materials and features an ergonomic shock-absorbing design. It can well protect the driver's waist during the driving process. It can also be equipped with spring seats, spring suspension seats and air spring suspension seats to meet different customization requirements.

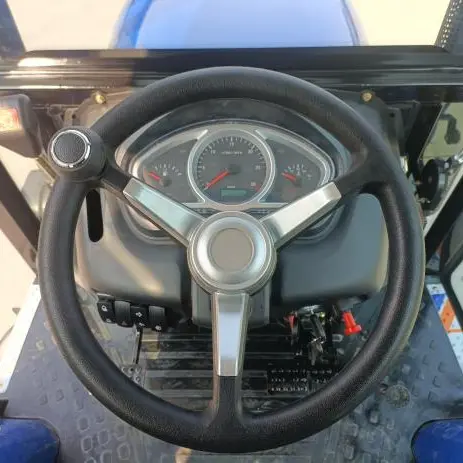

Under prolonged farm operation, one may feel fatigued and find it difficult to operate the small tractor. We have to mention our hydraulic steering function. With the assistance of the hydraulic system, it can help you turn more effortlessly and easily in any terrain.

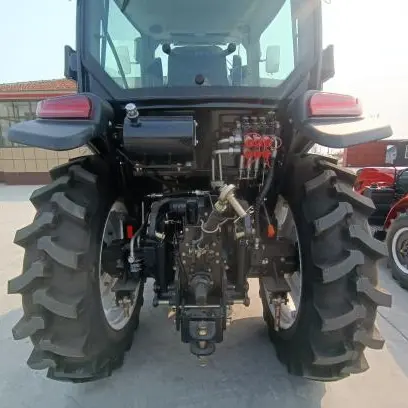

This high-strength PTO shaft ensure stable power output to drive the smooth operation of agricultural machinery. Our small tractor has optional output speeds of 540 rpm and 720 rpm. It can ensure precise power transmission to meet different mechanical needs. This not only ensures efficiency, but also expands its application scope, suitable for a wide range of agricultural operations.
Product Parameters
| GL904-TBL | |
| Model | GL904 |
| Dimensions with frame (mm) | 4030×1750×2500 |
| Dimensions with cab (mm) | 4030×1750×2700 |
| Wheelbase (mm) | 2050 |
| Min operating weight (kg) | 2580(Without cab)/2780(With cab) |
| Min ground clearance (mm) | 380 |
| Emission standand | National II |
| Engine standard | LaiDong KM4102ZT |
| Optional engines | Laidong 4108T, Yunnei YN38T, Yangdong 4105T, Changchai 4102T, Sida 4105T |
| Pattern | Inline 4 cylinder |
| Rated power (KW) | 66.2 |
| Rated speed (r/min) | 2400 |
| Clutch | 11inch ; Dry ; Double disc |
| Gearbox | 12+12(Optional16+8) |
| Axle | TBL |
| Tire | 9.5-24/14.9-30 |
| PTO speed (r/min) | 540/760 |
| Hydraulic lifting system type | Strong pressure double cylinder |
| Balance weight | Front25KG×8/Rear45KG×4 |
FAQS
Q: Are you a factory or a trading company?
A: We are a professional manufacturer of farm tractors. It has more than 20 years of experience.
Q: What about the delivery time?
A: Within 7-10 days not including the shipping time.
Q: What's your MOQ?
A: 1 set of farm tractor.
