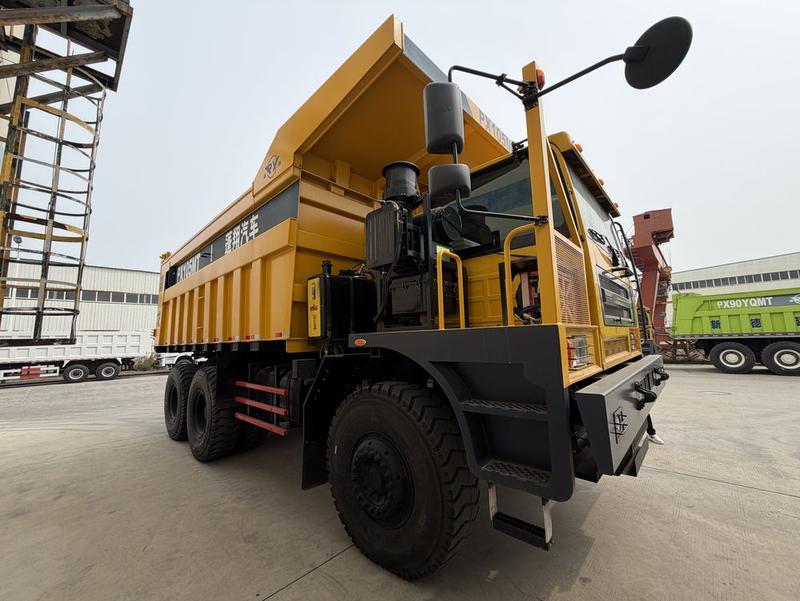

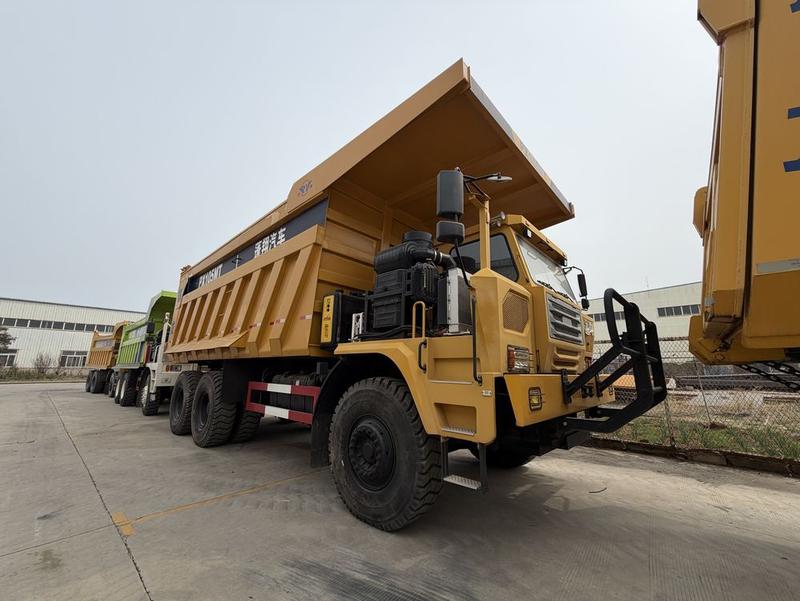

PX115 80 Ton Off-road Mining Dump Truck

The PX115 off-road mining dump truck is a three-axle wide-body mining hauler developed for high-efficiency transport of ore, rock and earth in open-pit mines, quarries and large construction sites. With a rated load of 80,000 kg and a gross vehicle weight of 115,000 kg, it combines a 45 m³ mining body with a 765 hp engine for reliable payload performance on demanding haul roads.

Powered by a Weichai WP14TG765E304 engine (Xichai CA6DX3-77GCG31 optional) with a FAST 8DS260 gearbox, the truck is built on a welded semi-rigid box frame with Pengxiang heavy-duty axles. EATON full hydraulic steering and the SORL brake system with exhaust braking ensure precise control and safe stopping under full load. The PX115 is widely used in open-pit mines, quarries, cement plants and large earthmoving projects.

1. Heavy-Duty Mining Body — 45 m³ heaped capacity with a Q355 bottom plate (16 mm) and Q355 side plates (12 mm), fitted with a Hyva 202 front-lift cylinder for fast, reliable dumping of ore and rock.

2. Strong Powertrain — The Weichai WP14TG765E304 765 hp engine (Xichai CA6DX3-77GCG31 optional) matched with a FAST 8DS260 gearbox delivers strong climbing ability and stable high-speed hauling on haul roads.

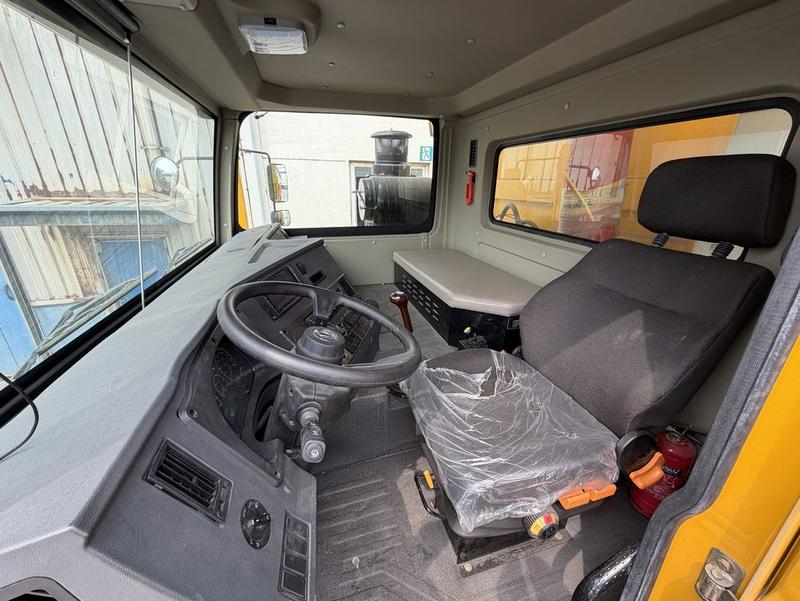

3. Spacious Wide-Body Cab — Reversible wide-body offset cab with electronic air conditioning, fuel preheating, reinforced rearview mirrors and LED side and tail lights keeps operators comfortable and safe during long shifts.

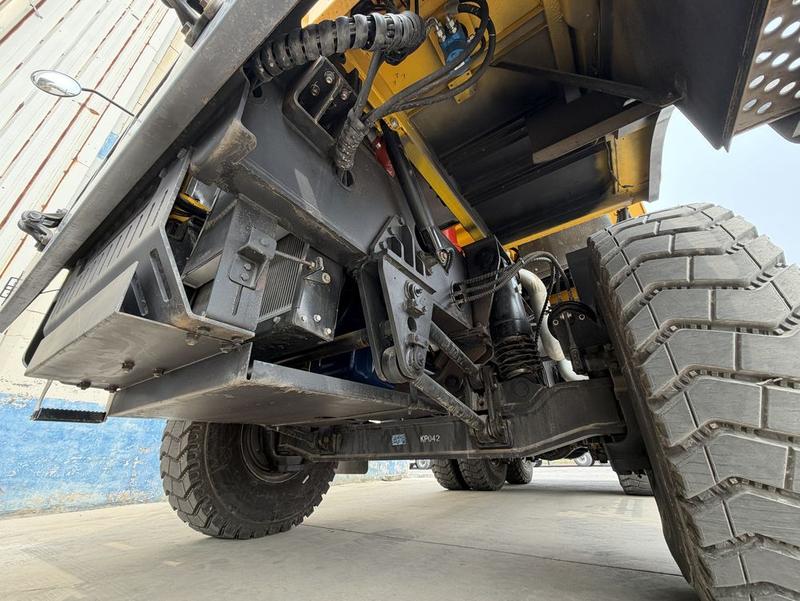

4. Heavy-Duty Chassis and Suspension — Pengxiang 30 t cast steel front axle and 45 t cast steel dual-reduction middle/rear axle with assembled suspension keep the machine stable on uneven haul roads.
