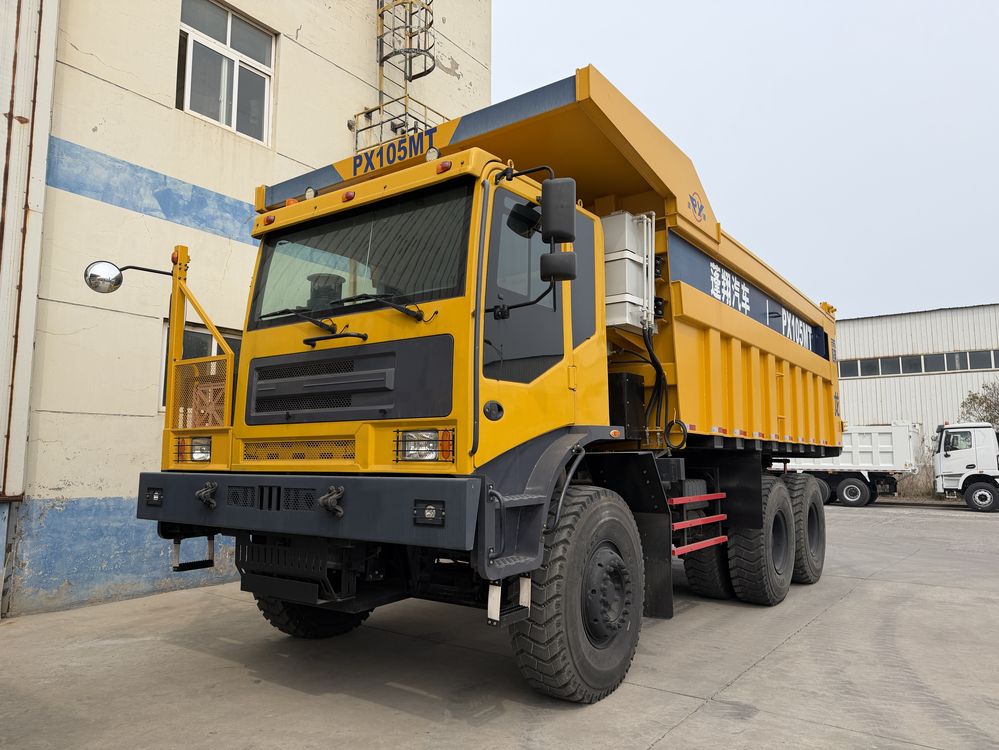

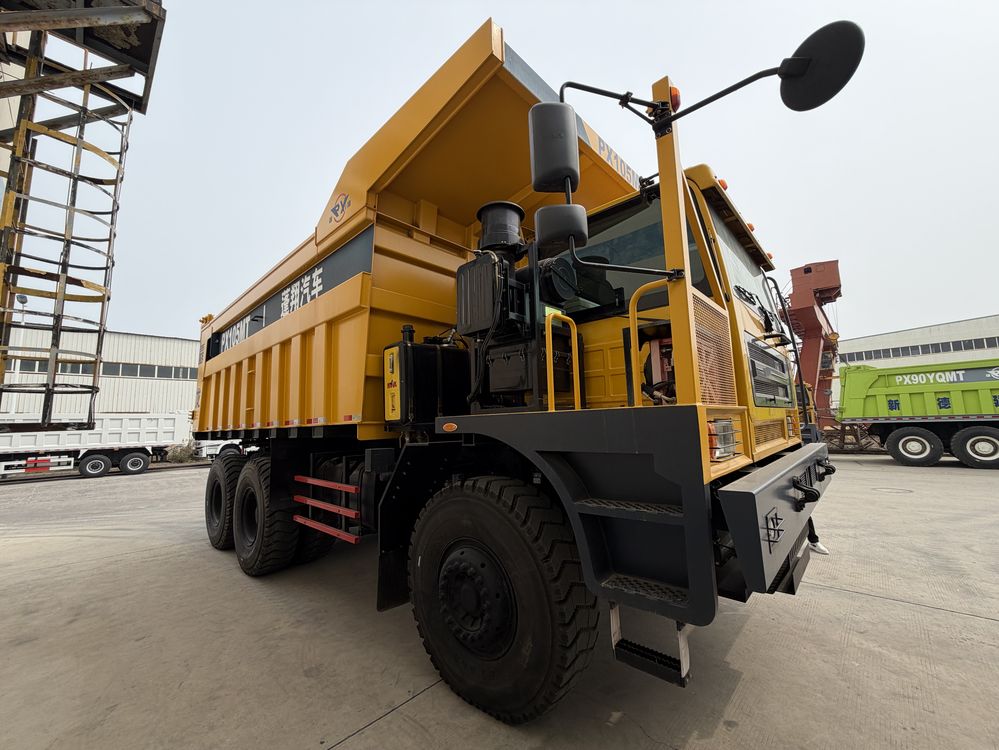

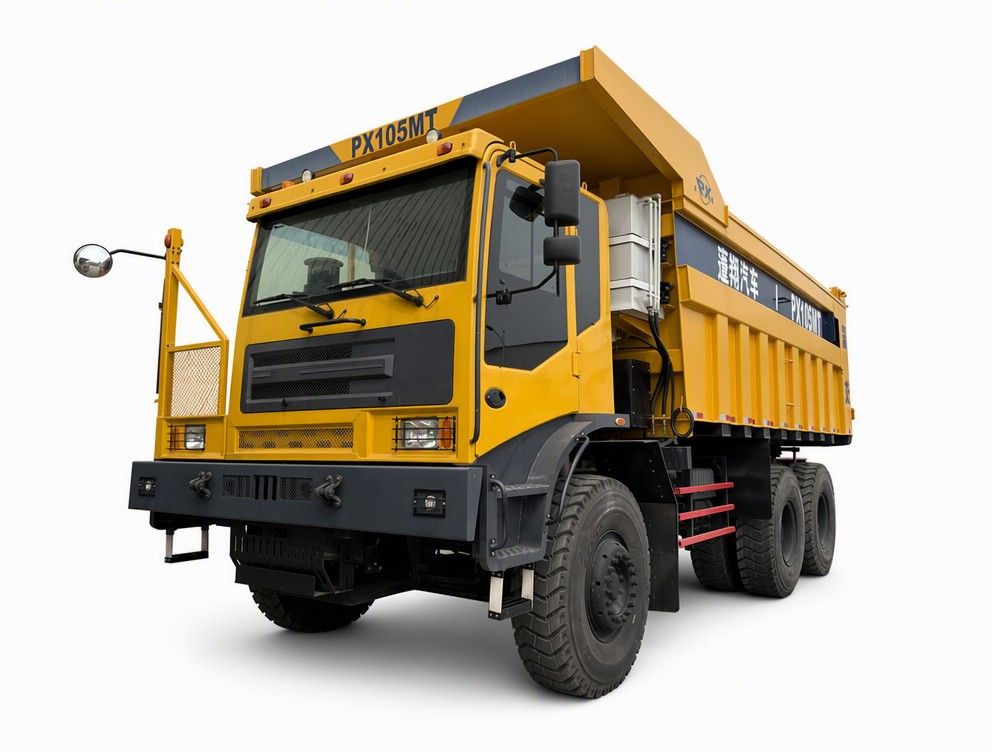

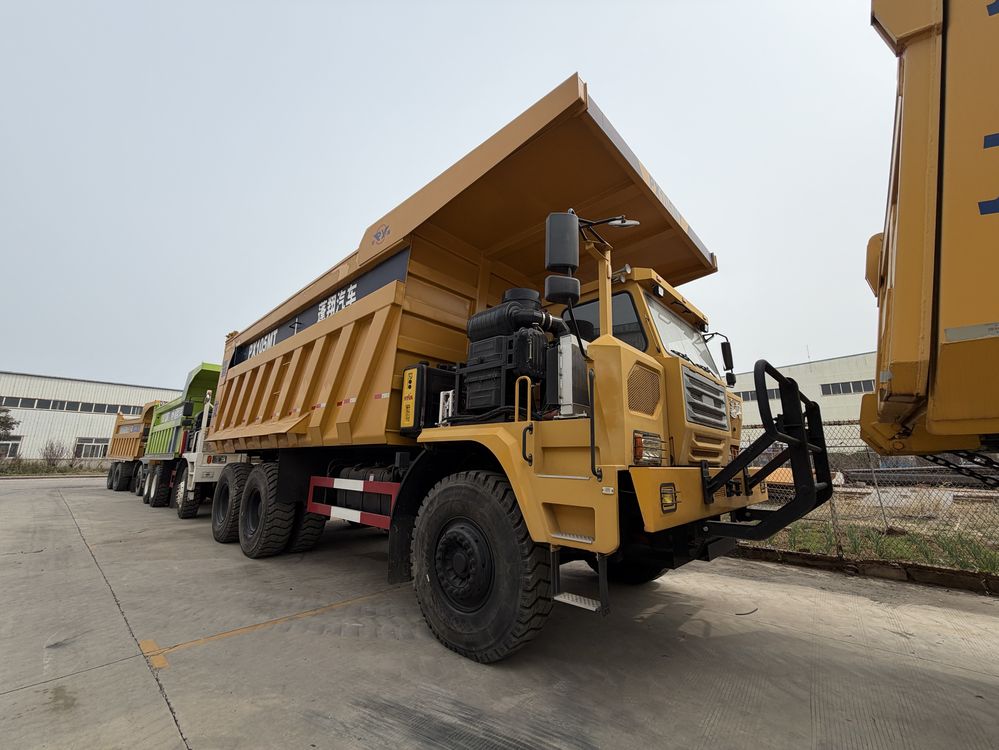

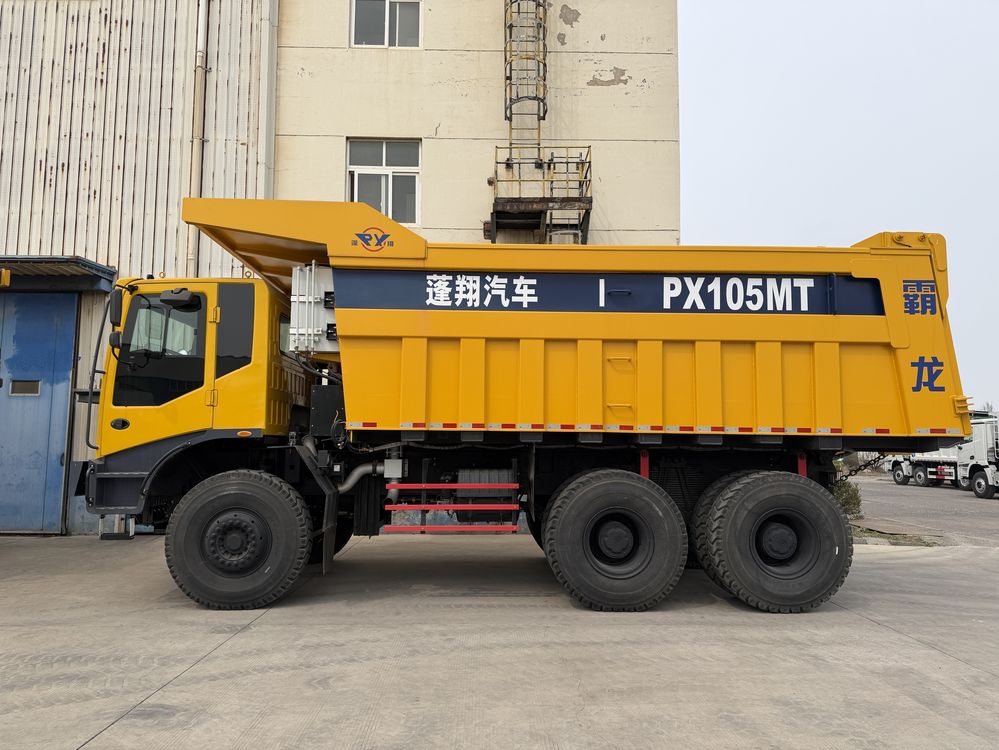

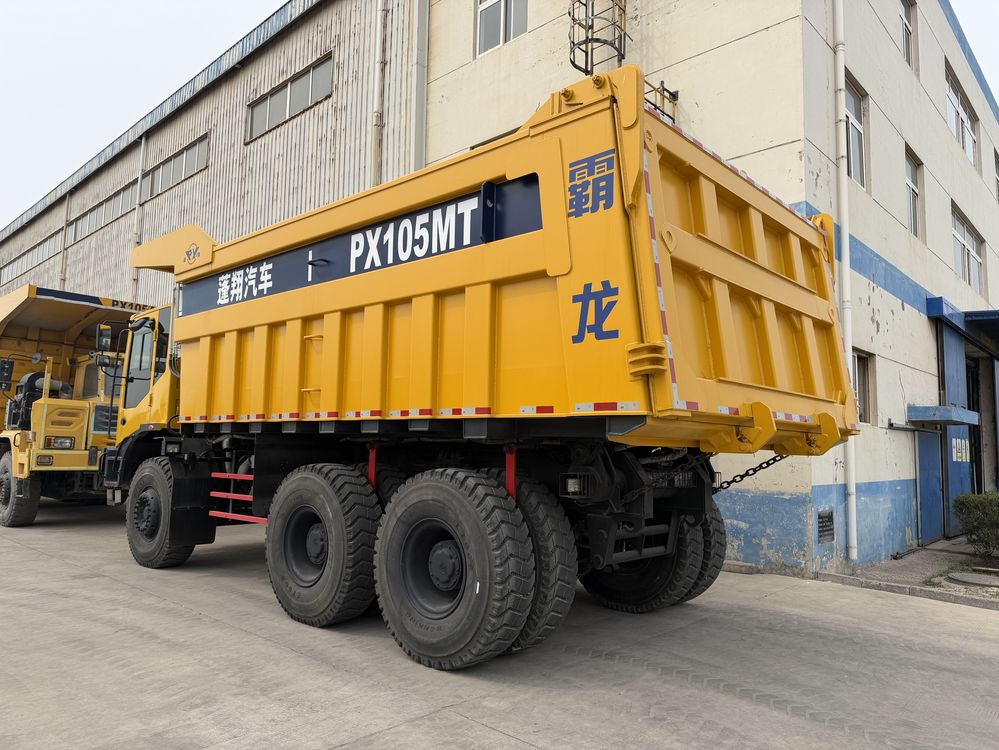

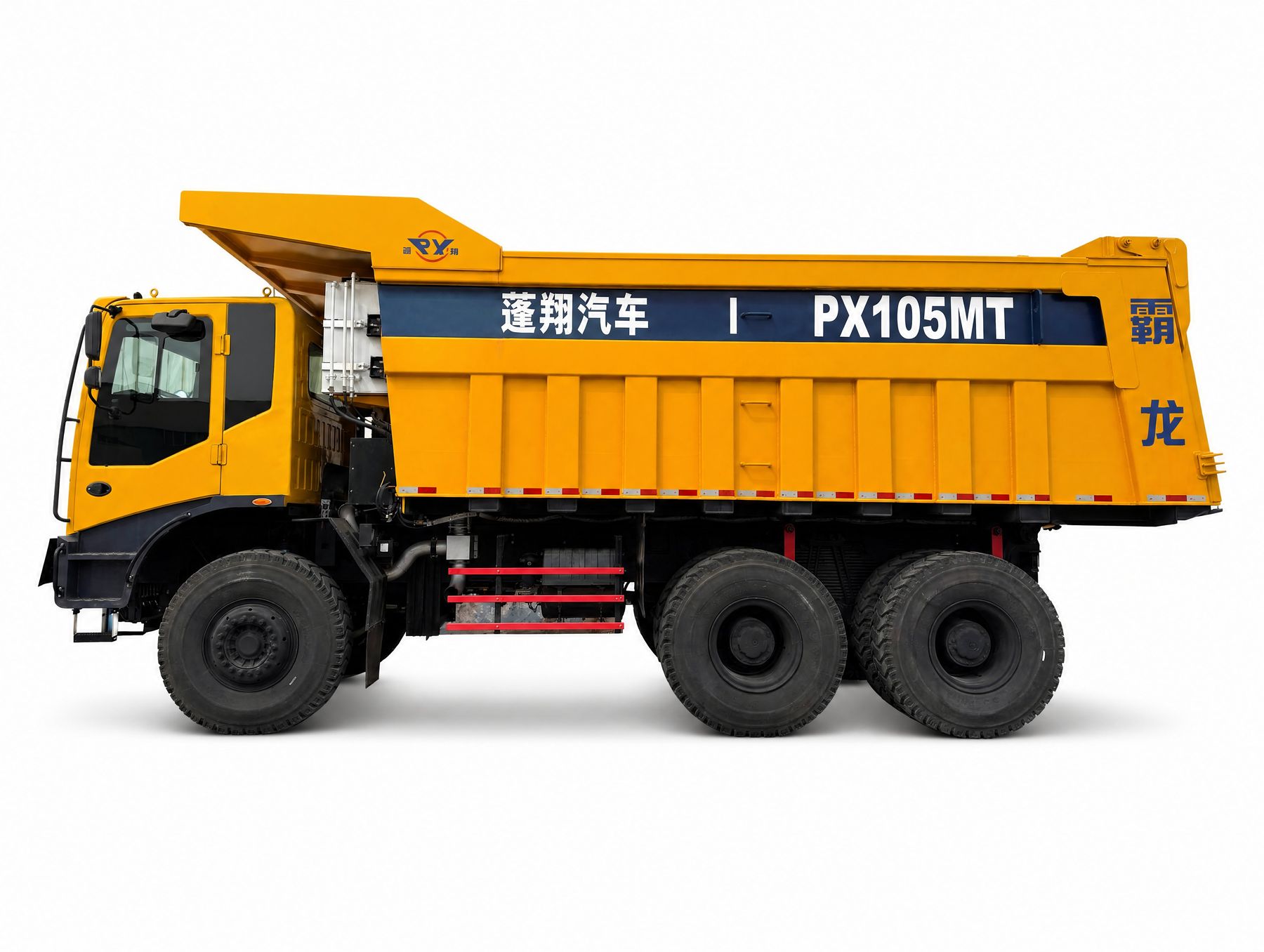

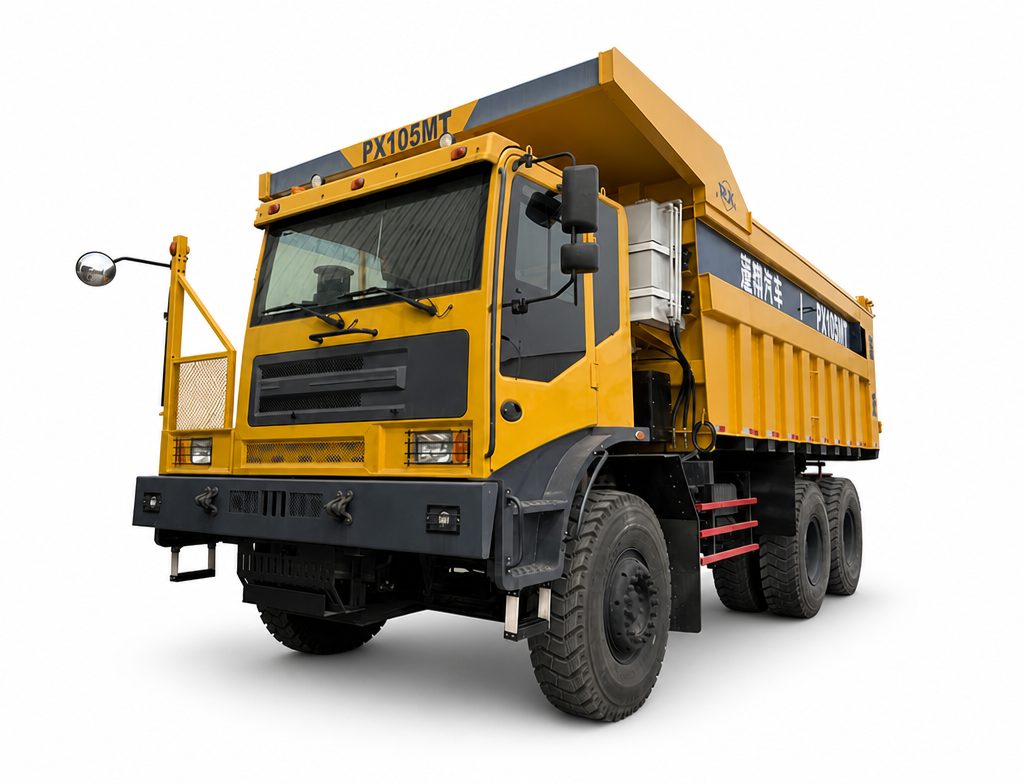

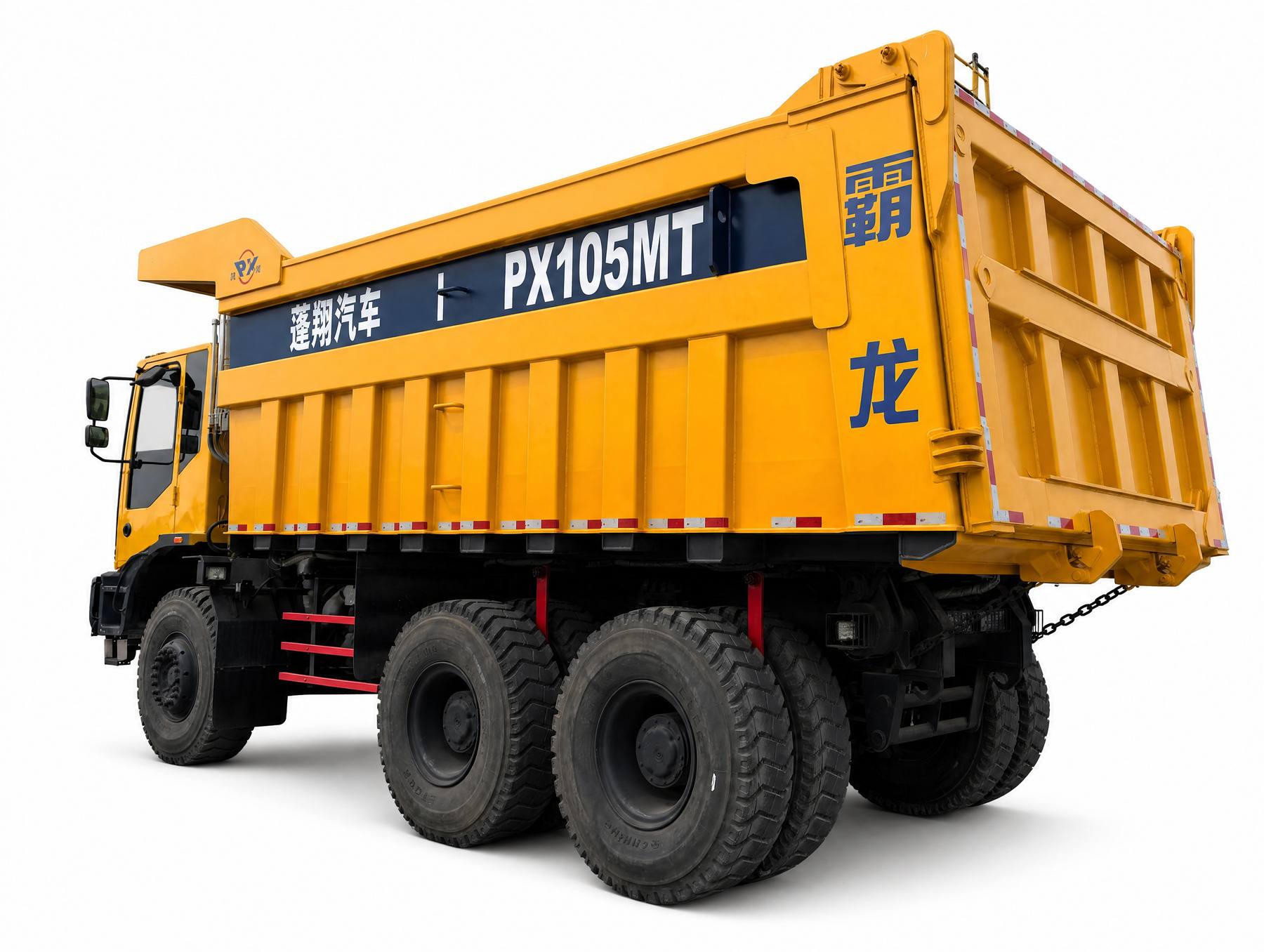

PX105 70 Ton Off-road Mining Dump Truck

The PX105 off-road mining dump truck is a three-axle wide-body mining hauler developed for high-efficiency transport of ore, rock and earth in open-pit mines, quarries and large construction sites. With a rated load of 70,000 kg and a gross vehicle weight of 105,000 kg, it combines a 40 m3 mining body with a 520 hp engine for reliable payload performance on demanding haul roads.

Powered by a YuChai YC6K520-GT30 engine (Weichai WP13G530E310 optional) with a FAST 8DS260/240 gearbox, the truck is built on a welded semi-rigid box frame with Pengxiang heavy-duty axles. EATON full hydraulic steering and the SORL brake system with exhaust braking ensure precise control and safe stopping under full load. The PX105 is widely used in open-pit mines, quarries, cement plants and large earthmoving projects.

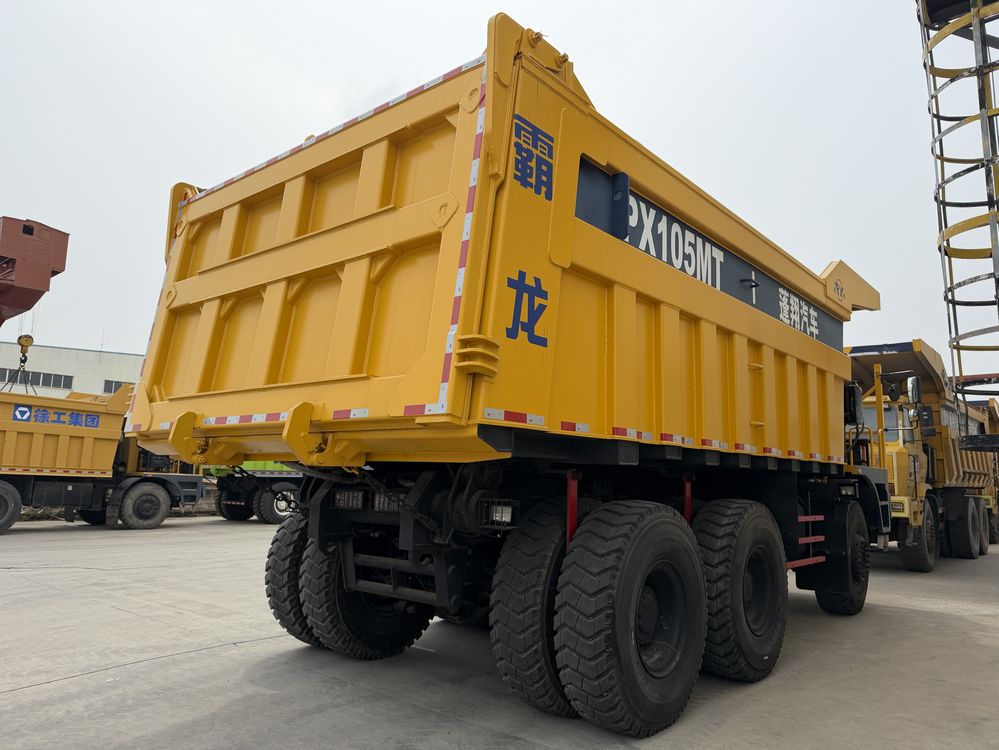

1. Heavy-Duty Mining Body — 40 m3 heaped capacity with an NM450 bottom plate (16 mm) and Q355 side plates, fitted with a Hyva 202 front-lift cylinder for fast, reliable dumping of ore and rock.

2. Strong Powertrain — The YuChai 520 hp engine (Weichai 530 hp optional) matched with a FAST 8DS260/240 gearbox delivers strong climbing ability and stable high-speed hauling on haul roads.

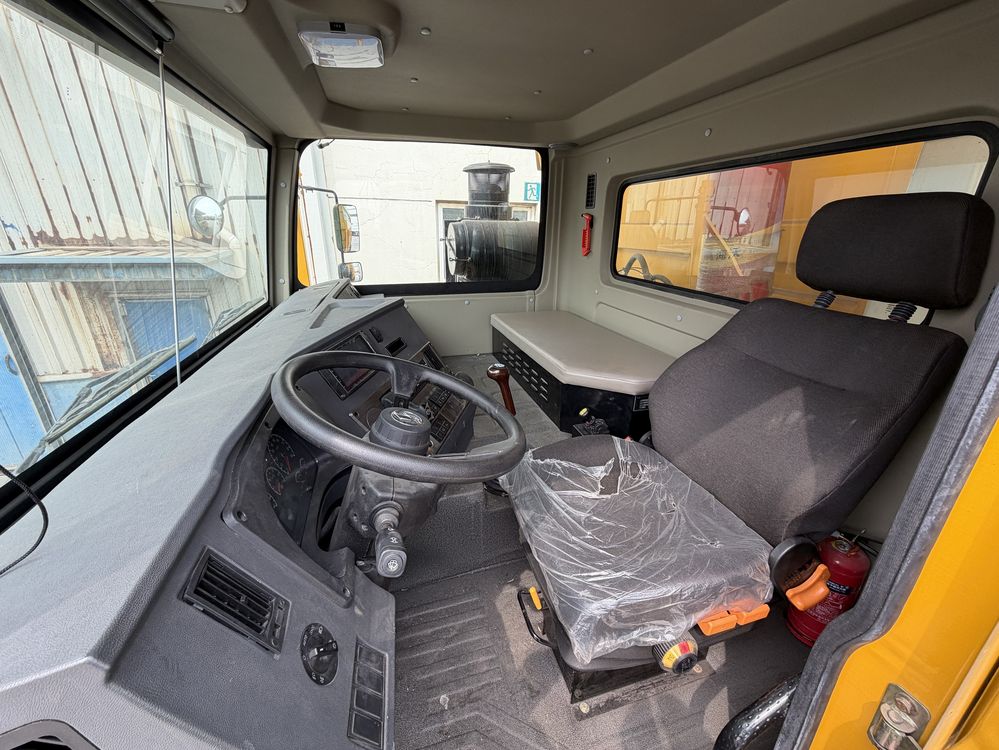

3. Spacious Wide-Body Cab — Reversible wide-body offset cab with electronic air conditioning, reinforced mirrors and a clear instrument panel keeps operators comfortable and safe during long shifts.

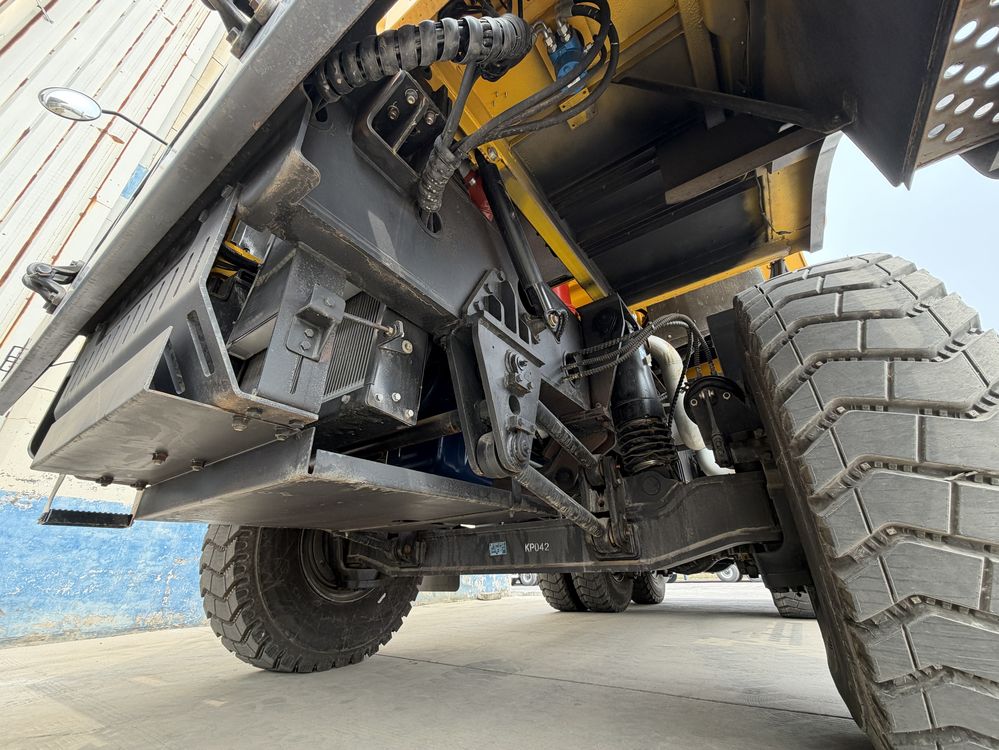

4. Heavy-Duty Chassis and Suspension — Pengxiang 25 t front axle and 40 t cast steel dual-reduction middle/rear axle with full-welded equalizing suspension keep the machine stable on uneven haul roads.
