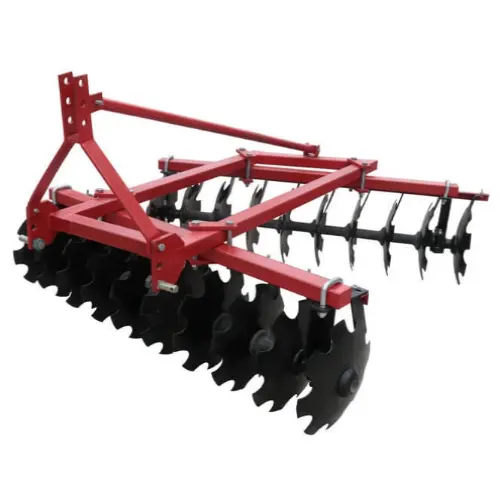

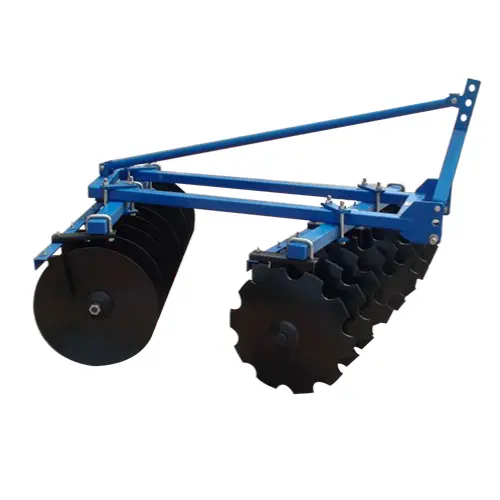

Our Disc harrow configuration crushes clods and incorporates residues uniformly. The nitrogen-charged shock absorbers protect gearboxes from impact loads during rocky soil operations.
Product Parameters
| Disc harrow | |||||||
|
Model |
Working Width(m) |
weight(kg) |
Working Depth(cm) |
No.of disc |
Linkage |
Diameter of disc(mm) |
Matched Power(hp) |
| 1BQX-1.1 | 1.1 | 200 | 10 | 12 |
Three-point mounted |
460 | 12 |
| 1BQX-1.5 | 1.5 | 240 | 10-14 | 16 | 460 | 25 | |
| 1BQX-1.9 | 1.9 | 280 | 10-14 | 20 | 460 | 30-40 | |
| 1BQX-2.1 | 2.1 | 300 | 10-14 | 22 | 460 | 40-50 | |
| 1BQX-2.7 | 2.7 | 480 | 10-14 | 28 | 460 | 60-70 | |
| 1BQX-3.4 | 3.4 | 1100 | 10-14 | 42 | 460 | 80-100 | |
| 1BJX-1.7 | 1.7 | 390 | 14 | 16 | 560 | 45 | |
| 1BJX-2.0 | 2.0 | 434 | 14 | 18 | 560 | 50 | |
| 1BJX-2.2 | 2.2 | 463 | 14 | 20 | 560 | 55-60 | |
| 1BJX-2.4 | 2.4 | 604 | 14 | 22 | 560 | 65 | |
| 1BZ-2.0 | 2 | 1150 | 200 | 18 |
Trailed |
660 | 60-80 |
| 1BZ-2.5 | 2.5 | 1350 | 200 | 24 | 660 | 80-100 | |
| 1BZ-3.0 | 3 | 1430 | 200 | 28 | 660 | 100-120 | |
| 1BZ-3.4 | 3.4 | 1550 | 320 | 34 | 660 | 120-150 | |
