1 Ton Mini Excavator

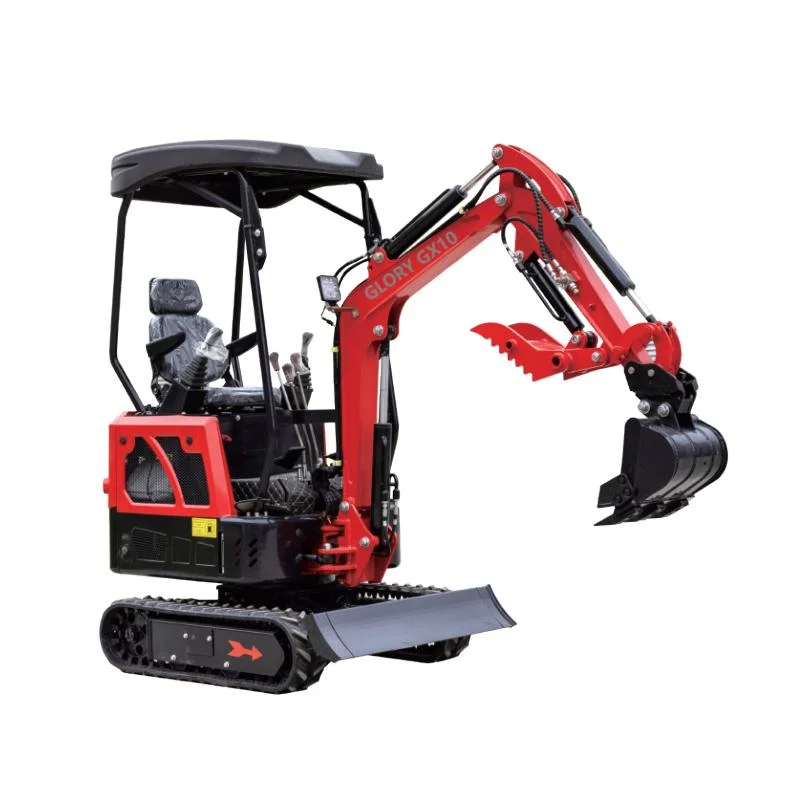

As a production enterprise in the field of mini excavator manufacturing in China, we have launched our star product - GX10 1 ton mini excavator - to the global market. With outstanding performance, reliable quality, and ultra-high cost-effectiveness, this model has become the preferred solution for users both domestically and internationally. Our factory is equipped with CNC machining centers, laser cutting systems, automatic bending equipment, and robot welding workstations; Accumulated independent research and development of over a hundred types of construction machinery models; Provide a one-stop mini excavator solution from complete machine to accessories.

As a professional manufacturer of small construction machinery, we have launched a full range of high-performance micro excavation equipment ranging from 0.8 to 4.0 tons, covering 13 precise tonnage specifications (0.8T/1.0T/1.2T/1.3T/1.5T/1.6T/1.8T/2.2T/2.5T/3.0T/3.5T/4.0T). This product line is developed specifically for diversified working conditions, continuously improving and perfecting our products through years of industry experience. We strive for excellence in the comprehensive production, design, and manufacturing of our products.

This 1 ton mini excavator is particularly suitable for the following refined scenarios: narrow space construction - landscape engineering - municipal pipeline maintenance - historical building repair - underground facility operation - orchard fine management - indoor renovation projects - agricultural water conservancy construction.


Core design for structural durability:

The main load-bearing frame is constructed with high-quality high-strength alloy steel plates (material yield strength ≥ 690 megapascals, tensile strength ≥ 790 megapascals) to form a rigid foundation for the entire machine.

The chassis system uses high-strength steel robot welding technology, combined with a dual verification mechanism of ultrasonic testing and magnetic particle sampling, to ensure structural stability.

The core load-bearing components of the working device, such as the boom and arm, are made of HB400 grade wear-resistant special steel (with a key contact surface hardness of ≥ 400HB), which significantly improves the wear resistance performance.

The main stress components in the strengthening process are effectively relieved of internal residual stress through constant temperature tempering treatment, resulting in a fatigue strength increase of over 40% for the structural components.

Precision Manufacturing Quality System:

The track module is selected with customized chain links formed using precision forging technology, and the surface is strengthened by medium frequency induction hardening (Rockwell hardness HRC50-55 range).

Welding quality control ensures uniform penetration throughout the entire process of robot automatic welding, and 100% ultrasonic testing (UT) non-destructive testing is performed.

After welding and forming the main structural components such as the boom/arm, the stress relief and tempering process must be completed.


Global Quality Assurance Service Commitment

International spare parts network: Three major spare parts centers have been established in Europe, North America, and Southeast Asia.

Multi language technical support: Provide remote diagnosis by a team of Chinese/English/Spanish engineers (with a 100% success rate in fault code analysis).

Value added service plan:

The whole machine enjoys a 12-month free quality warranty service;

Customized remote video operation training courses;

Equipped with professional level maintenance tools.



Product Advantages

1 Ton Mini Excavator

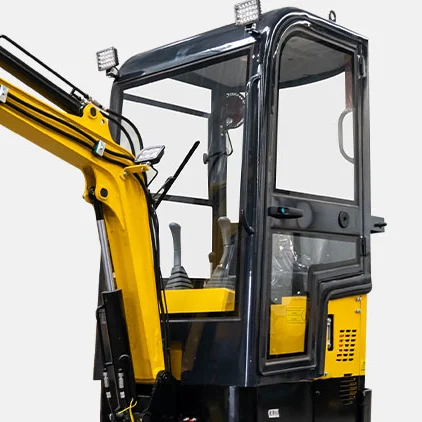

Optional Cab

Many optional functions for our mini excavator. Adjustable seat, optional shift, radio, backup camera which will make you get a comfortable and pleasant working day.

1 Ton Mini Excavator
Compact And Flexible Design

This GX10 small excavator is easy to operate. The maximum excavation depth is 1750mm. It is suitable for many small space conditions such as parks, gardens, streets, warehouses, indoors, etc.

1 Ton Mini Excavator
Security System

We use high-strength bolts of 4.9 and 8.8 grades, while others use white 4.8 grade bolts. Not only does it have high strength and stable use, but it is also waterproof to prevent power short circuits in rainy days.

1 Ton Mini Excavator

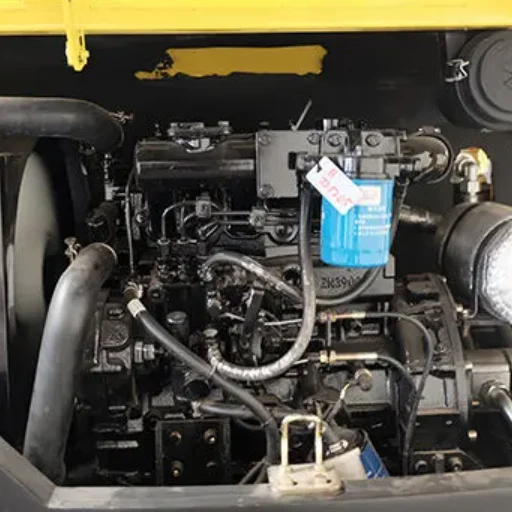

Power System

GX10 mini excavator equipped with a red flexible coupling, which serves as a shock absorber. If the engine jumps or different shafts move, then it will be compensated.

1 Ton Mini Excavator

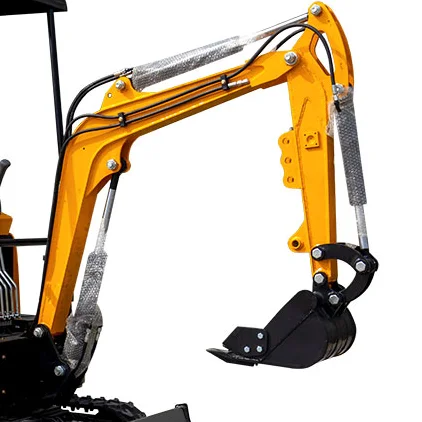

Swing Boom

Swing boom is a special and necessary function for mini excavator.
If frequently working in restricted environments such as municipal works, indoor demolition or mine tunnels, the excavator with swing function will be a better choice.

1 Ton Mini Excavator

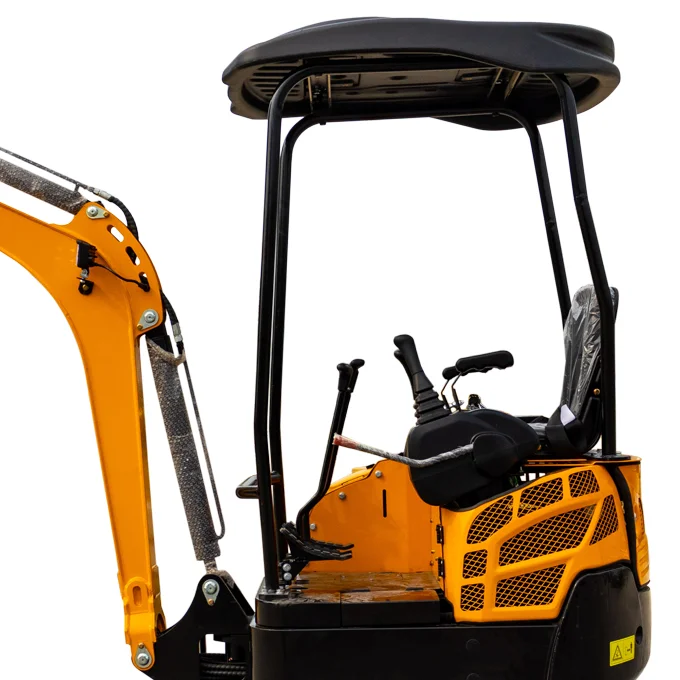

Comfortable Seat

This small excavator is equipped with seats with shock absorption system function to reduce the vibration transmitted by the body. The height, angle, and softness adjustable seats can adapt to different driver body types.


1 Ton Mini Excavator


Product Parameters

Model GX10
Weight 1000Kg
Overall dimension( L x W x H) 2775*930*2219 mm
Engine Kubota D722
Rated power 10.2KW
Digging bucket capacity 0.025m³
Wheelbase 910mm
Track length 1230mm
Track width 180mm
Min.Ground dearance 132mm
Max. Digging depth 1750mm
Max. Vertical digging depth 1375mm
Max. Digging height 2610mm
Max. Dumping height 1850mm
Max. Digging radius on ground 2850mm
Min. Rotation radius 1330mm


FAQS

Q: Are you a factory or a trading company?

A: We are a professional manufacturer of mini excavator. It has more than 20 years of experience.


Q: Can you supply any excavator attachments?

A: Sure. There will be kinds of excavator attachments which could be used in many areas.
