New Product - Electric Autonomous Driving Tractor
Industry background

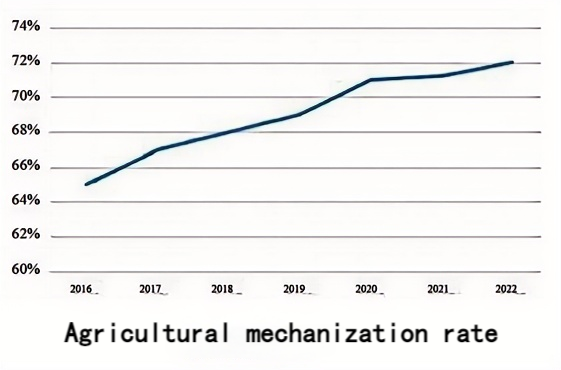

During the 13th Five Year Plan period, agricultural machinery will develop comprehensively, and the mechanization rate of crop cultivation and harvesting in China will reach 71.25%. Intelligence and green will become the development themes of the 14th Five Year Plan; The level of tractor and agricultural machinery equipment industry is not high, and high-end supporting equipment relies on imports. Domestic products are mostly mid to low end products, with overcapacity and serious homogenization. The reliability and adaptability urgently need to be improved. After 10 years of development, the monthly penetration rate of new energy vehicles and tractors has exceeded 30%, providing a good industrial supporting foundation.
Policy guidance
On May 18, 2022, the Ministry of Industry and Information Technology released the "Roadmap for Intelligent Agricultural Machinery Technology"
China has released its first intelligent tractor and agricultural machinery technology roadmap, based on unmanned agricultural machinery as the final product form, proposing nine cutting-edge and key technologies including agile whole machine architecture, universal digital chassis, new power system, integrated work tools, and new energy system;
On January 24, 2022, the State Council issued the Comprehensive Work Plan for Energy Conservation and Emission Reduction during the 14th Five Year Plan period
Agricultural and Rural Energy Conservation and Emission Reduction Project - Promote the application of agricultural electric vehicles, electric tractors, energy-saving and environmentally friendly agricultural machinery, and fishing boats, develop energy-saving agricultural greenhouses, promote energy-saving renovations of farmhouses, and build green farmhouses;
December 27, 2021, Ministry of Agriculture and Rural Affairs, "14th Five Year Plan for National Agricultural Mechanization Development":
Accelerate the intelligent and green development of agricultural machinery and tractors, promote the integrated application of technologies such as Beidou automatic navigation, high-pressure common rail, power shifting, continuously variable transmission, new energy power, and electromechanical hydraulic integration in agricultural machinery and equipment, develop compound and efficient agricultural machinery and agricultural machinery electric equipment according to local conditions, and reduce exhaust emissions.

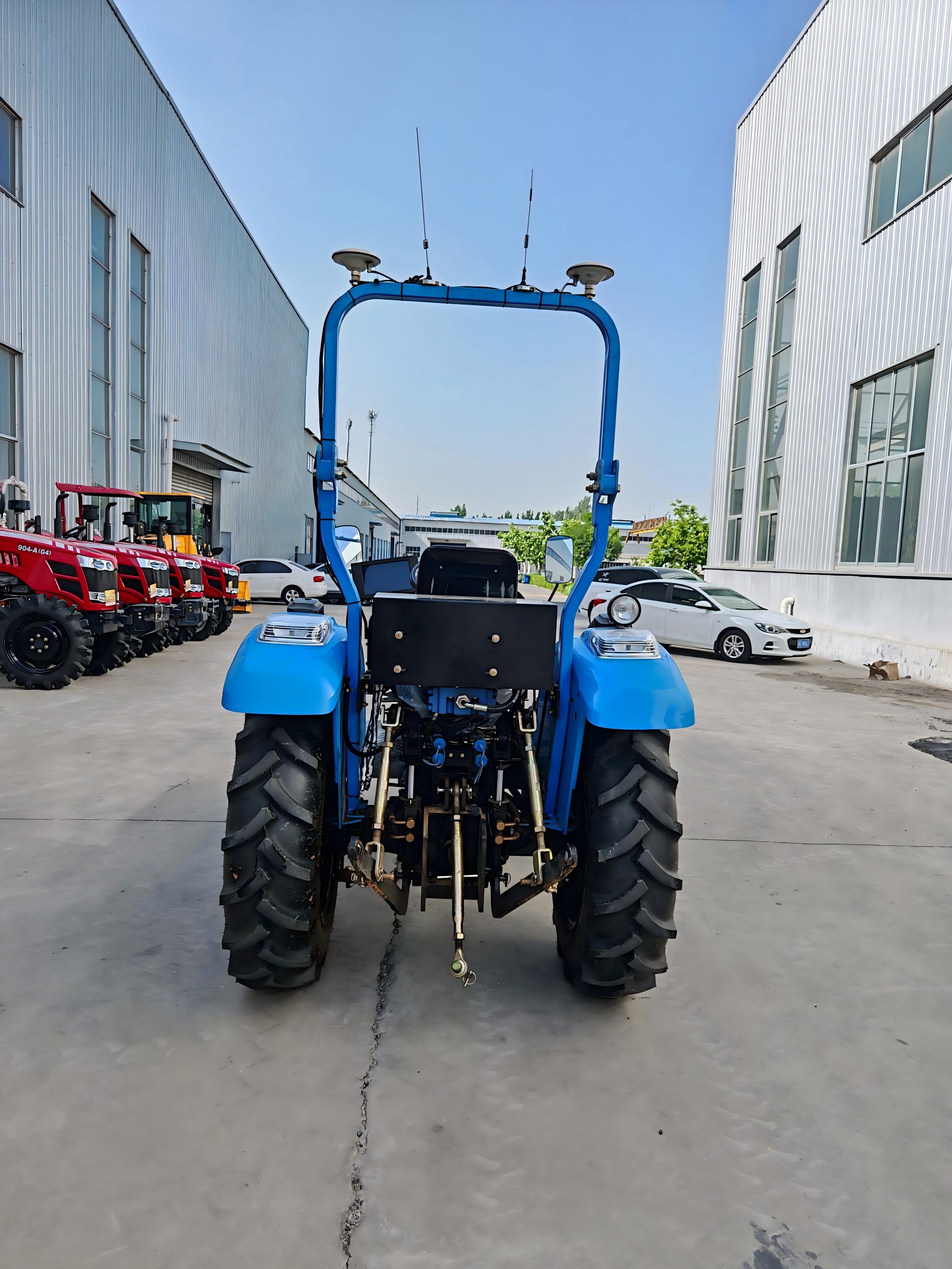

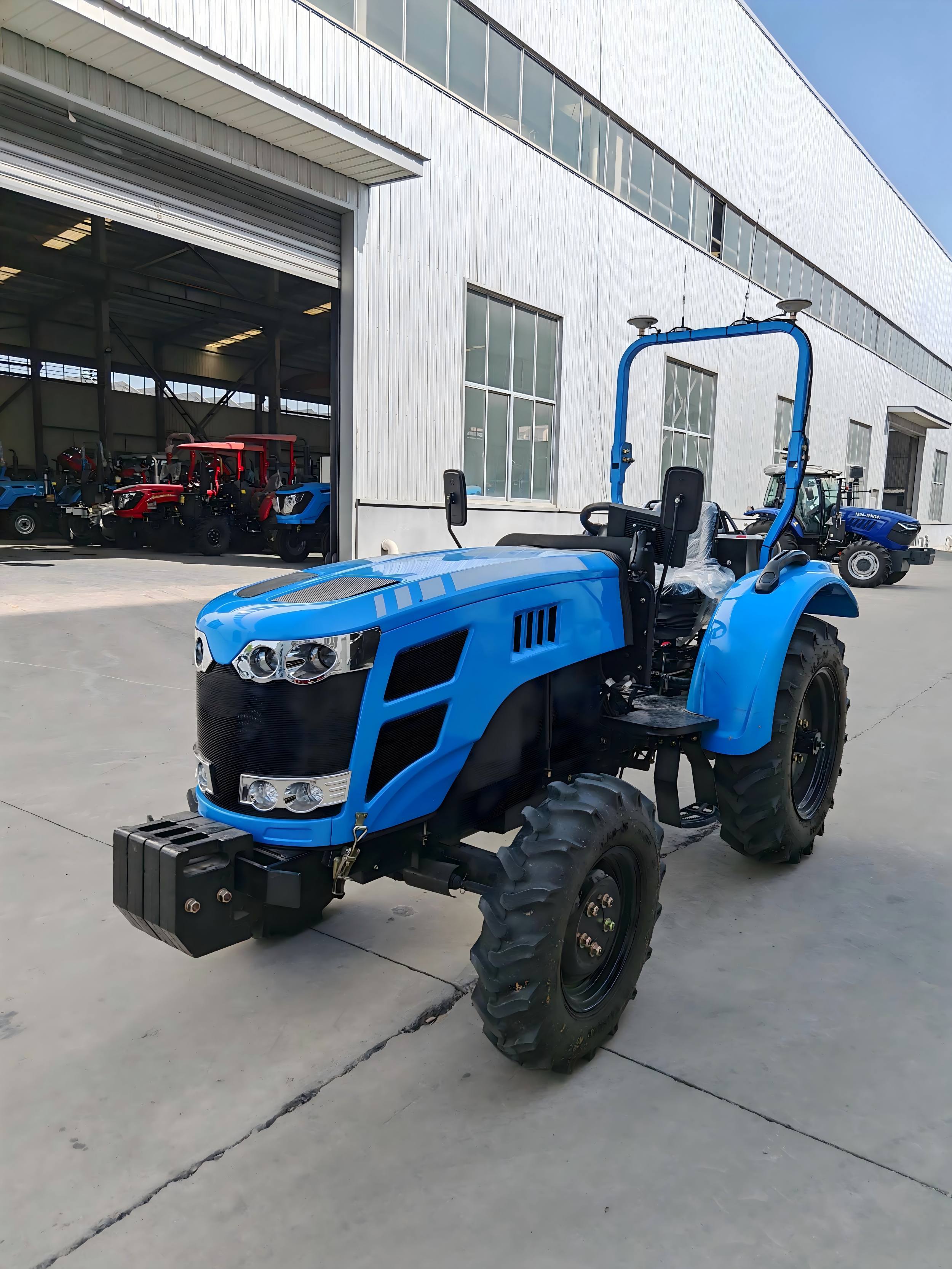

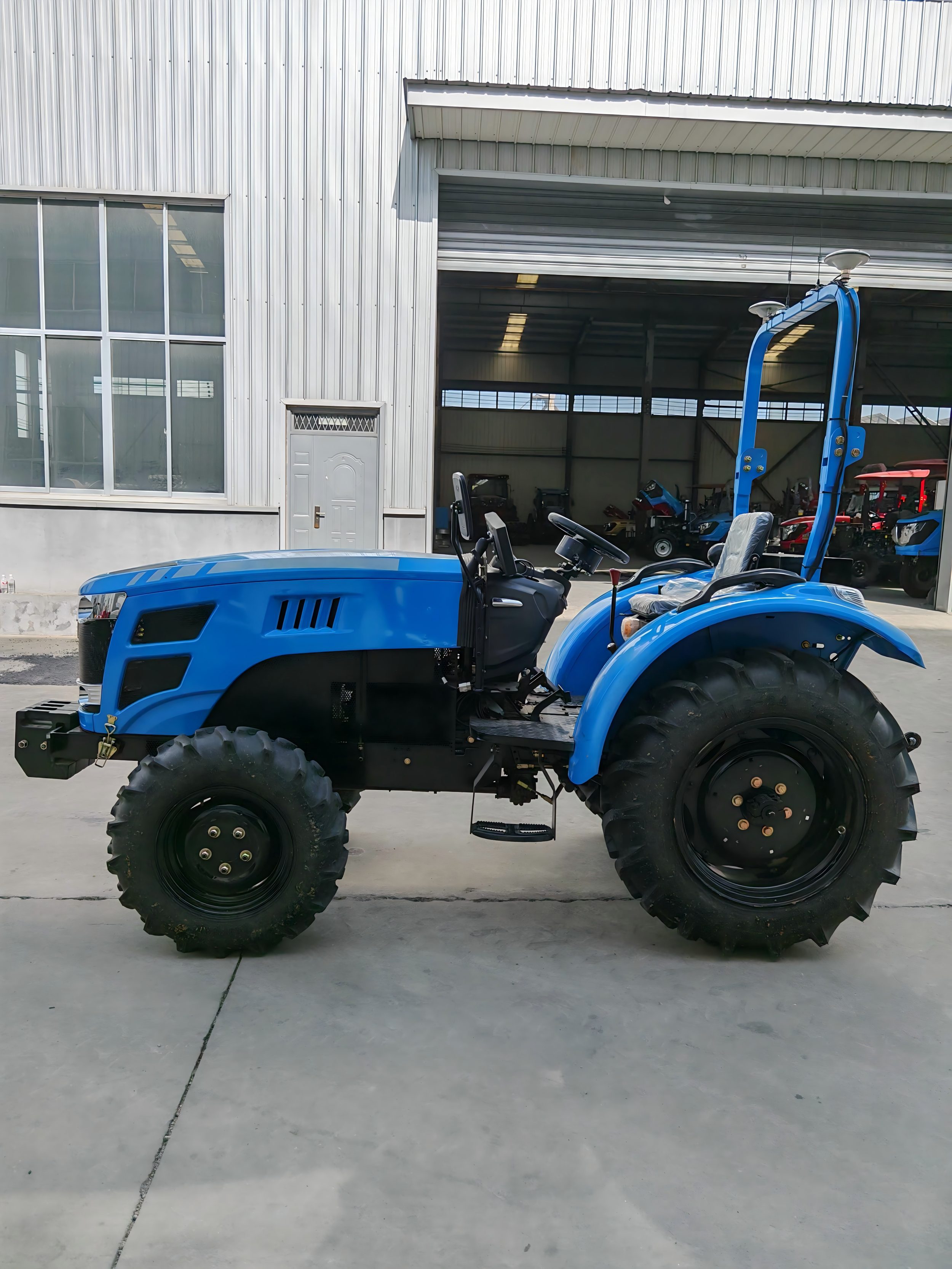

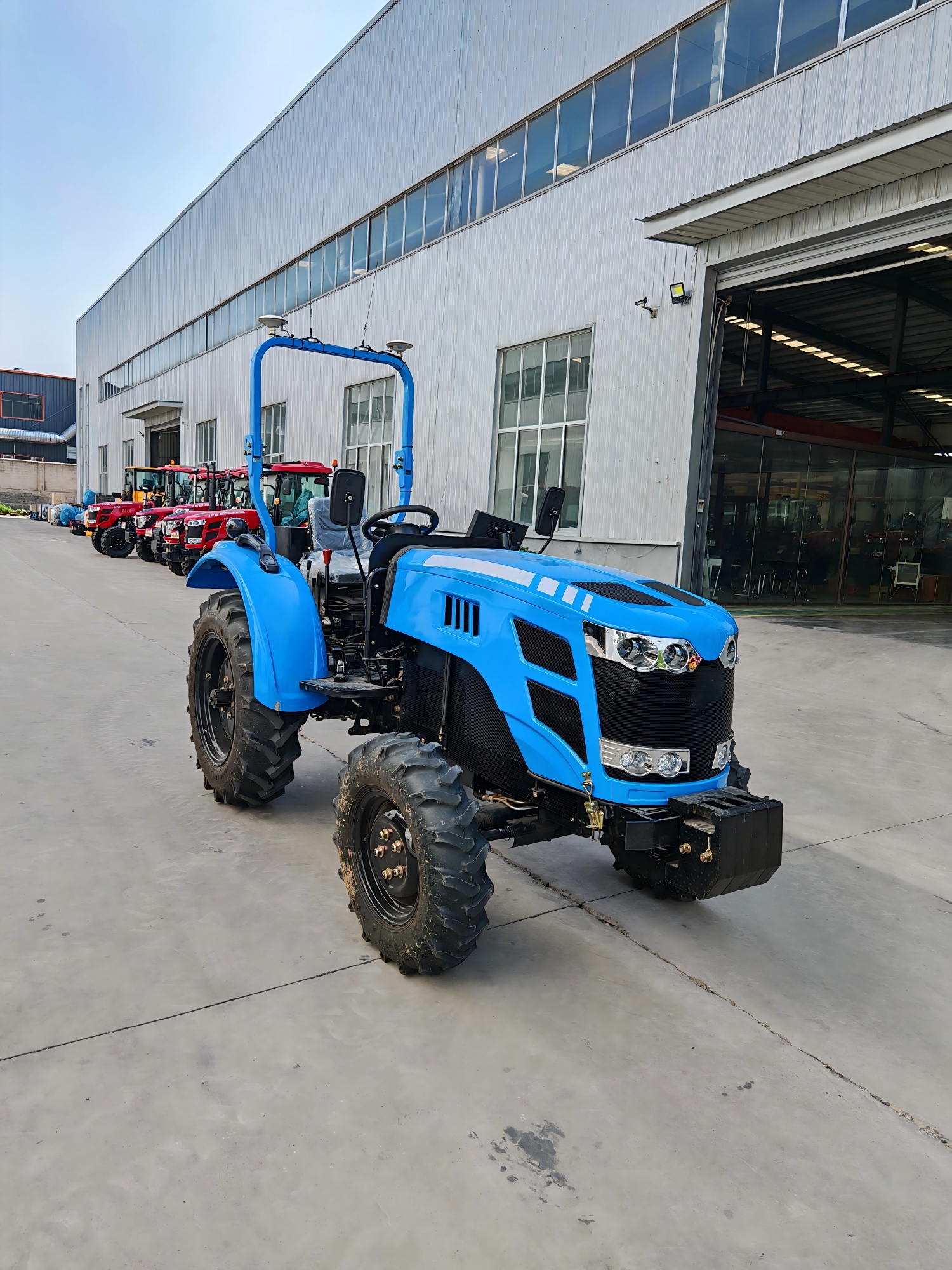

New energy product - pure electric tractor
In 2021, the company initiated the research and development of a new energy electric tractor for facility horticulture. This product is aimed at the modern vegetable greenhouse and orchard markets, and can significantly improve the working environment and operator comfort, significantly reduce usage costs, and improve crop quality. It is also the first pure electric agricultural machinery product in China to enter the practical stage.
In May 2024, the company re initiated the small-scale development of electric tractors.

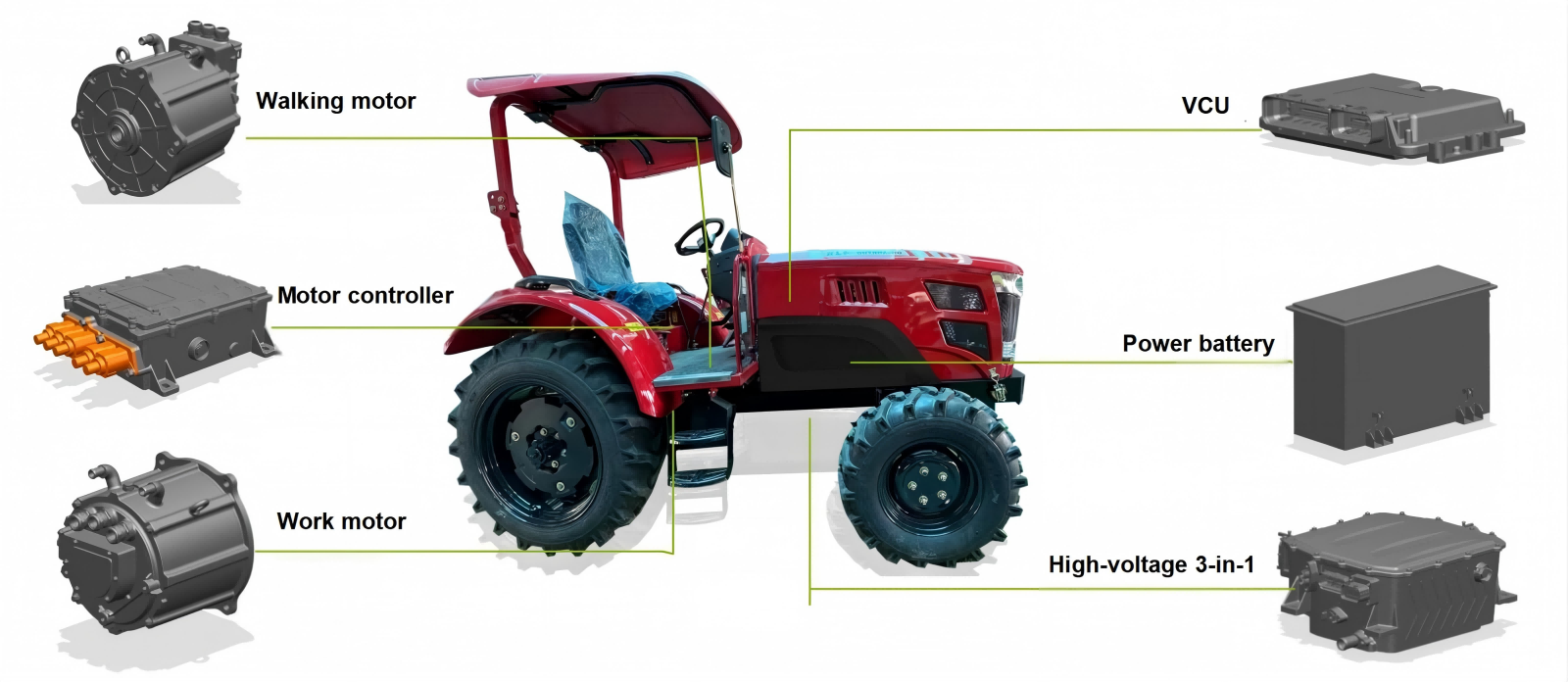

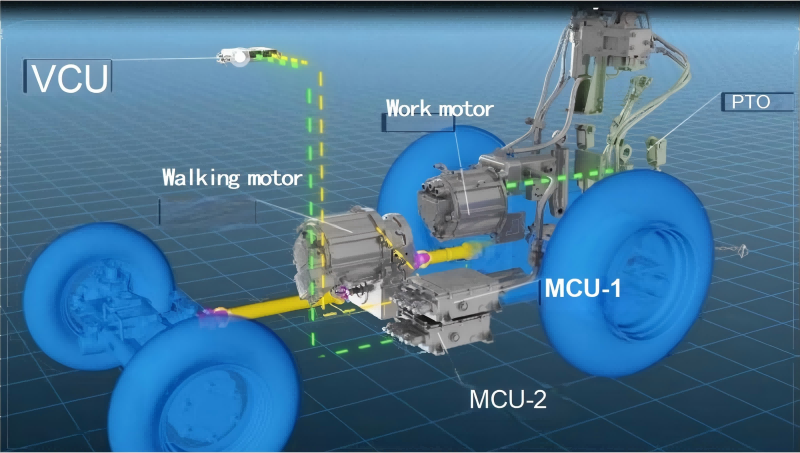

Power architecture of electric tractor prototype
Three electrical parameters of electric tractor prototype:
Battery:
Voltage: 336V (260~410V)
Electricity consumption: 41kWh
Continuous/Peak Discharge Rate: 0.5/1.5C Continuous/Peak Charging Rate: 1/1C Natural Cooling
Lifespan: ≥ 2000 cycles (EOL80%, 25 ℃)
| Parameter | Walking motor | Work motor | |
| Power | Rated（kw） | 30 | 30 |
| Peak(kw) | 40 | 40 | |
| Torque | Rated（N.m） | 80 | 80 |
| Peak(N.m) | 200 | 200 | |
| Rotate speed | Rated（rpm） | 3600 | 3600 |
| Peak(rpm) | 10000 | 5000 | |
Small batch development of power battery development requirements: We plan to develop three series of 50 and 70 horsepower tractors for field orchard transportation, field orchard planting, and greenhouse planting. We require two specifications of battery packs to meet domestic and export requirements.GE504/704ModelGE504GE704System power (kWh)58 80 Rated voltage (V)336 336 Full power operating voltage range (V)≤450≤450Available working voltage range (V)260~450260~450Weight requirement for battery system (kg)≤450≤620Continuous/Pulse discharge0.5C/1.5C0.5C/1.5CContinuous/Pulse charging1C/1C1C/1CCharging time(@ RT)80%SOC/60min80%SOC/60minCharging methodDC fast charging+AC slow chargingDC fast charging+AC slow chargingCharging standardNational/European standardsNational/European standardsCooling methodnatural coolingnatural coolingCycle life≥2000 times≥2000 timesNumber of high-voltage distribution ports2~32~3Peak discharge power or current（ kW@s Or A @ s)60kW@3s100kW@3sContinuous discharge power or current (kW or A)30kW50kWFeedback power or current (kW/s or A/s)30kW@10s(Referring to scenarios such as brake feedback)50kW@10s(Referring to scenarios such as brake feedback)
| GE504/704 | ||
| Model | GE504 | GE704 |
| System power (kWh) | 58 | 80 |
| Rated voltage (V) | 336 | 336 |
| Full power operating voltage range (V) | ≤450 | ≤450 |
| Available working voltage range (V) | 260~450 | 260~450 |
| Weight requirement for battery system (kg) | ≤450 | ≤620 |
| Continuous/Pulse discharge | 0.5C/1.5C | 0.5C/1.5C |
| Continuous/Pulse charging | 1C/1C | 1C/1C |
| Charging time(@ RT) | 80%SOC/60min | 80%SOC/60min |
| Charging method | DC fast charging+AC slow charging | DC fast charging+AC slow charging |
| Charging standard | National/European standards | National/European standards |
| Cooling method | natural cooling | natural cooling |
| Cycle life | ≥2000 times | ≥2000 times |
| Number of high-voltage distribution ports | 2~3 | 2~3 |
| Peak discharge power or current（ kW@s Or A @ s) | 60kW@3s | 100kW@3s |
| Continuous discharge power or current (kW or A) | 30kW | 50kW |
| Feedback power or current (kW/s or A/s) | 30kW@10s(Referring to scenarios such as brake feedback) | 50kW@10s(Referring to scenarios such as brake feedback) |

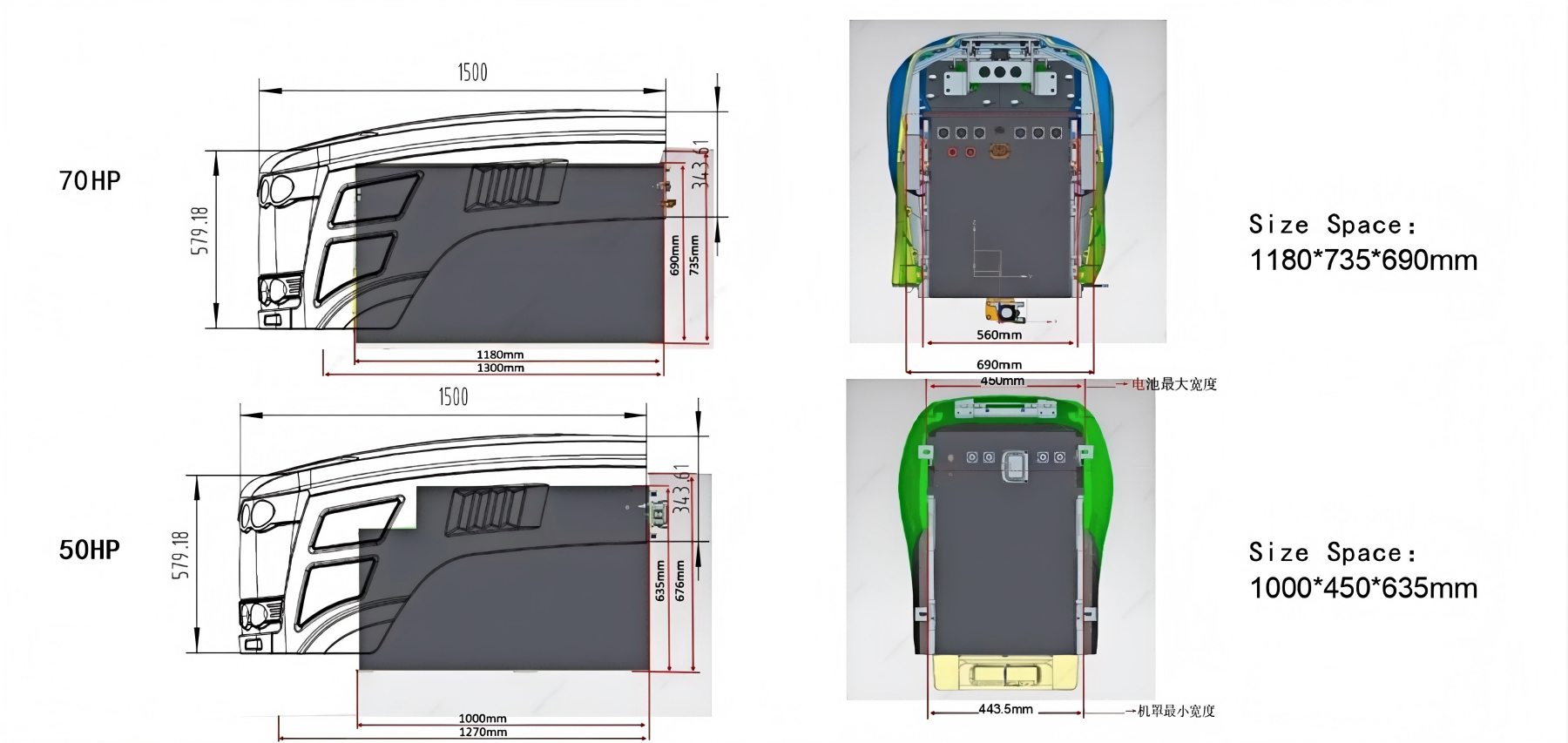

Power battery size requirements:
GLORY welcomes all interested friends with electric tractor needs to consult, discuss, and cooperate. We will continue to develop and improve our agricultural tractors in the field of agricultural machinery with an attitude of never forgetting our original intention. To serve everyone with better quality, superior technology, more competitive products, and better service. GLORY looks forward to working with you.
