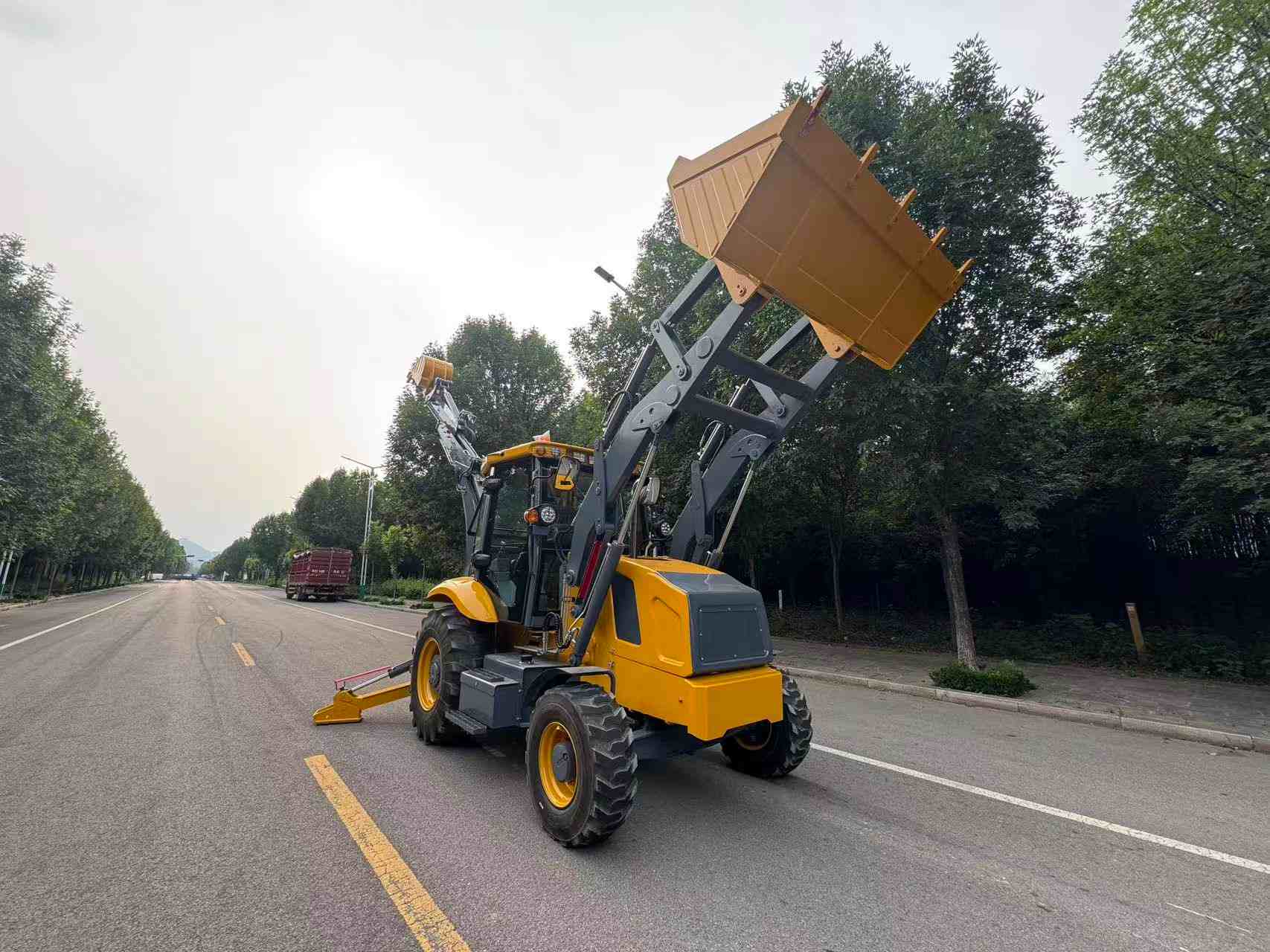

GB420F Backhoe Loader

Dual-function front loader & rear backhoe, two machines integrated in one compact body

Optional Cummins 74KW / 93KW turbocharged engine, high torque & low fuel consumption

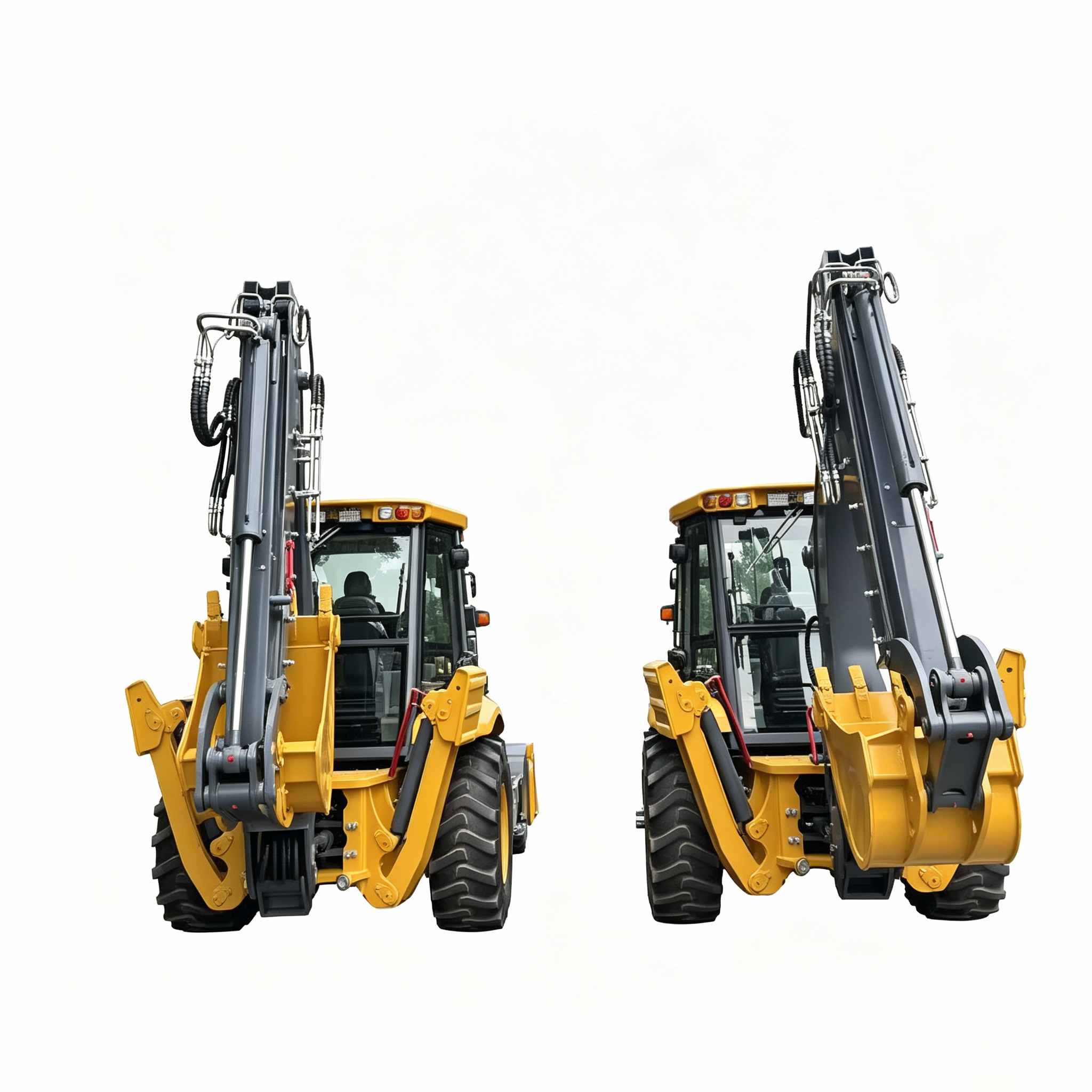

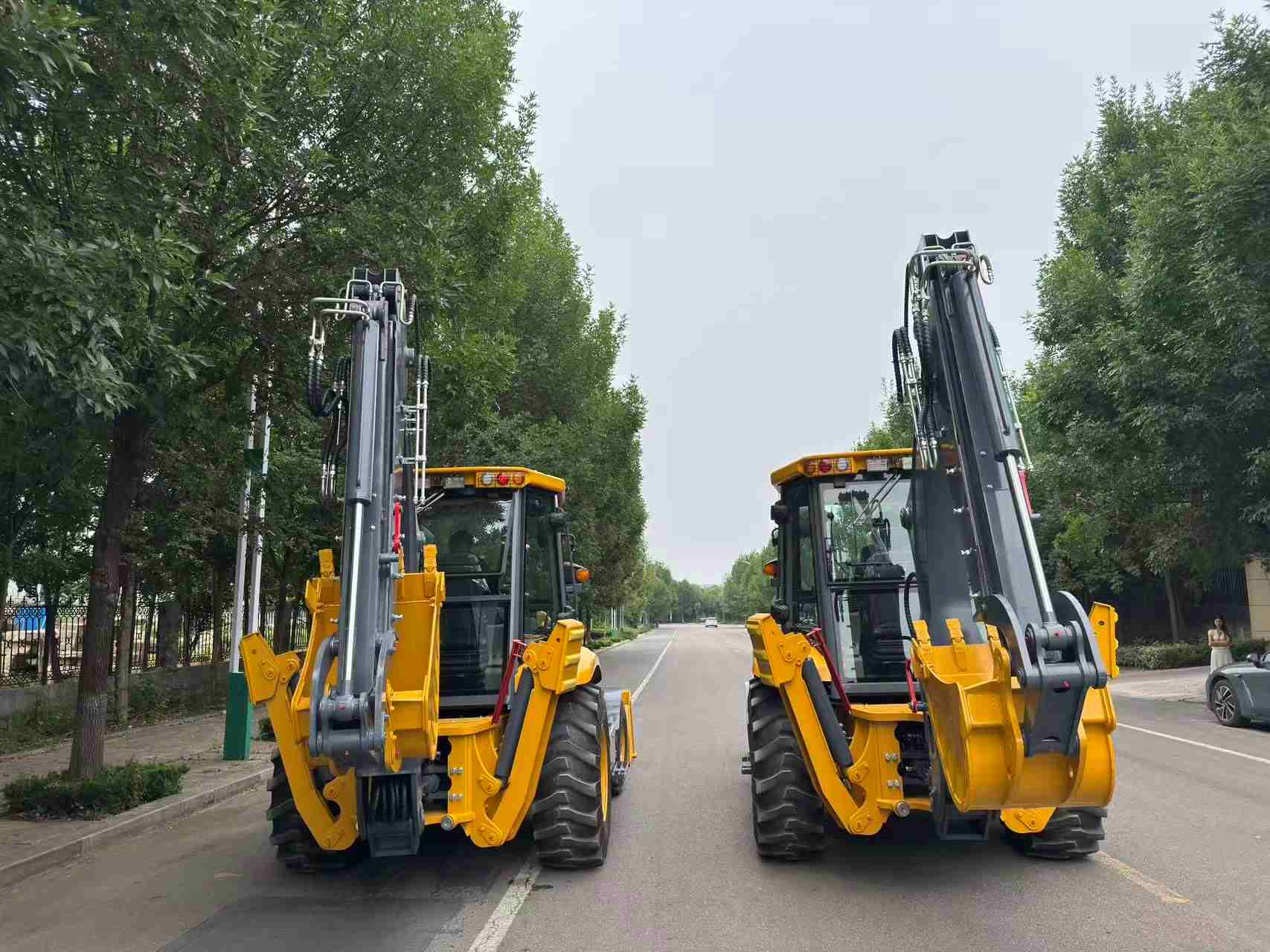

Side-shift digging boom with optional telescopic arm, max digging depth up to 4085mm

1.0m³ loader bucket & 0.3m³ backhoe bucket, breakout force up to 49.8kN

Heavy-duty Yunyu drive axle with high load capacity, 4WD all-terrain off-road tires

4 forward & 4 reverse synchronous shift gearbox, stable power transmission

Standard quick coupler, compatible with full series attachments: hammer, auger, log grapple, snow blade, pallet fork

Optional 2WD/4WD switchable drive system, A-type / H-type support legs available

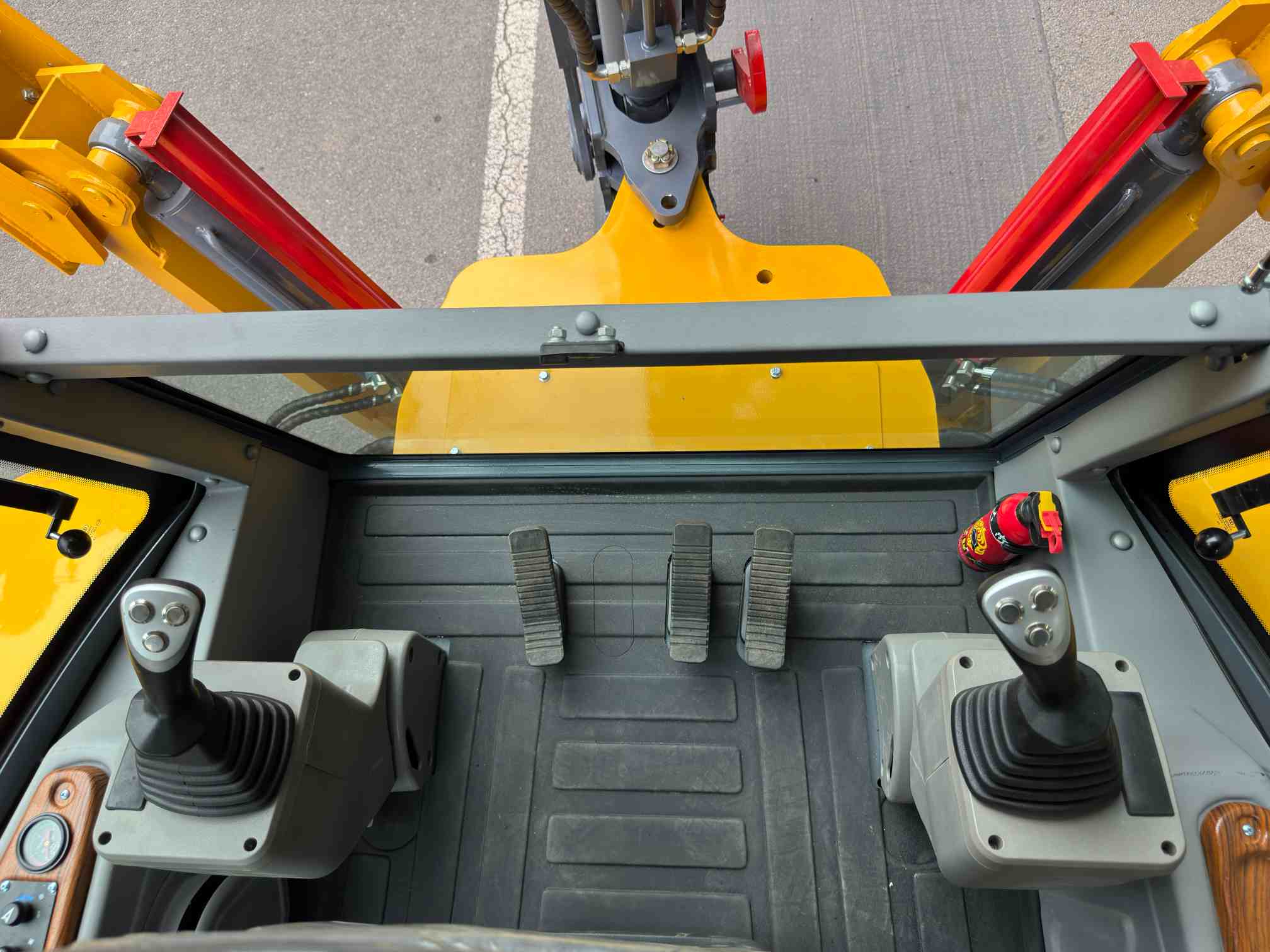

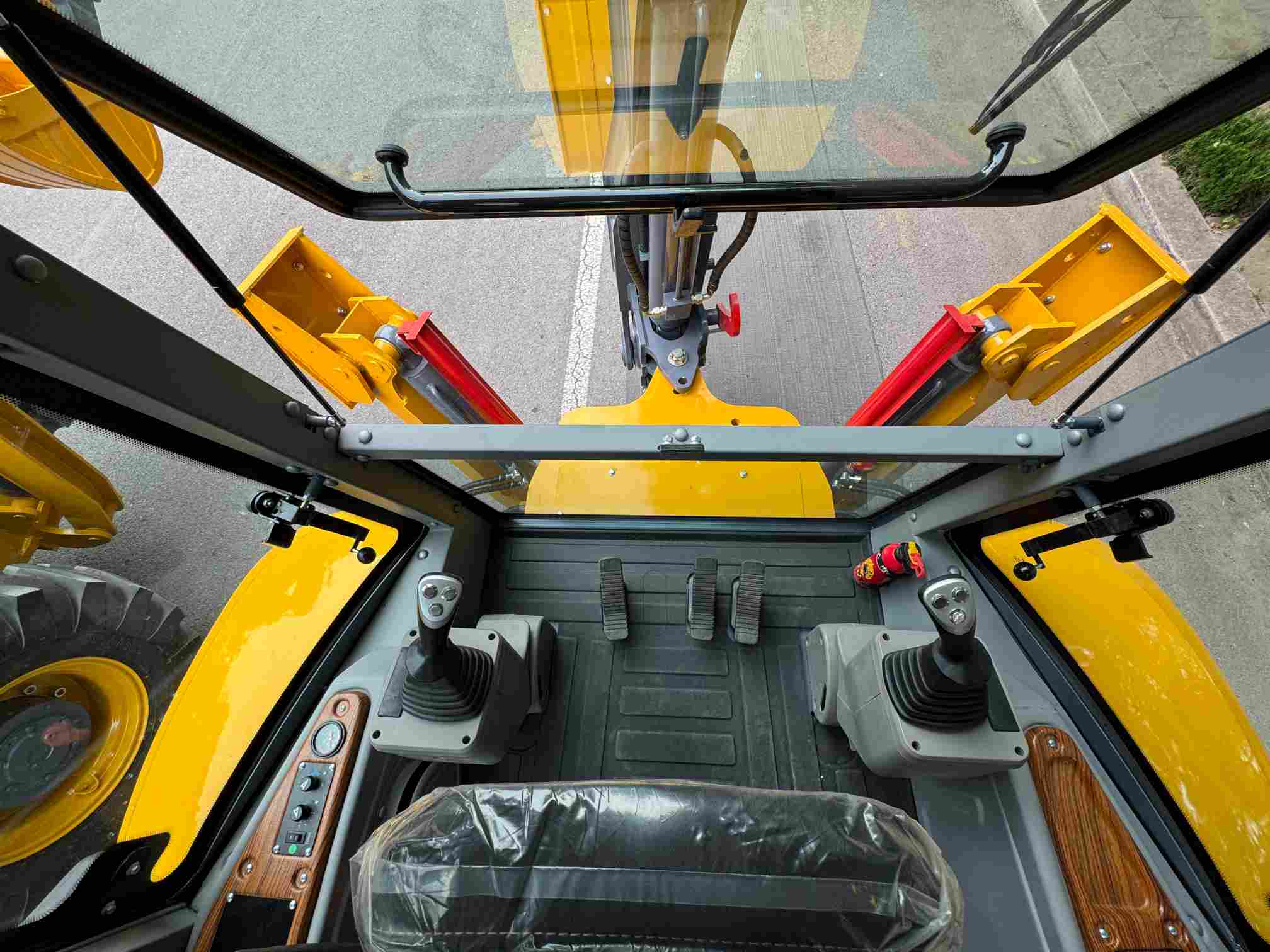

Luxury spacious cab with wide vision, ergonomic control system for all-day operation

External maintenance layout, easy inspection & less downtime loss

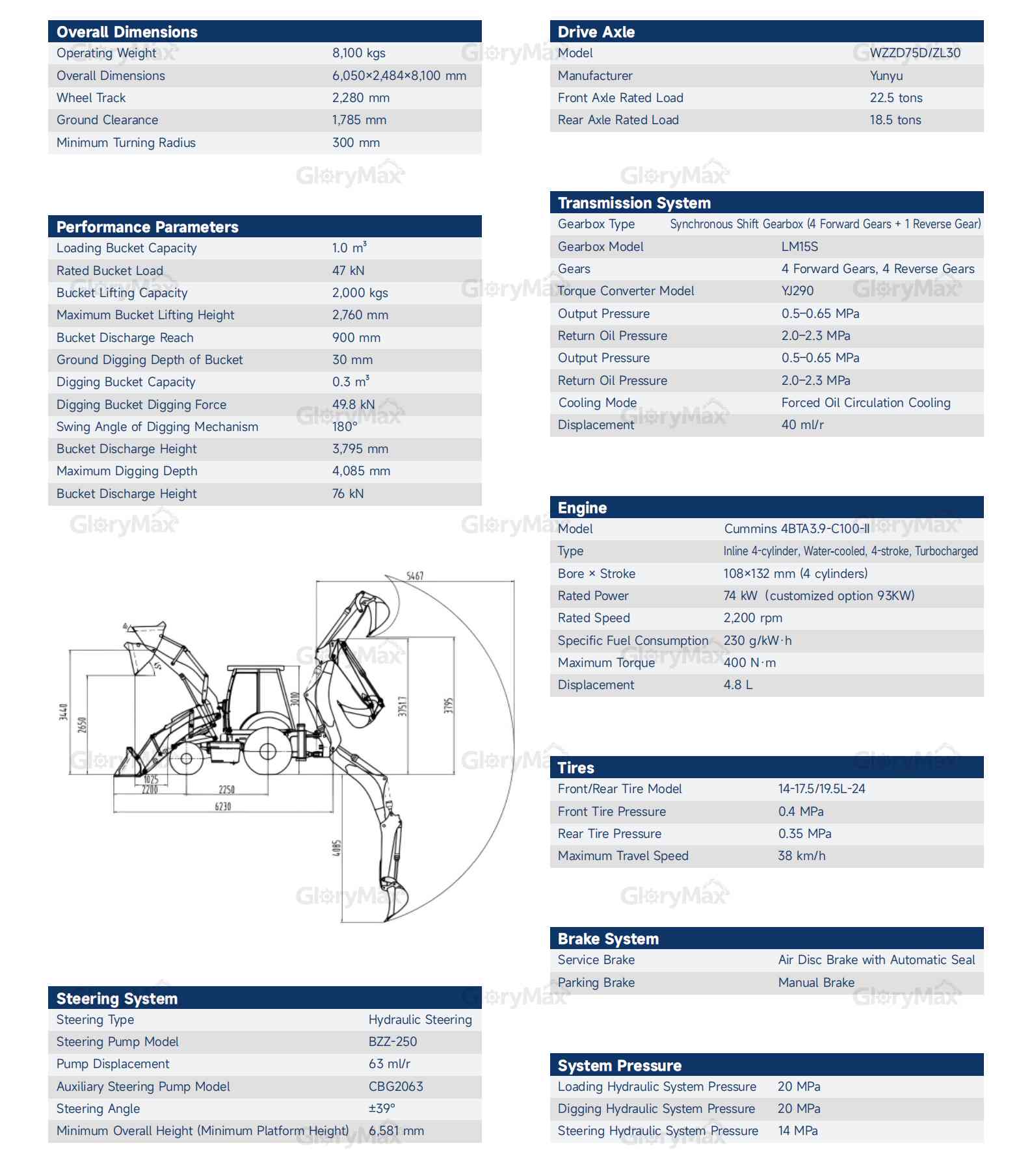

Everglory Machinery GB420F backhoe loader is a versatile compact two-in-one construction machine with side-shift digging design and high-strength welded frame. It supports two power options of Cummins 74KW and 93KW turbocharged engine, delivering strong torque output with excellent fuel efficiency. Equipped with 1.0m³ front loading bucket and 0.3m³ rear digging bucket, the machine reaches 49.8kN digging force and 4085mm maximum digging depth, greatly improving trenching, loading and material handling efficiency. The rear backhoe arm supports optional telescopic boom and 180° swing angle, flexible for narrow municipal and farm sites. Matched with heavy-duty Yunyu front & rear drive axles and 14-17.5/19.5L-24 wide off-road tires, switchable 2WD/4WD mode ensures outstanding trafficability on muddy, gravel and rough ground. Adopting 4-forward-4-reverse synchronous shift gearbox and independent 20MPa high-pressure hydraulic system, all working movements respond smoothly and precisely. Standard quick coupler allows fast replacement of multiple attachments including hydraulic hammer, auger drill, snow plow and rotating log grapple to realize multi-scene operation and save customers extra equipment cost. The luxury panoramic cab provides comfortable operating environment, while centralized external service ports simplify daily maintenance effectively.

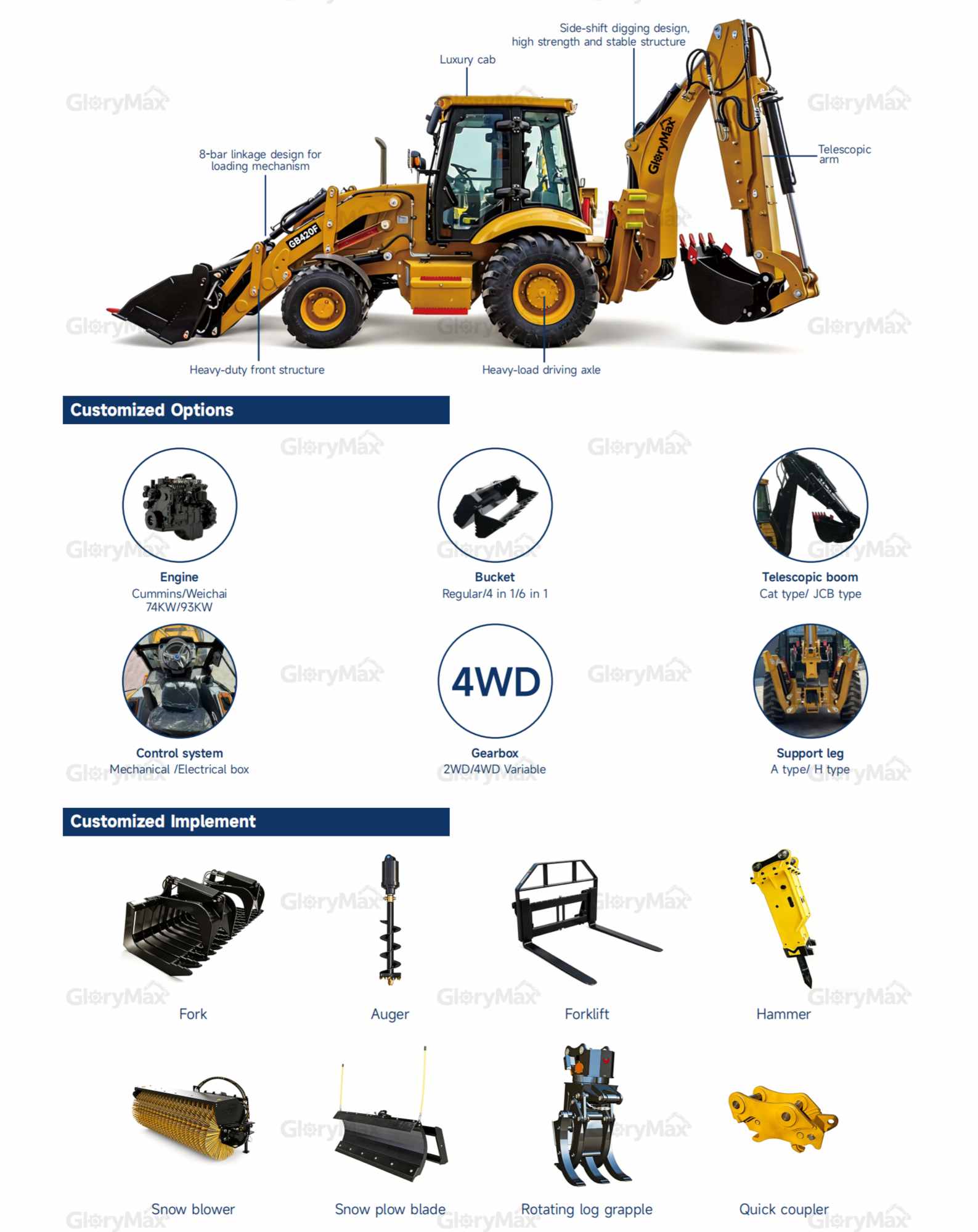

Multi-function Dual Working Design & Rich Custom Attachments

Combined front loading and rear digging structure with side-shift backhoe arm, optional telescopic boom for deeper excavation. Standard quick coupler supports various attachments like breaker, auger, grapple and snow blower, optional 4-in-1/6-in-1 bucket, A/H type support legs and 2WD/4WD drive system to meet diverse construction and farm demands.

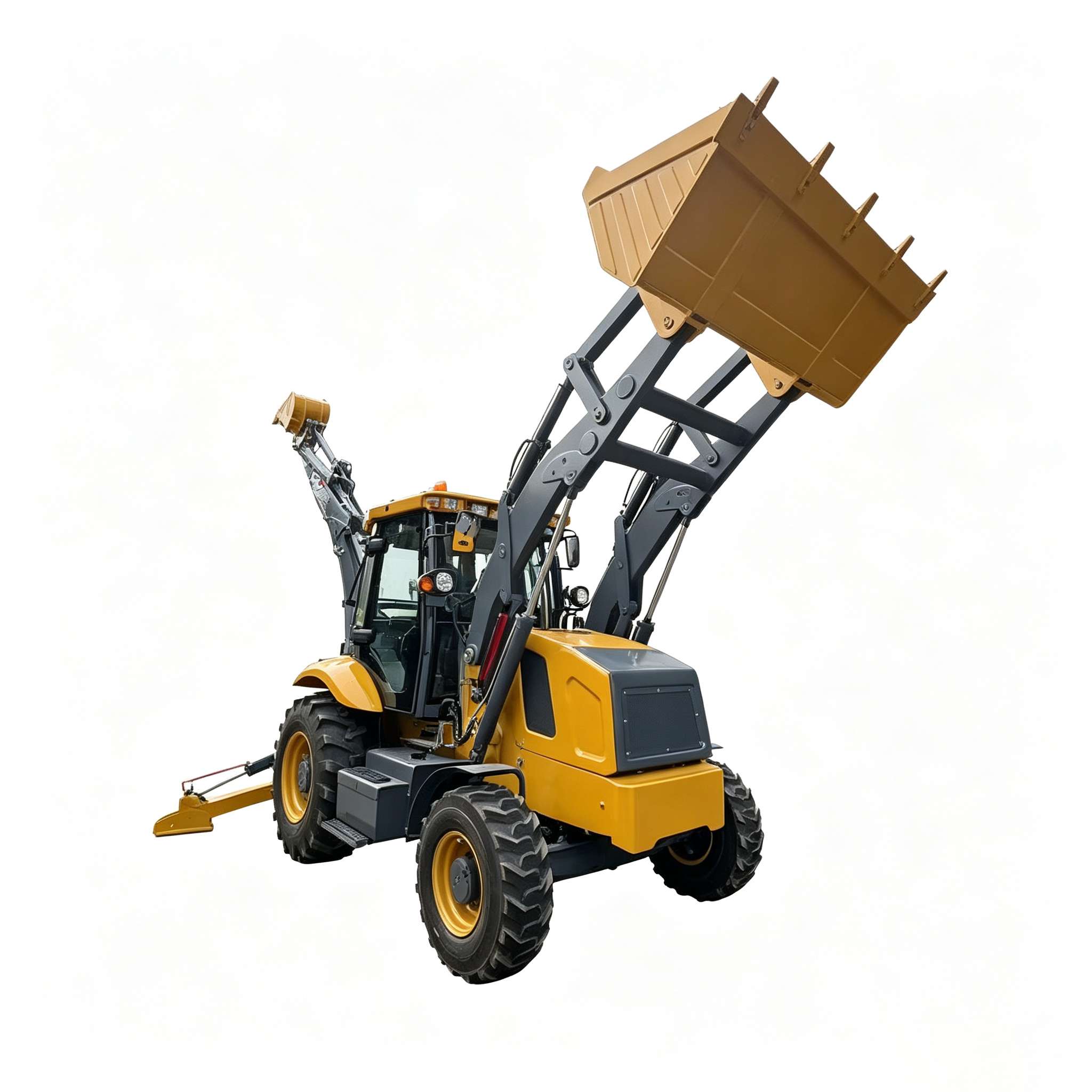

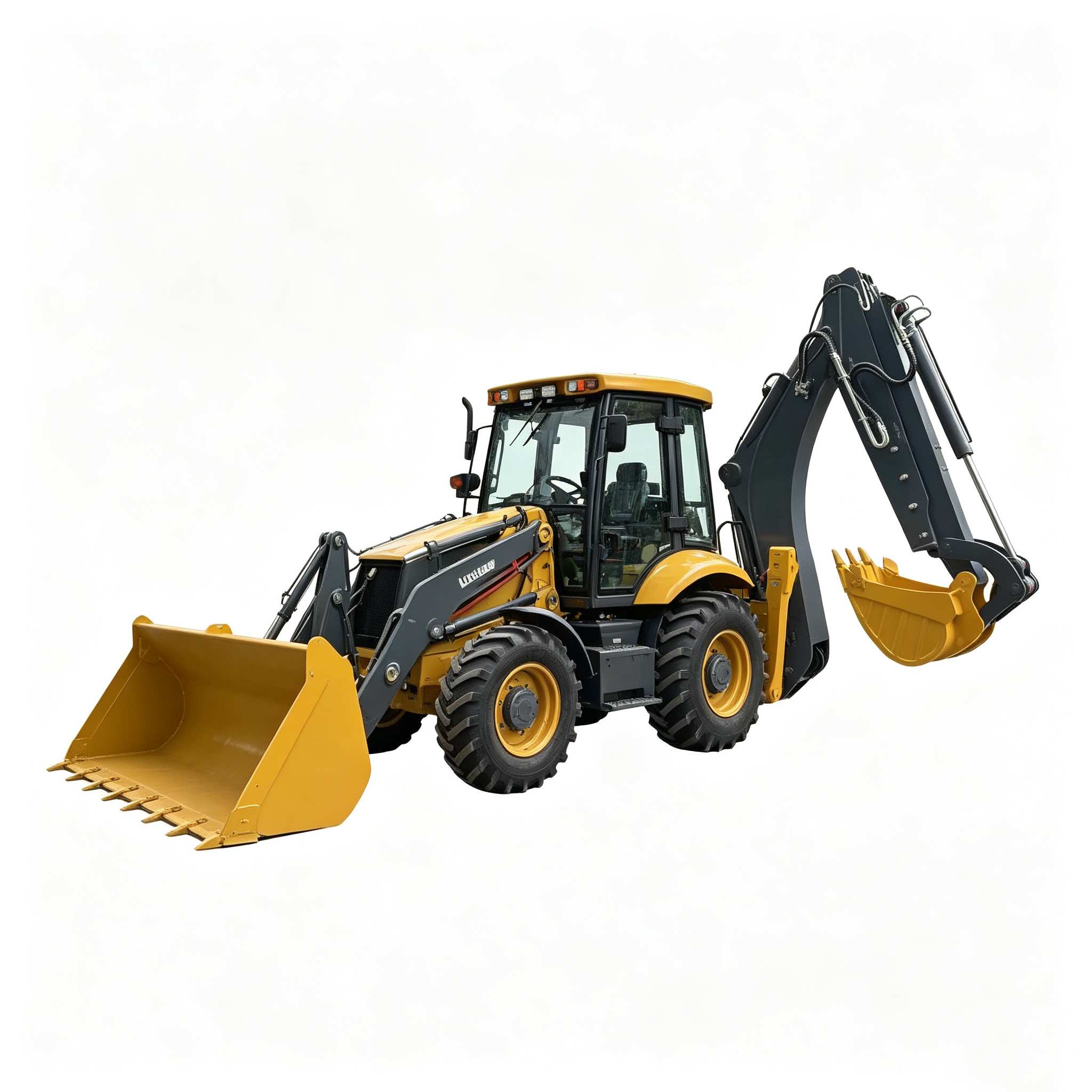

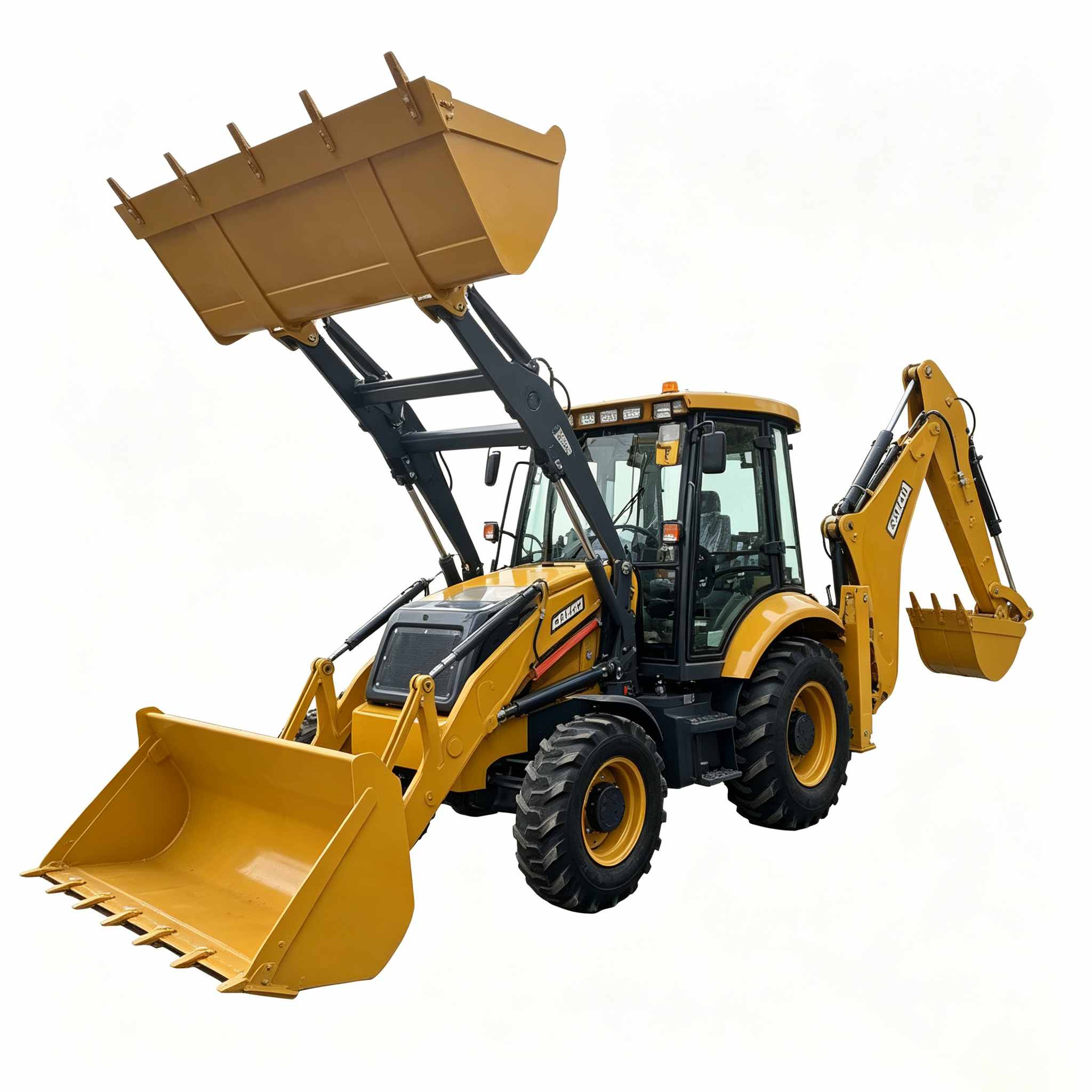

GB420F Compact Multifunctional Backhoe Loader

Optional Cummins Power & Heavy-Duty Reliable Chassis

Dual power options of 74KW and 93KW Cummins turbo engine supply stable power for heavy workloads. Heavy-load Yunyu drive axle, wide off-road tires and 4-speed synchronous shift gearbox guarantee strong bearing capacity and smooth transmission. Luxury wide-view cab and easy-access maintenance points reduce operation fatigue and service time.

Model	DX215L-2 2.5 Ton Wheel Loader
Engine power	63 kW
Rated loading capacity	2.5 T
Bucket capacity	1.0-1.3 m³
Maximum dumping height (blade plate)	3050/3250 mm
Maximum breakout force	54 KN
Minimum turning radius	5400 mm
Wheel base	2530 mm
Wheel tread	600 mm
Ground clearance	320 mm
Forward speed	27 km/h
