DX820 Backhoe Loader

Everglory Machinery DX820 Backhoe Loader Product Details

Product Introduction

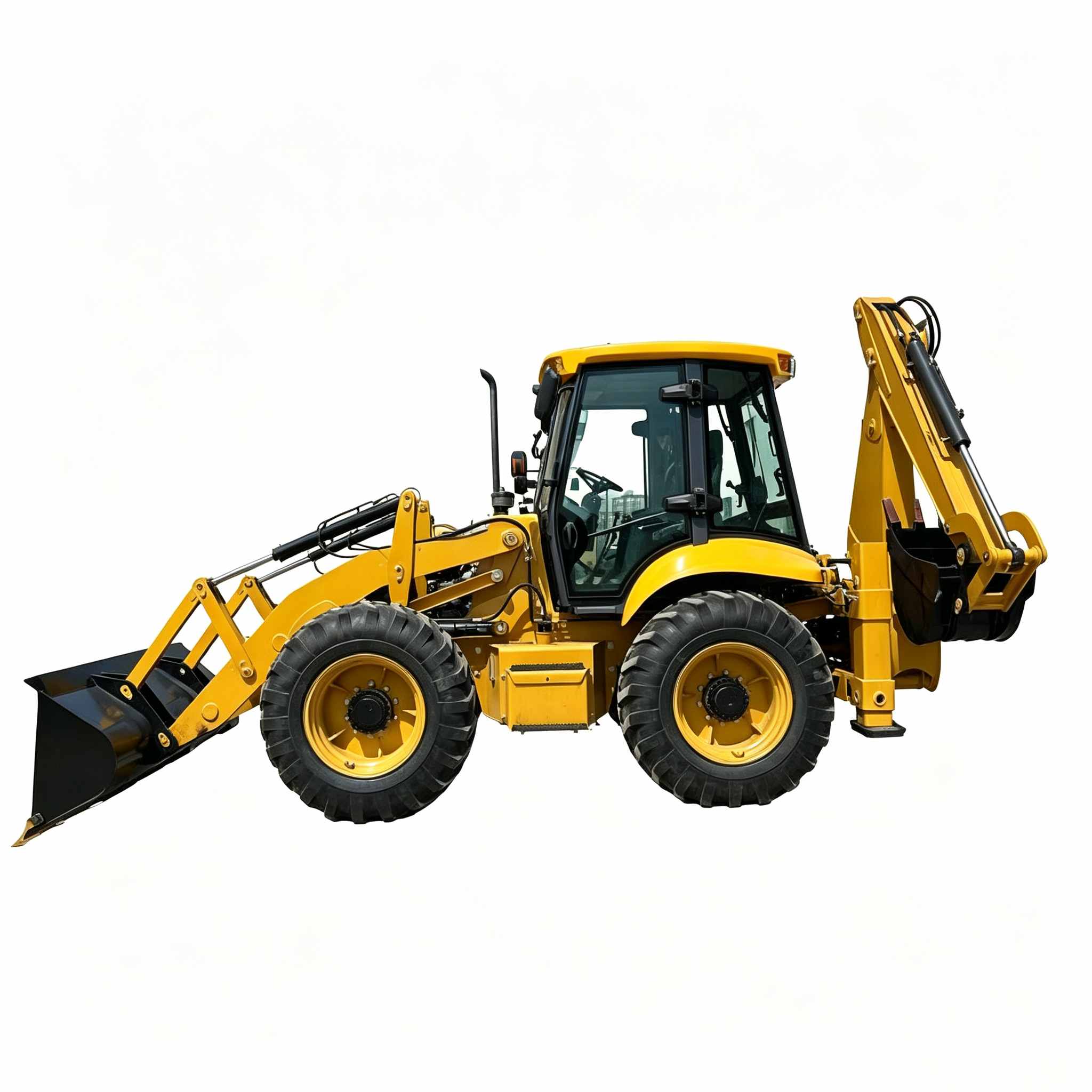

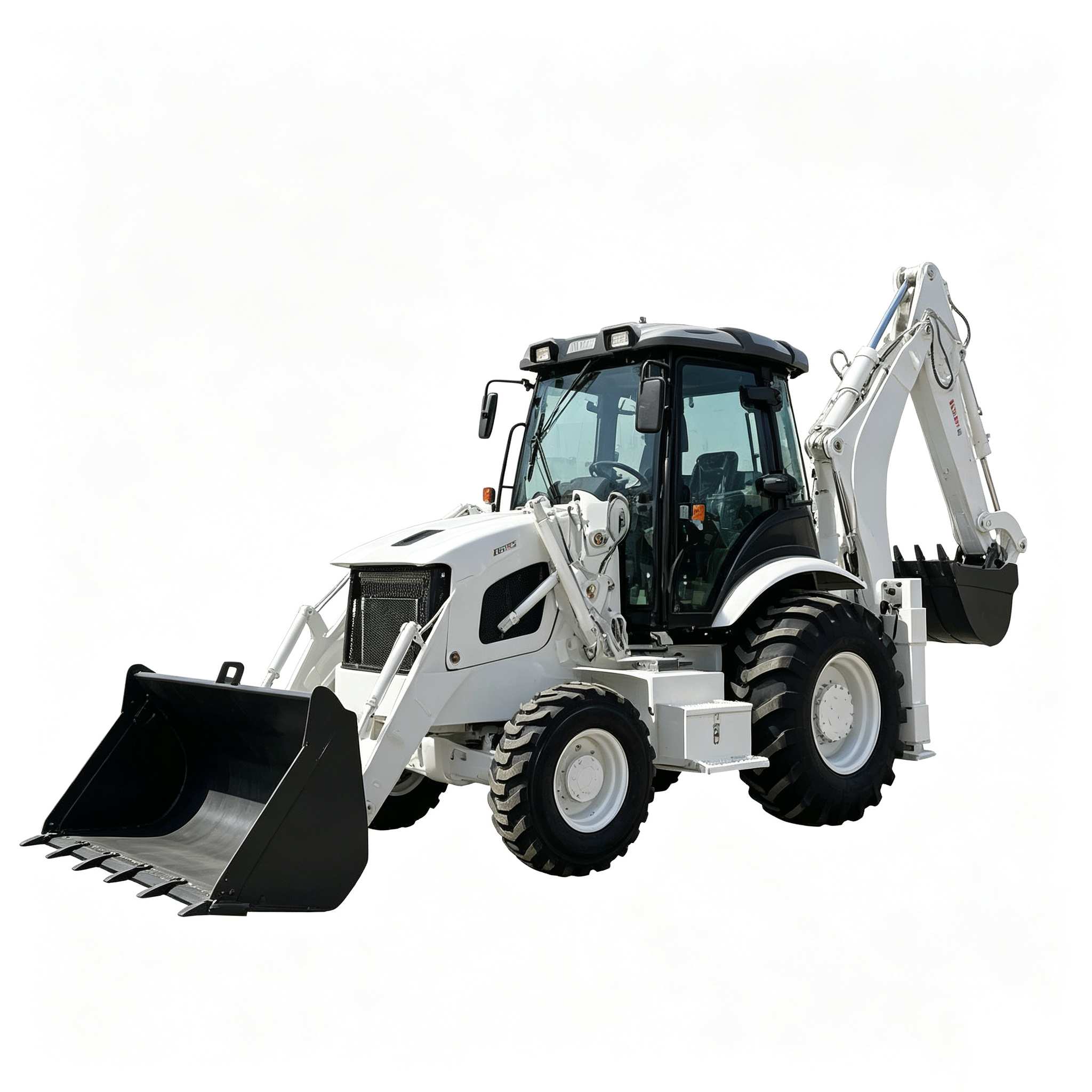

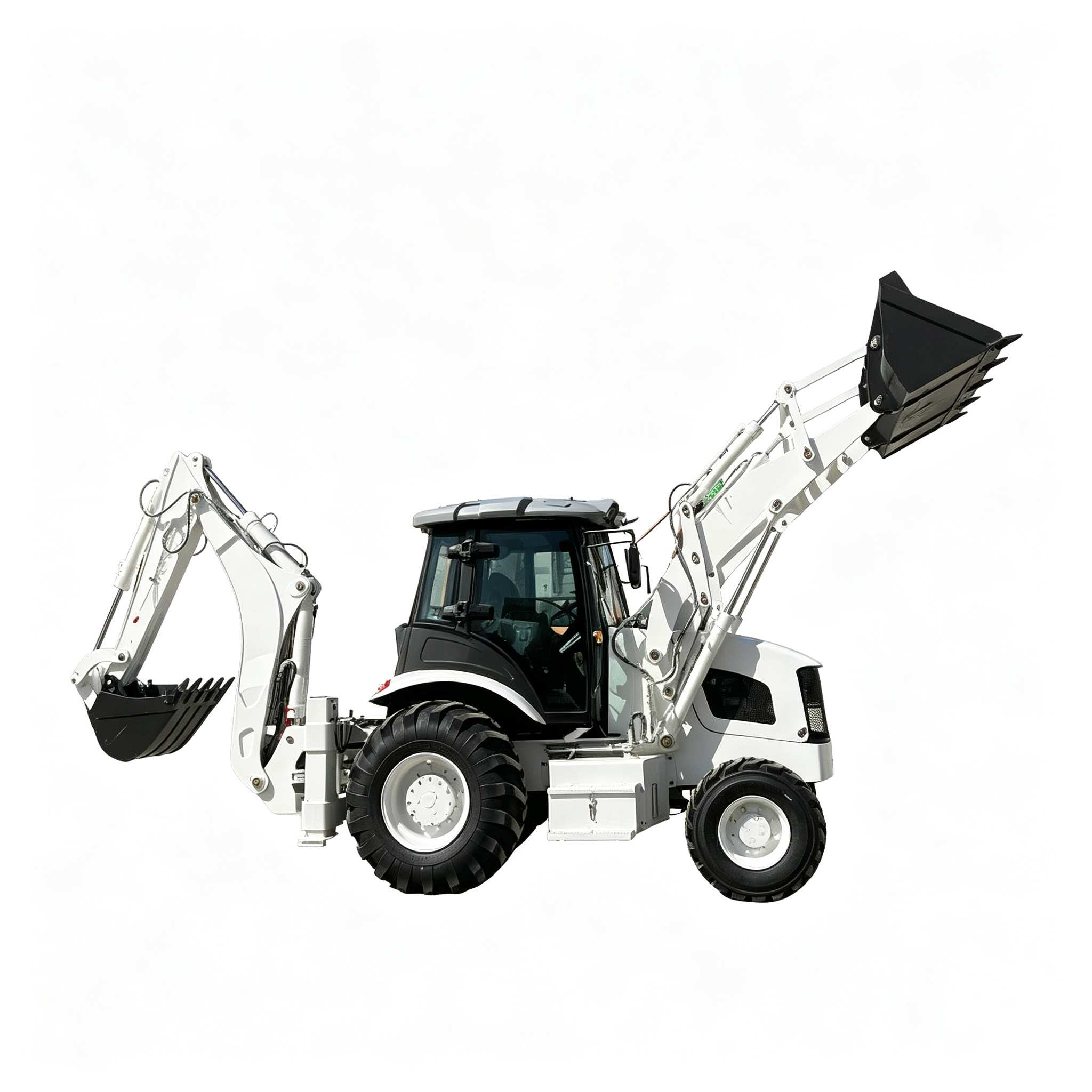

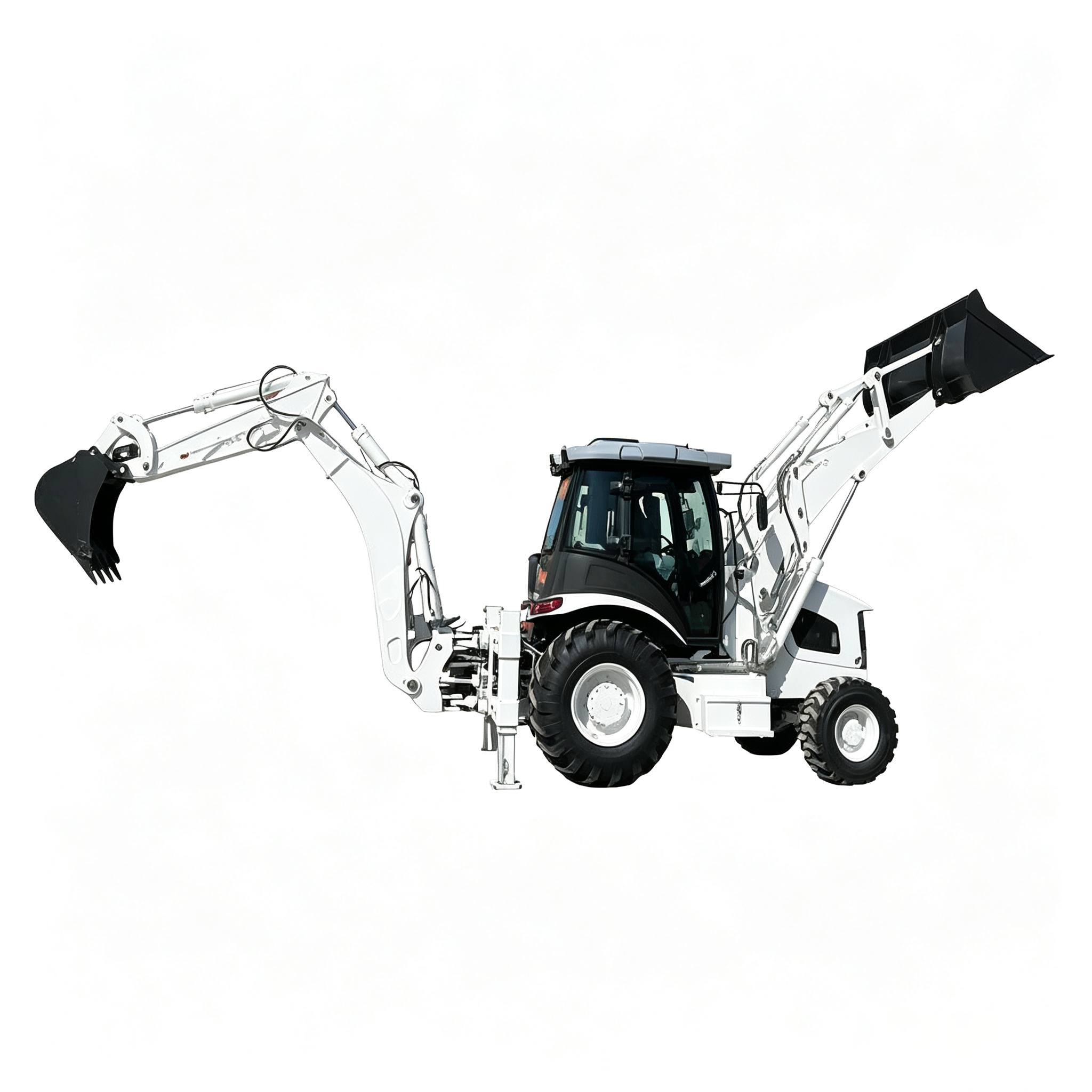

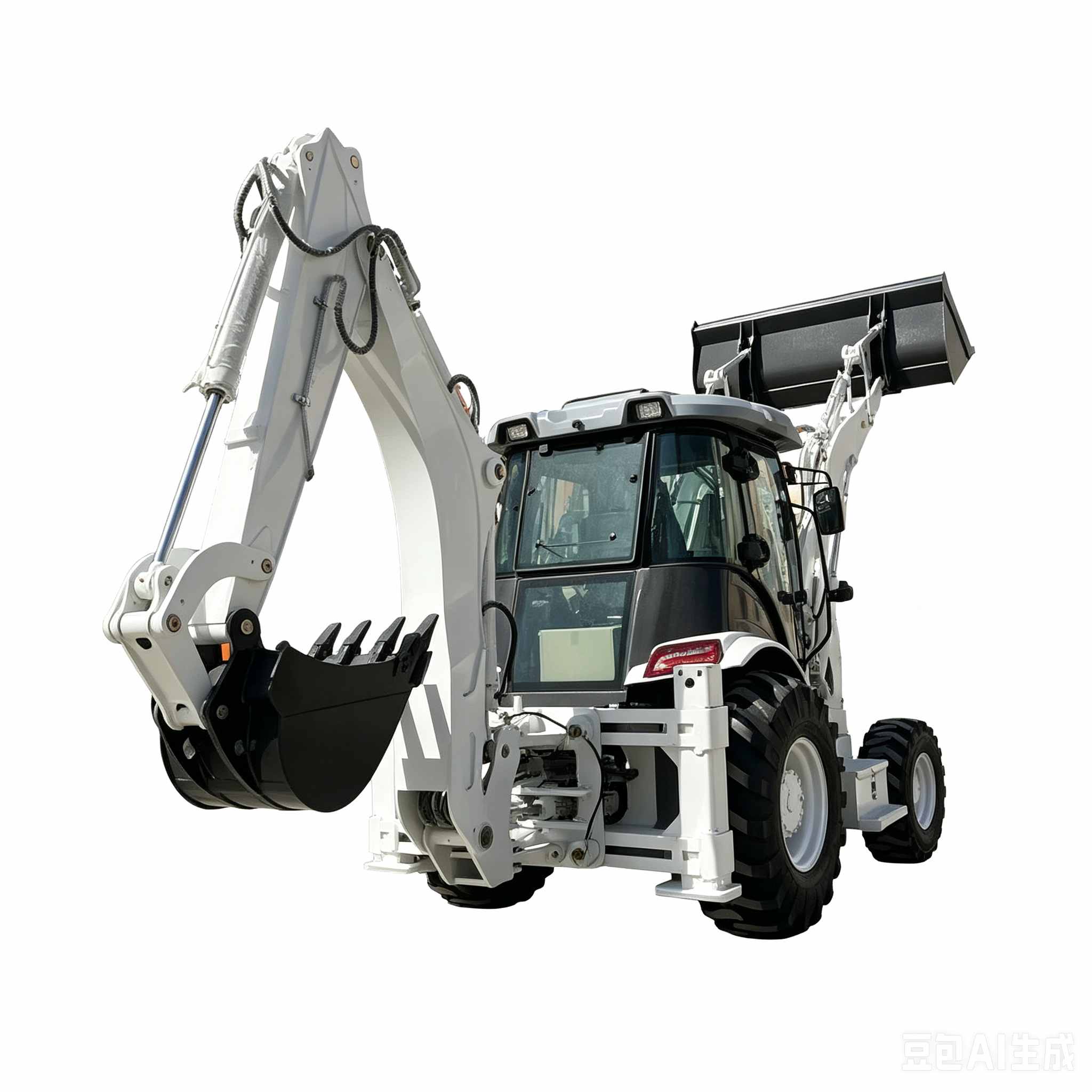

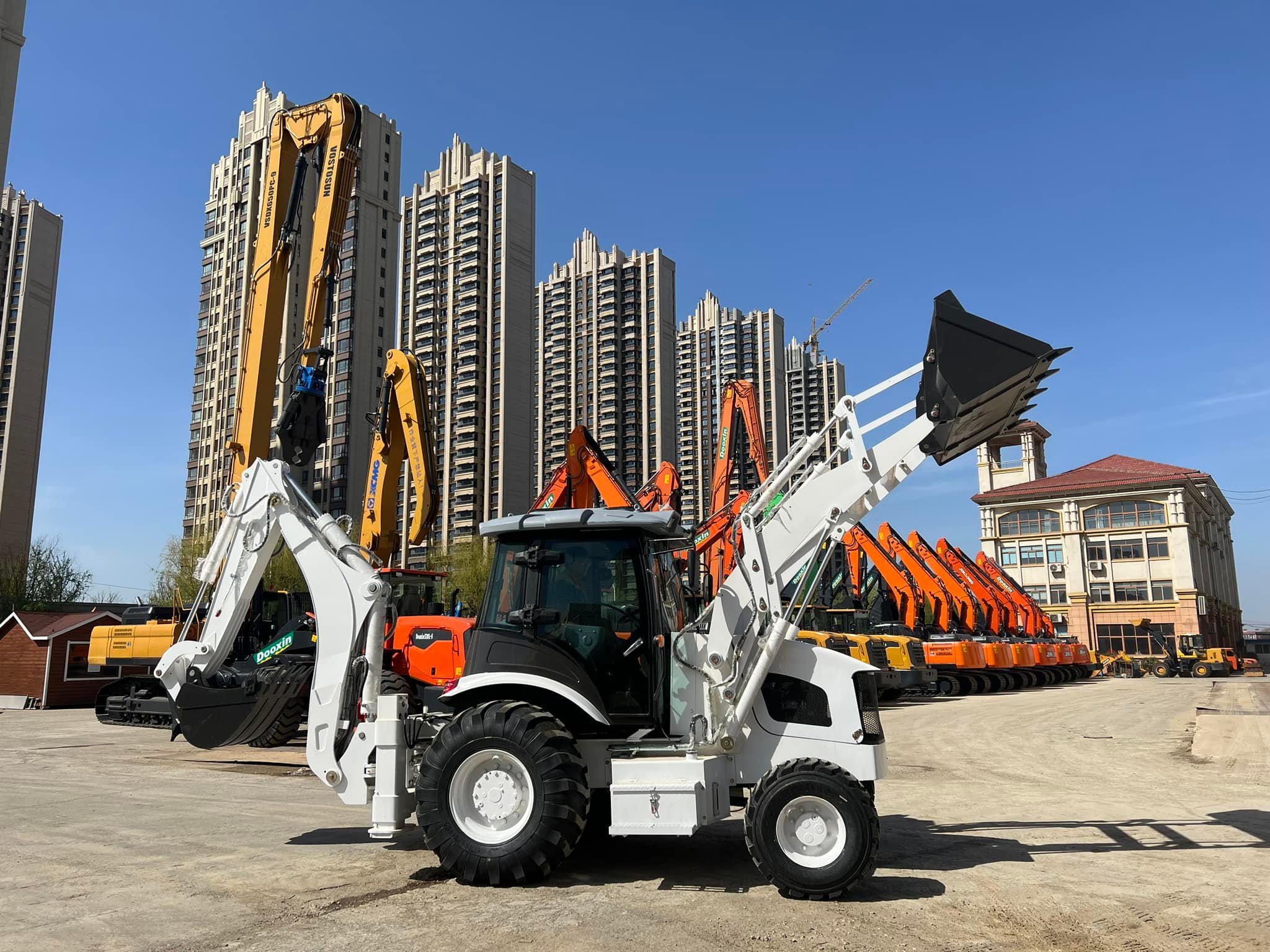

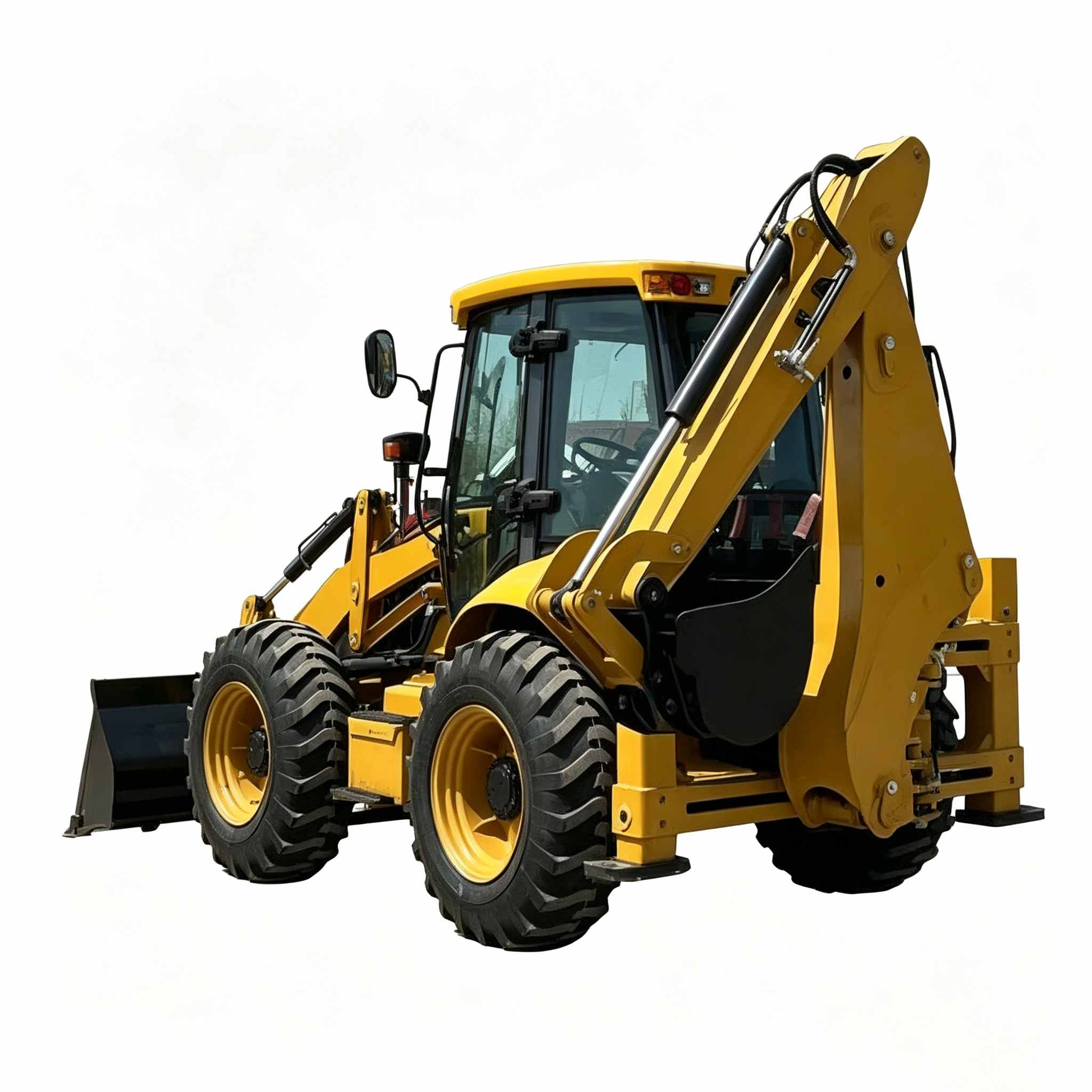

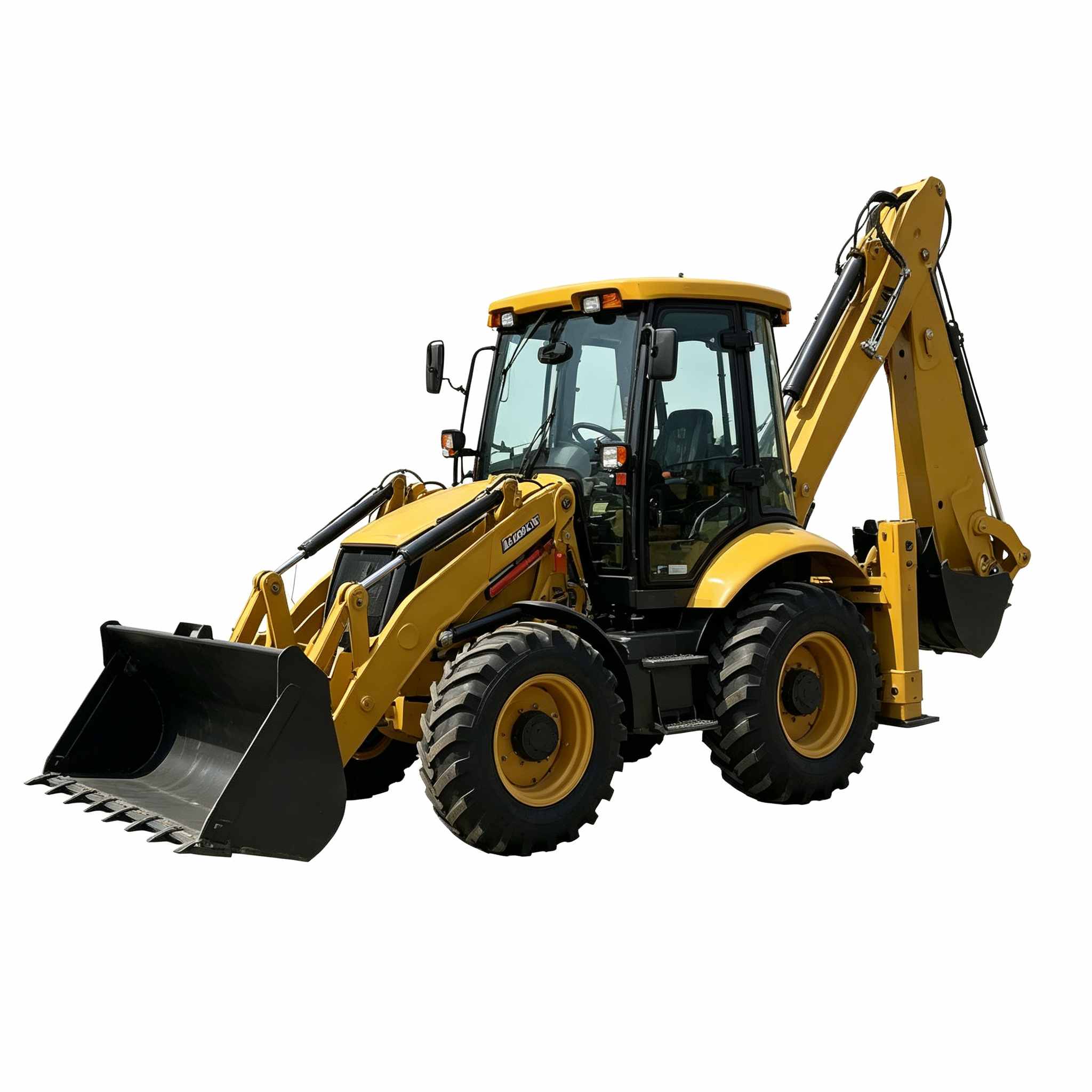

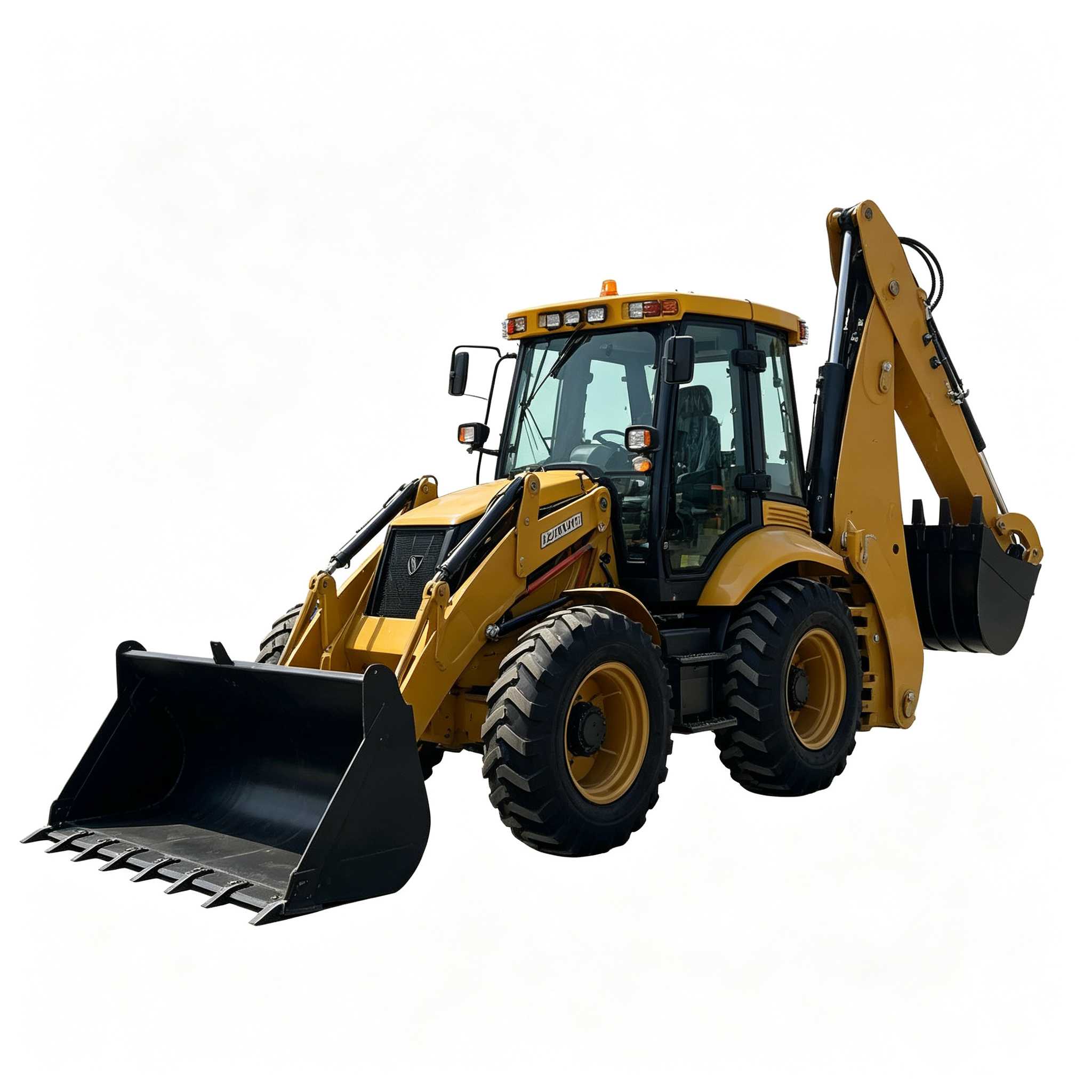

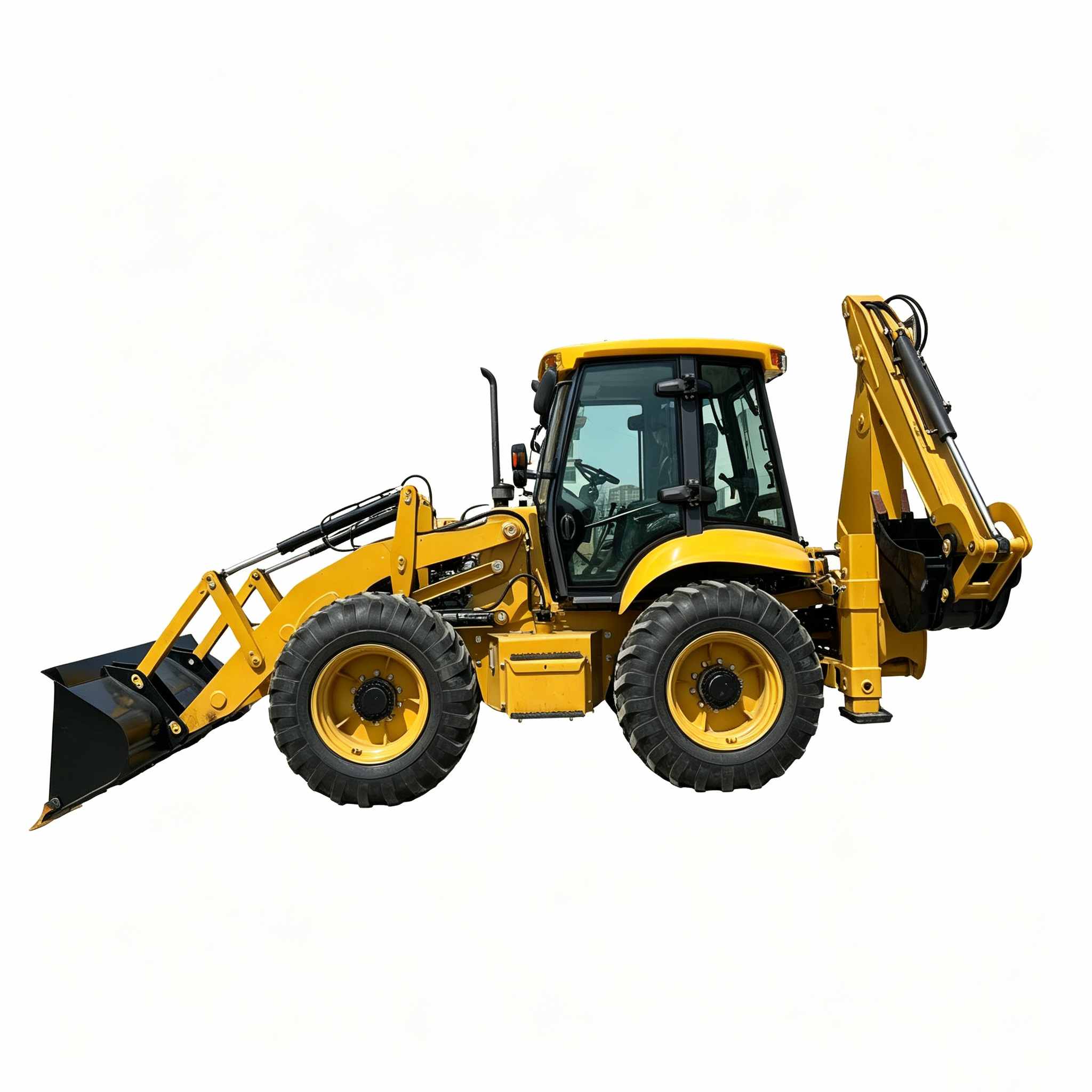

The DX820 Backhoe Loader from Everglory Machinery is a heavy-duty 4WD two-in-one construction machine integrating front loading and rear digging functions. Equipped with high-power 92KW Yuchai engine, its operating weight reaches 10050KG and rated load is 2500KG with a standard 1.2m³ front bucket. It is widely applied to large municipal projects, mine earthmoving, large-scale farm operations, road infrastructure and landscaping renovation. Standard quick coupler is equipped to match over 10 attachments including hydraulic hammer, auger drill and log grapple. One machine can finish digging, loading, crushing, drilling and material handling work, greatly cutting customers’ equipment procurement cost, which is the preferred heavy-duty backhoe loader for overseas large engineering contractors.

Four Core Advantages

1. Powerful Yuchai Engine, Stable Heavy-Duty Output

Adopt Yuchai YC4A105Z-T20 diesel engine with rated power 92KW/2200r/min, sufficient power reserve without power attenuation during climbing and heavy digging, excellent fuel efficiency and stable operation under high/low temperature and high altitude environments. Matched with self-developed DOOXIN gearbox with 4 forward & 4 reverse gears for smooth transmission to meet different light and heavy working demands.

2. Large Capacity Bucket, Excellent Digging Performance

1.2m³ large-capacity front bucket with 2500KG rated load greatly improves transfer efficiency of sand and soil. Rear 0.3m³ digging bucket delivers 49.8KN maximum breakout force with optional max digging depth 3936/4890mm, easily completing deep trench and foundation excavation. Max dumping height reaches 3080mm to fit large trucks, sensitive hydraulic response ensures fast lifting and dumping cycles.

3. Carraro Heavy-Duty Axle & Wide Off-Road Tyres

Imported Carraro professional engineering axle with strong load capacity, impact resistance and long service life. Equipped with wide 16.9-28 off-road tyres and 4-wheel drive design for outstanding trafficability on muddy, gravel and soft construction ground. The minimum turning radius is 6950mm, balancing heavy machine weight and flexible steering on job sites.

4. Full Series Replaceable Attachments & Humanized Operation

Standard quick coupler supports fast switch of more than 10 attachments including hydraulic hammer, auger drill, 4-in-1 bucket, log fork and snow blade to cover all working scenarios. Wide panoramic sealed cabin offers unobstructed vision, shock-absorbing seat and single-hand pilot control to relieve long-shift fatigue. All maintenance oil ports and filter elements are externally arranged for time-saving inspection and service, reducing downtime loss.

4WD heavy-duty two-in-one loader & excavator integrated design

92KW high torque Yuchai engine, stable power and low fuel consumption

1.2m³ large front bucket + optional 4890mm ultra-deep digging depth

Import Carraro heavy load axle, strong impact resistance and long service life

16.9-28 wide off-road tires, excellent all-terrain trafficability

Standard quick coupler, compatible with 12 kinds of working attachments

Compact body with reasonable turning radius, flexible for large construction sites

External maintenance ports, convenient daily inspection and less downtime

Panoramic sealed cabin with shock-absorbing seat to ease long-hour operation fatigue

4 forward & 4 reverse independent gearbox, smooth power transmission

Everglory Machinery DX820 heavy-duty backhoe loader adopts 4-wheel drive integrated loading and digging structure, matched with 92KW Yuchai high-torque engine to maintain stable power output under long-term heavy-load operation while controlling fuel consumption. It is equipped with a large 1.2m front loading bucket and supports a maximum digging depth of 4890mm, greatly boosting the efficiency of bulk material transportation and deep foundation excavation. Imported Carraro heavy-duty axle and 16.9-28 oversized off-road tires provide outstanding bearing capacity and cross-country performance to adapt to mine, muddy and gravel working grounds. The factory-fitted quick coupler can rapidly switch 12 different attachments to complete crushing, drilling, snow removal and other operations, cutting extra equipment purchase costs. All maintenance parts are externally arranged for easy daily servicing, and the wide panoramic sealed cabin with ergonomic pilot control effectively relieves operator fatigue during all-day work.
