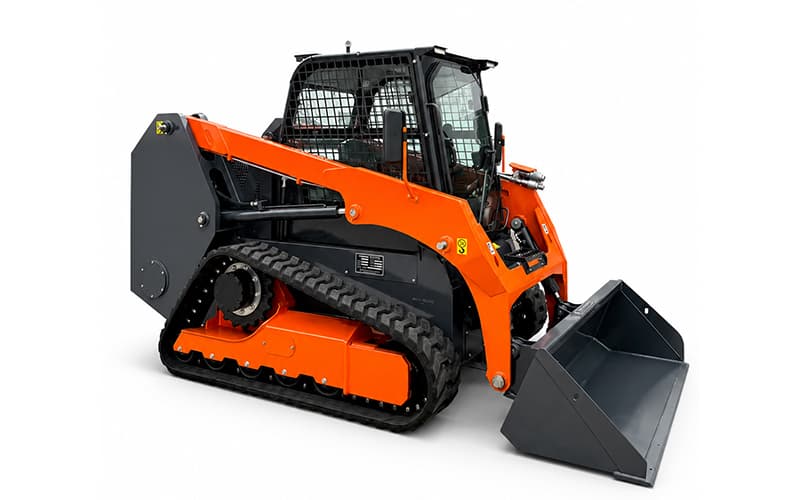

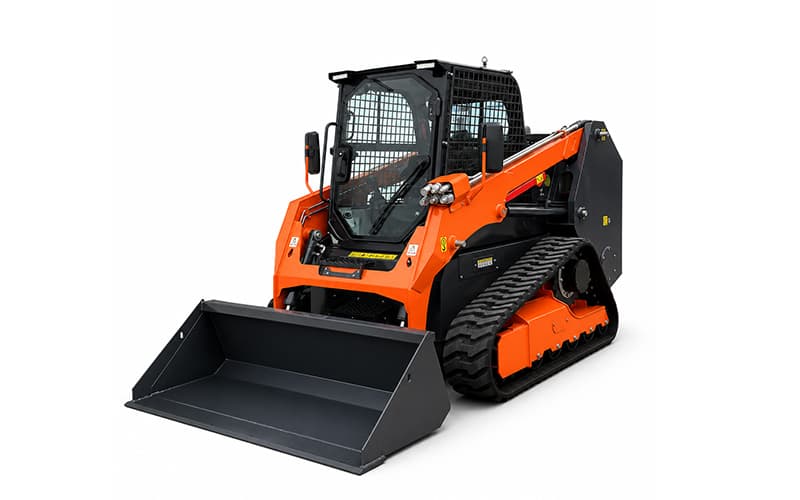

TR2200 Skid Steer Loader

The GLORYMAX TR2200 Skid Steer Loader from Everglory Machinery is a heavy‑duty rubber‑track compact loader designed for superior traction and stability on soft, muddy, or uneven terrain. Powered by a YANMAR diesel engine delivering up to 61.3 kW (National III) or 53.7 kW (Euro5/EPA), the TR2200 combines high torque with low fuel consumption. With an operating weight of 4240 kg and a rated load of 1100 kg, it handles demanding applications such as excavation, grading, material handling, and site preparation. The standard hydraulic flow of 85 L/min (optional 135 L/min high flow) powers a wide range of attachments – buckets, breakers, augers, grapples, sweepers, and more – via the universal quick‑attach system. The machine features pilot hydraulic controls for smooth operation, a comfortable cabin with excellent visibility, and a robust undercarriage with long track contact length (1600 mm) and 230 mm ground clearance for stable performance on rough ground. Dual‑speed travel (6/9 km/h) allows quick repositioning. Every TR2200 undergoes rigorous factory inspections to ensure reliability and long service life. Whether you are in construction, agriculture, forestry, or rental, the TR2200 delivers outstanding productivity and value.

1. High‑Traction Rubber Track Undercarriage

The TR2200 is equipped with a durable rubber track system featuring a 1600 mm track ground contact length and 230 mm ground clearance. This design provides exceptional flotation on soft soil, mud, and snow, reduces ground pressure, and ensures stable operation on slopes and uneven terrain – ideal for landscaping, farming, and construction sites where wheeled loaders struggle.

2. High‑Flow Hydraulic System (Optional 135 L/min)

With a standard 85 L/min auxiliary flow and an optional 135 L/min high‑flow configuration, the TR2200 can power high‑demand attachments such as large augers, planers, mulchers, and cold planers. This versatility lets you tackle a wider range of jobs with a single machine, maximizing return on investment.

Model	TR2200 Skid Steer Loader
Operating weight	4240 kg
Rated load	1100 kg
Engine power (Euro5/EPA)	53.7 kW
Standard hydraulic flow	85 L/min
Overall length (with bucket)	3800 mm
Overall width (without bucket)	1920 mm
Height of overhead guard	2140 mm
Ground clearance	230 mm
Fuel tank capacity	100 L
Bucket capacity (flat pack)	0.44 m³
