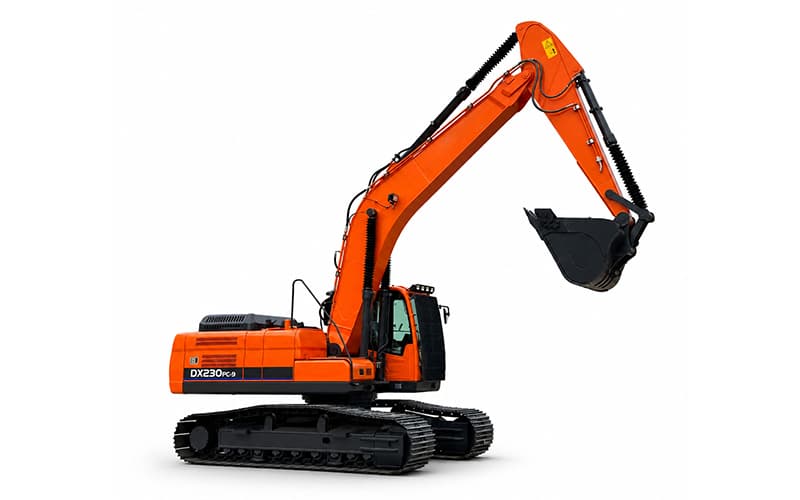

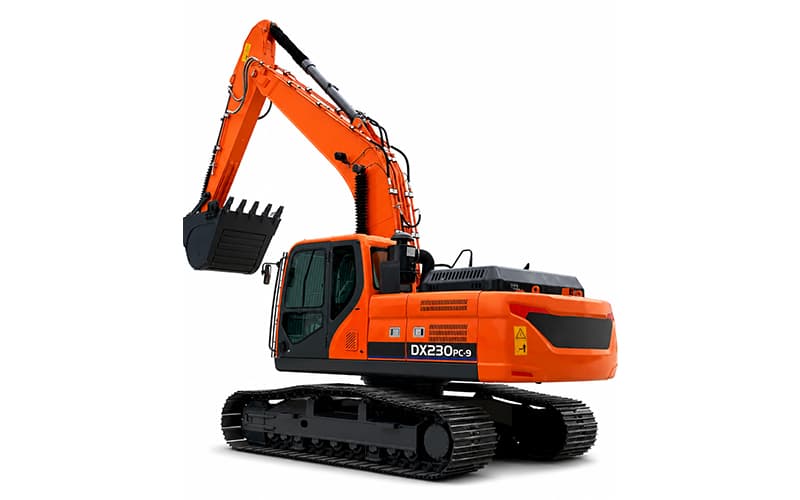

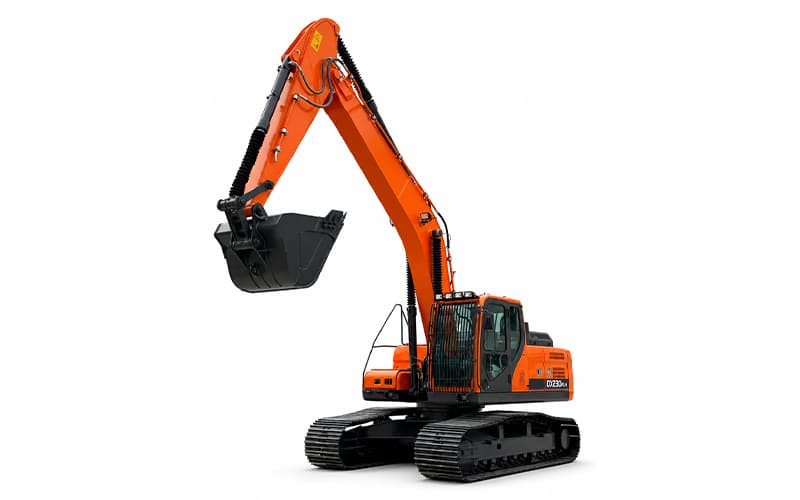

DX230PC-9 21.6 Tons Crawler Excavator

The DX230PC 23 Ton Crawler Excavator from Everglory Machinery is a heavy-duty excavation machine built for large-scale construction, mining, quarrying, and infrastructure projects. Powered by a fuel-efficient ISUZU or Cummins engine (128-135 kW), this excavator delivers strong digging force and smooth operation. The hydraulic system features a Kawasaki main pump and Parker or Kawasaki control valve (optional), with travel and swing motors from advanced Korean brands, ensuring precise control and quick cycle times. With a bucket capacity of 1.2m³ and standard digging force of 144.1 KN, it handles tough materials like hard soil, rocks, and gravel with ease. Maximum digging depth reaches 6592mm, maximum digging radius 9873mm, and unloading height 6830mm, covering a wide range of applications. The high-strength frame provides excellent durability, while the 475mm ground clearance ensures good mobility on rough terrain. Gradeability reaches 70%, making it reliable on slopes. The open engine hood design allows convenient daily maintenance, and effective protection against soil and rock mixing reduces wear and extends service life. For contractors seeking a powerful, reliable, and easy-to-maintain 23-ton excavator, this model offers outstanding performance and long-term value.

1. Premium Hydraulic System with Reliable Components

Equipped with a Kawasaki main pump and optional Parker or Kawasaki control valve, this excavator delivers smooth, responsive, and efficient hydraulic performance. The advanced Korean travel and swing motors further enhance durability and precision, ensuring high productivity even in demanding conditions.

2. High-Strength Frame with Excellent Terrain Adaptability

The reinforced undercarriage and boom structure provide exceptional durability in rock and heavy-soil environments. With 475mm ground clearance and 70% gradeability, the machine performs reliably on uneven terrain, slopes, and job sites where mobility is critical.

Model	DX230PC 23 Ton Crawler Excavator
Operating weight	21.6 T
Bucket capacity	1.2 m³
Engine power	128-135 kW
Standard digging force	144.1 KN
Maximum digging depth	6592 mm
Maximum digging radius	9873 mm
Maximum unloading height	6830 mm
Gradeability	70%
Ground clearance	475 mm
Track shoe width	600 mm
