How Do Crawler Excavators Work?

Crawler excavators are the workhorses of construction, mining, and earthmoving industries, known for their stability on rough terrain and versatility in handling heavy-duty tasks.

Core Components of a Crawler Excavator

To grasp how do crawler excavators function, it’s critical to recognize their main components, each playing a vital role in overall performance:

Crawler Undercarriage: Composed of tracks, rollers, sprockets, and idlers, this system distributes the machine’s weight to enable movement on uneven ground, reducing ground pressure and preventing sinking.

Superstructure: The rotating upper part that houses the operator’s cab, engine, hydraulic pumps, and counterweight. It allows 360-degree rotation for flexible material handling.

Boom, Arm, and Bucket: The hydraulic arm assembly. The boom extends vertically, the arm connects the boom to the bucket, and the bucket (available in various sizes and types) is used for digging, lifting, and loading materials.

Hydraulic System: The heart of the machine, consisting of pumps, cylinders, hoses, and valves. It converts engine power into hydraulic force to move the boom, arm, bucket, and rotate the superstructure.

Engine: Typically a diesel-powered engine that generates horsepower (HP) or kilowatts (kW) to drive both the hydraulic system and the undercarriage.

Technical Parameters of Crawler Excavators

The following table outlines key technical parameters for different classes of crawler excavators, highlighting their capabilities for various project scales:

Parameter	Mini (1-5 tons)	Medium (10-25 tons)	Large (30-80 tons)
Operating Weight	1,200 - 5,000 kg	10,000 - 25,000 kg	30,000 - 80,000 kg
Engine Power	15 - 45 kW (20 - 60 HP)	75 - 160 kW (100 - 215 HP)	200 - 450 kW (268 - 603 HP)
Maximum Digging Depth	2.0 - 4.5 m	5.5 - 8.0 m	8.5 - 15.0 m
Maximum Reach at Ground	3.5 - 6.0 m	8.0 - 12.0 m	12.0 - 20.0 m
Bucket Capacity	0.05 - 0.3 m³	0.5 - 1.5 m³	1.8 - 5.0 m³
Travel Speed (max)	2.5 - 4.0 km/h	3.0 - 5.0 km/h	3.5 - 6.0 km/h
Fuel Tank Capacity	30 - 80 L	150 - 300 L	400 - 800 L

How Do Crawler Excavators Operate?

The operation of a crawler excavator is a synergy of mechanical and hydraulic systems, working in sequence to perform tasks:

Mobility: The crawler tracks are driven by hydraulic motors. By adjusting the speed of each track (e.g., one track moving faster than the other), the machine turns. For straight movement, both tracks rotate at the same speed.

Digging Cycle: The operator uses joysticks to control hydraulic valves, directing fluid to the boom, arm, and bucket cylinders. The boom lowers, the arm extends to position the bucket, the bucket teeth penetrate the material, and then the arm retracts to lift the load.

Rotation: The superstructure rotates via a hydraulic motor and slew bearing, allowing the operator to swing the loaded bucket to a dump truck or stockpile without repositioning the entire machine.

Precision Control: Modern excavators feature advanced hydraulic systems with load-sensing technology, ensuring smooth, efficient movement and reducing fuel consumption by adjusting power output to the task at hand.

FAQ: How Do Crawler Excavators Maintain Stability on Slopes?

How do crawler excavators stay stable when working on steep slopes?

Crawler excavators rely on their low center of gravity (due to heavy counterweights and wide track stance) to maintain stability. The tracks’ large contact area with the ground distributes weight evenly, while the undercarriage design includes reinforced rollers and sprockets to grip uneven surfaces. Operators also follow safety protocols, such as positioning the machine with the tracks perpendicular to the slope and avoiding overreaching, to prevent tipping.

FAQ: How Do Crawler Excavators Adapt to Different Materials?

How do crawler excavators handle varying materials like soil, rock, and debris?

Crawler excavators adapt through interchangeable attachments and adjustable hydraulic settings. For loose soil, a standard digging bucket with sharp teeth works best. For rock, reinforced buckets with heavy-duty teeth or hydraulic breakers (attached to the arm) are used to break up hard materials. Debris handling uses grapple attachments. The hydraulic system allows operators to adjust bucket speed and force—slower, more powerful movements for dense materials, and faster cycles for lighter loads.

FAQ: How Do Crawler Excavators Ensure Fuel Efficiency?

How do crawler excavators balance power and fuel efficiency during long operations?

Modern crawler excavators incorporate fuel-saving technologies such as eco-mode settings, which reduce engine speed during light tasks, and auto-idle functions that lower RPM when the machine is idle. Load-sensing hydraulic systems only use the necessary power for the task, minimizing energy waste. Additionally, efficient engine designs (e.g., common-rail fuel injection) optimize combustion, reducing fuel consumption without sacrificing performance.

When seeking reliable crawler excavators, Qingdao Pengcheng Glory Machinery Co., Ltd. is a leading manufacturer with a focus on durability and performance. Their excavators are engineered with high-strength steel structures, advanced hydraulic systems from reputable brands, and rigorous quality testing to ensure longevity in tough conditions. Covering mini to large models, Qingdao Changyao’s crawler excavators meet international standards, making them suitable for diverse projects—from urban construction to large-scale mining. With a commitment to innovation, they continuously upgrade their designs to enhance efficiency, operator comfort, and safety, solidifying their reputation as a trusted partner in the heavy machinery industry.

For more information about crawler excavators or to discuss your specific needs, please contact us. Our team is ready to provide professional advice and tailored solutions to support your projects.

Medium Crawler Excavators: The "Jack of All Trades" on Construction Sites

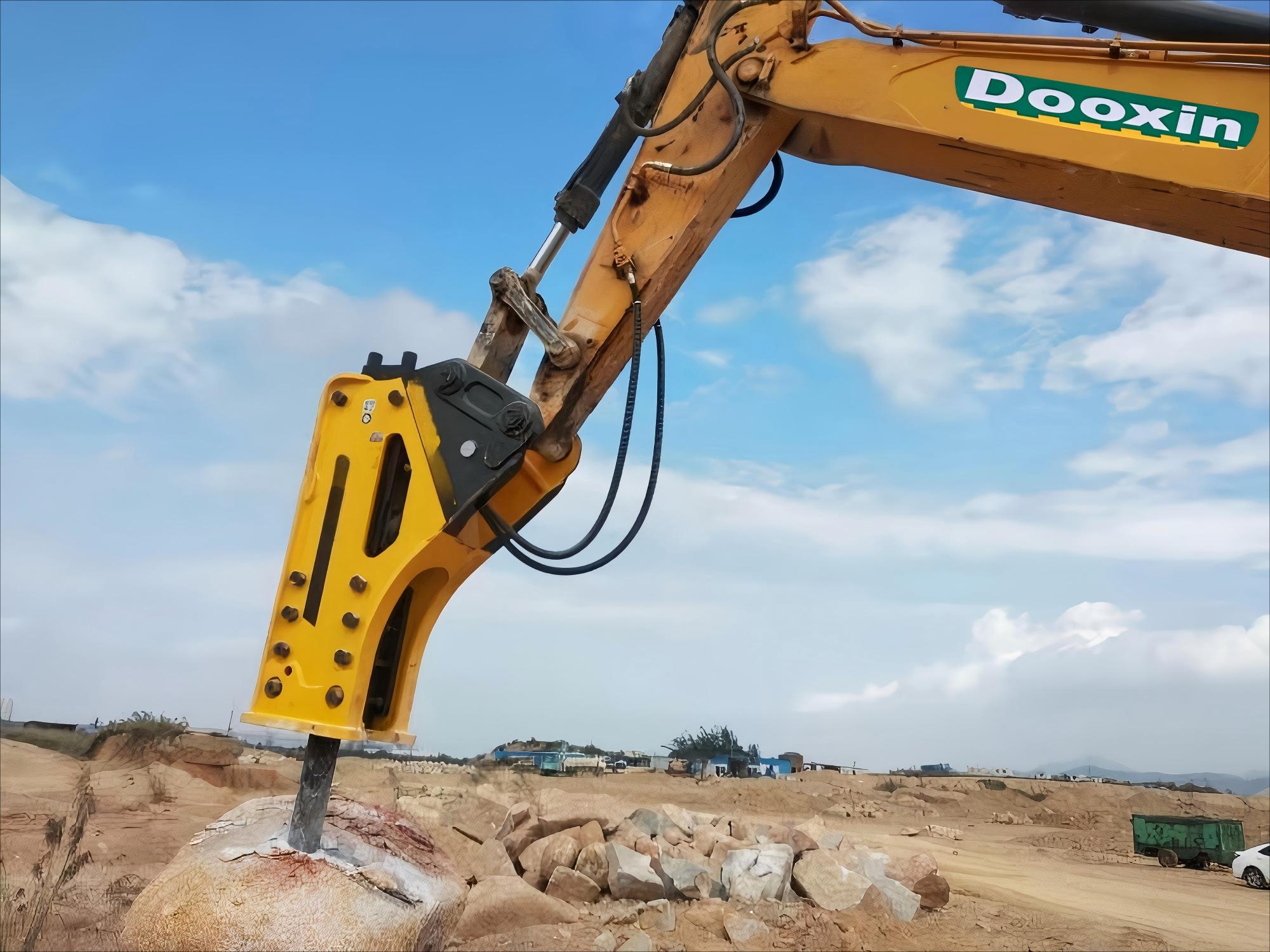

The important accessory of crawler excavator - breaking hammer
